GLP Nexus Line 48 Rgbww Leds,Battery Powered Iq.Mesh, Ip65

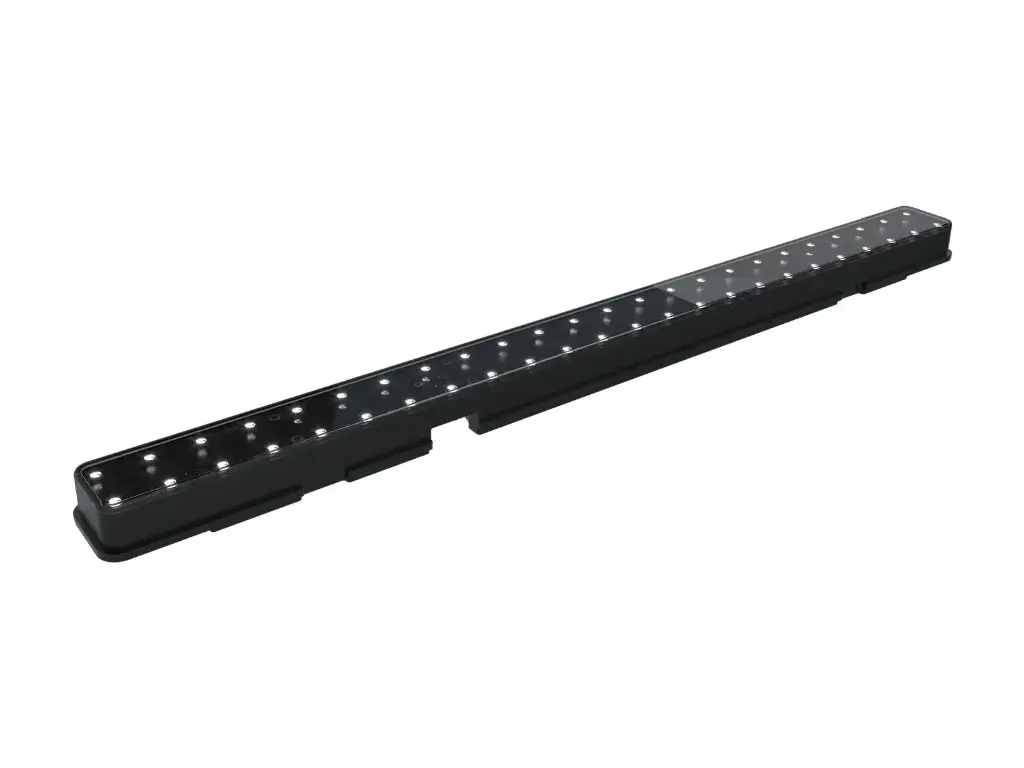

The Nexus Line– a wireless, battery-powered RGBW LED panel with a size of 500 x 41.5mm, designed for DJs, professional users, bars, weddings, and events. Equipped with 48 individually controllable RGBW pixels, the Nexus Line enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. Future expansions such as wireless DMX, Art-Net, and sACN modules ensure seamless integration into professional lighting networks. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations.

Light Source

Type	RGBW LED
Count	48 pixels
Light Source Lifetime	50,000 h
LED Refresh Rate	2,000 Hz

Dynamic Effects

Dimmer / Shutter

0 – 100%, 8 bit

Control & Programming

Protocols	GLP iQ.Mesh
Protocols via Nexus Bridge Tx	DMX (USITT DMX512-A)
Dimming Curves	square
Other Control Options	single button on rear \| control apps
Software Update	GLP iQ.Control App \| Vision Control App

Battery Specifications

Power Input	5 – 12 V, max. 2 A
Power Draw	max. 10 W

Connections

Power Connection	USB-C
Signal Connection	Bluetooth \| glp-iq-mesh

Construction

Housing Color	Black
Housing Material	plastic
Protection Rating	IP65
Construction Features	mounting system \| changeable filter

Electrical Specifications

Power Input	5 – 12 V, max. 2 A
Power Draw	max. 10 W
Battery capacity	4,400 mAh
Charging cable (incl.)	USB-C 90° angled

Installation

Mounting
Orientation	any
Location	Indoor temporary \| Indoor permanent

Thermal Specifications

Cooling	no cooling
min. Ambient Temperature	5 °C / 40 °F
max. Ambient Temperature	45 °C / 115 °F

Dimensions & Weight

Height (with filter)	41.2 mm / 1.62 in
Height (without filter)	25.2 mm / 9.92 in
Width	500 mm / 19.69 in
Depth	41.5 mm / 1.63 in
Weight (with filter)	0.49 kg / 1.08
Weight (fixture only)	0.36 kg / 0.79 lbs
