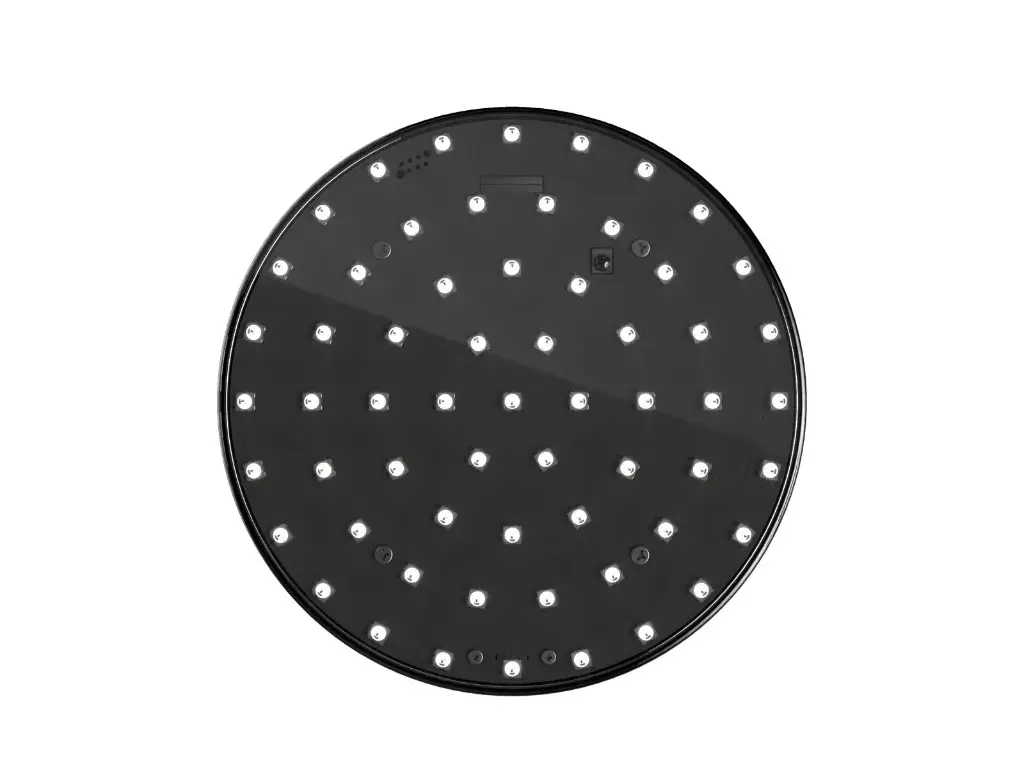

GLP Nexus Circle 63 Rgbww Leds, Battery Powered Iq.Mesh, Ip65

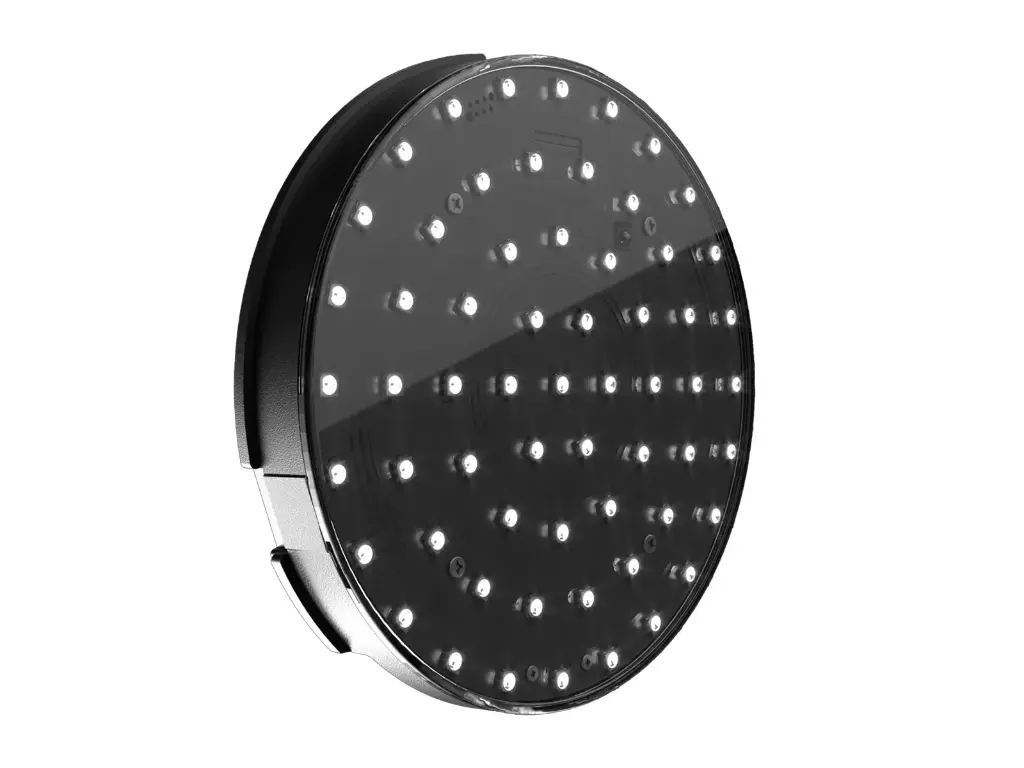

The Nexus Circle – a wireless, battery-powered RGBW LED panel with a diameter of 166.7 mm, designed for DJs, professional users, bars, weddings, and events. Equipped with 63 individually controllable RGBW pixels, the Nexus Circle enables precise pixel mapping and dynamic effect programming. Control is provided via the GLP iQ.Control app or Vision Control App for flexible and intuitive operation.

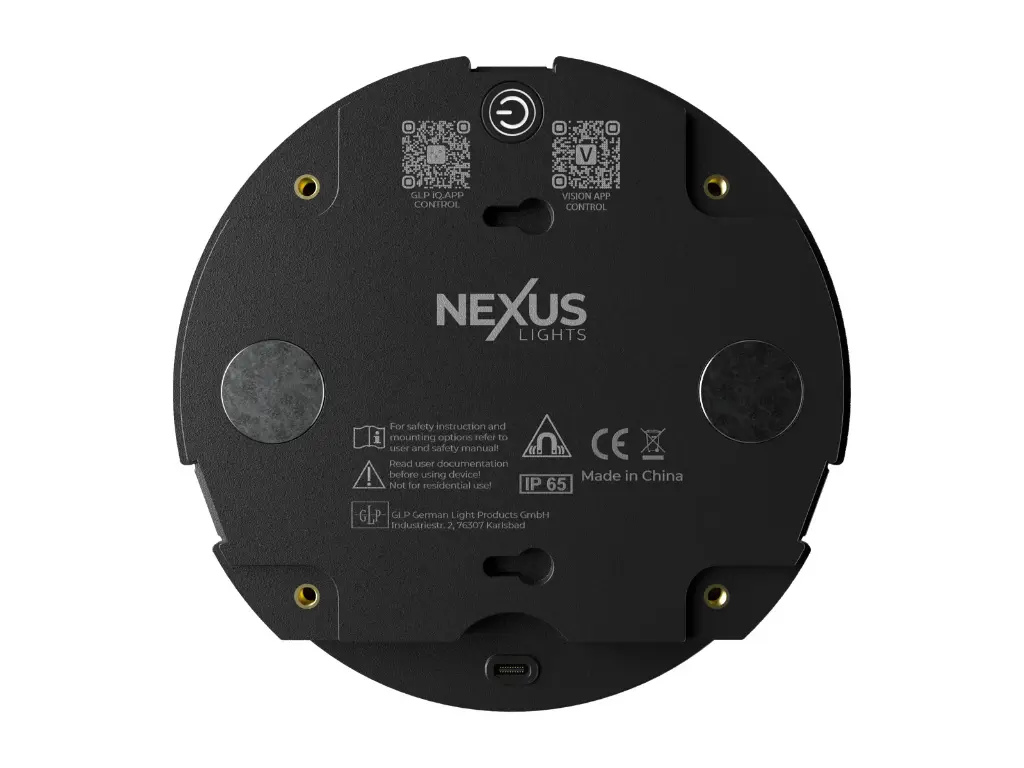

The robust IP65-rated housing offers magnetic mounting options as well as integrated suspension points for quick and secure installation. A built-in cable channel allows neat routing of up to five USB-C power cables for continuous operation. Future expansions such as wireless DMX, Art-Net, and sACN modules ensure seamless integration into professional lighting networks. Nexus Lights combines innovative technology and modular designs – ideal for demanding lighting applications and creative installations

Light Source

Type	RGBW LED
Count	63 pixels
Light Source Lifetime	50,000 h
LED Refresh Rate	2,000 Hz

Protocols	GLP iQ.Mesh
Protocols via Nexus Bridge Tx	DMX (USITT DMX512-A)
Dimming Curves	square
Other Control Options	single button on rear \| control apps
Software Update	GLP iQ.Control App \| Vision Control App

Battery Specifications

Power Input	5 – 12 V, max. 2 A
Power Draw	max. 10 W

Connections

Power Connection	USB-C
Signal Connection	glp-iq-mesh

Construction

Housing Color	Black
Housing Material	plastic
Protection Rating	IP65
Construction Features	mounting system \| changeable filter

Electrical Specifications

Power Input	5 – 12 V, max. 2 A
Power draw	max. 10 W
Battery capacity	5,000 mAh
Charging cable (incl.)	USB-C 90° angled

Installation

Orientation	any
Location	Indoor temporary \| Indoor permanent

Thermal Specifications

Cooling	no cooling
min. Ambient Temperature	5 °C / 40 °F
max. Ambient Temperature	45 °C / 115 °F

Dimensions & Weight

Height (with filter)	41.2 mm / 1.62 in
Height (without filter)	25.2 mm / 0.99 in
Width	166.7 mm / 65.63 in
Depth	166.7 mm / 65.63 in
Weight (with filter)	0.43 kg / 0.95 lbs
Weight (fuxture only)	0.34 kg / 0.75 lbs

Manuals

Safety and warranty information outdoor fixtures

Rev: 2023-12-13

183 kB

Download

Fixture Libraries

GDTF Fixture

GDTF-Share

CAD Drawings

GLP Nexus Circle CAD Vectorworks

Rev: 2025-04-25

0.16 MB

Download

Data Sheets, Flyers, Marketing

GLP Nexus Circle Datasheet

Rev: 2025-11-27

0.19 MB

Download
