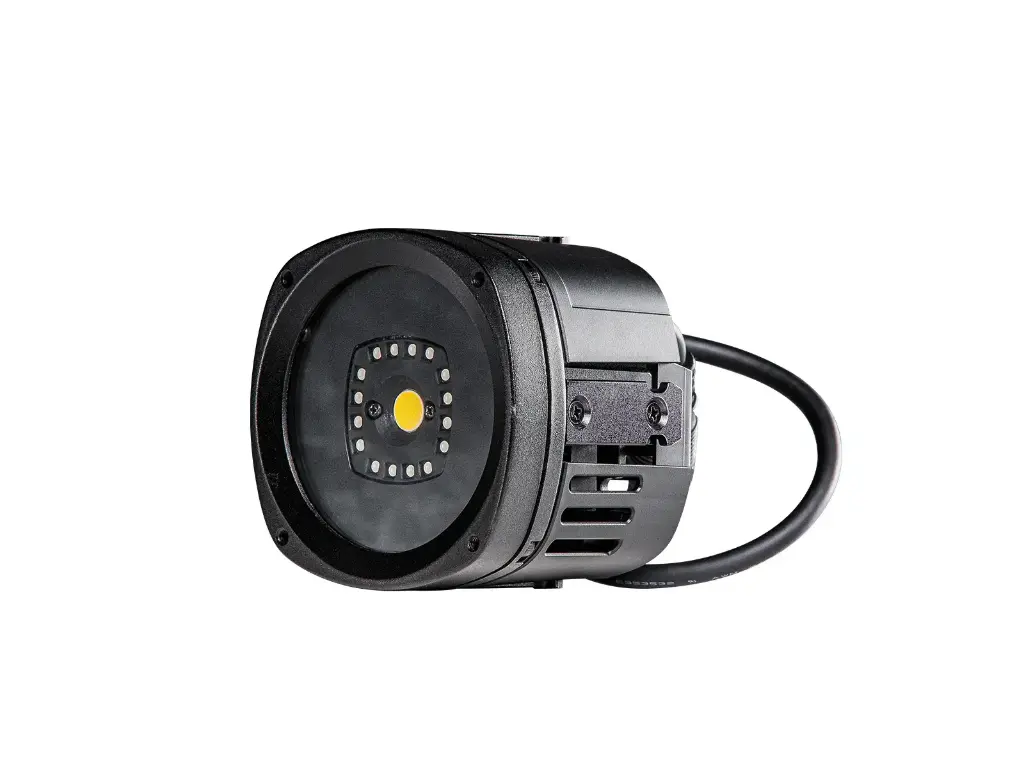

GLP KNV DOT

The KNV from GLP comes in four variants, the KNV Cube, KNV Arc, KNV Dot and KNV Line. Each housing can be used independently, or combined seamlessly to provide massive fixture design options.

Featuring 1, 5 or 25 high-powered pixels with white and RGB elements, each KNV is equally happy used as a pixel-mapped surface, strobe, blinder, washlight, and more.

$ 1,020.00 1020.0 AUD $ 1,020.00 Tax Included

$ 1,020.00 Tax Included

This combination does not exist.

Add to cart

Creative LEDs

Terms and Conditions

The KNV from GLP comes in four variants, the KNV Cube, KNV Arc, KNV Dot and KNV Line. Each housing can be used independently, or combined seamlessly to provide massive fixture design options.

Featuring 1, 5 or 25 high-powered pixels with white and RGB elements, each KNV is equally happy used as a pixel-mapped surface, strobe, blinder, washlight, and more.

IP54 housings allow KNV units to be used year round, in even the most inclement conditions and climates.

An included DMX pattern generator offers multiple effect libraries, with multiple controls creating a vast array of graphic options.

Light Source

Type	Power Pixel (RGB LED, Hyper White LED)
Count	1 (16x RGB, 1x Hyper White)
Power	RGB: 0.25 W \| Hyper White: 30 W
Lifetime	50,000 h

Optical System

Output	2,200 lm
max. beam angle	120°

Connections

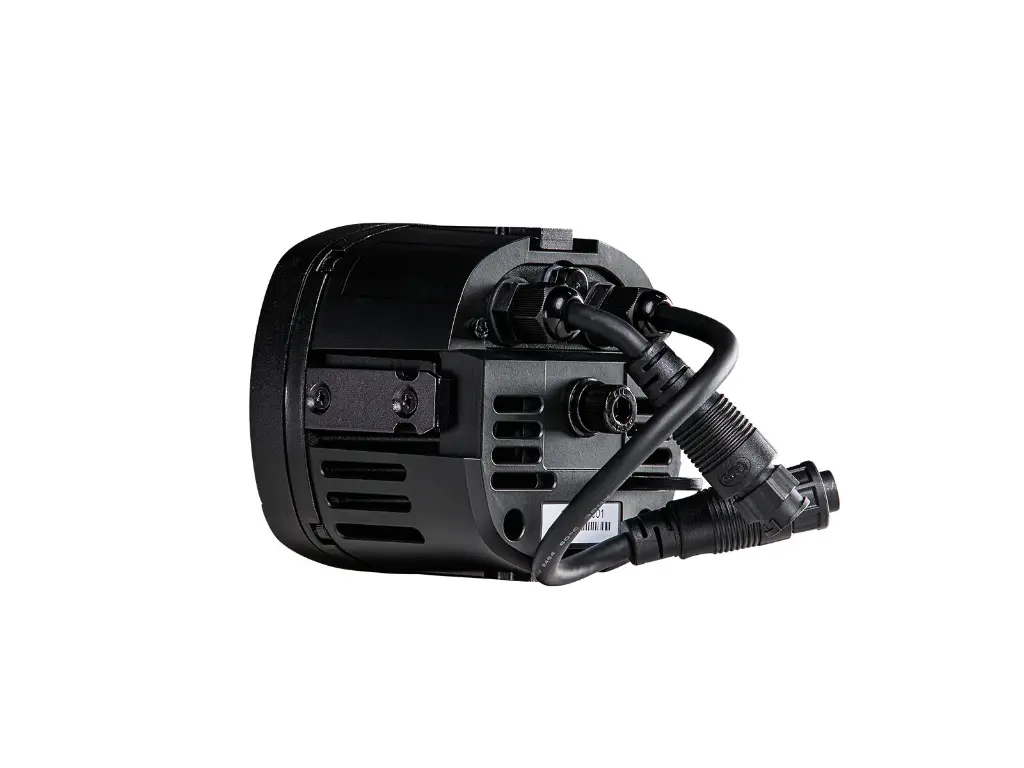

Power Input	Power-Data Cable ODS 6 PIN tail In/Out
Signal Connection	Power-Data Cable ODS 6 PIN tail In/Out

Construction

Housing Color	Black
Housing Material	high-impact flame-retardand thermoplastic
Protection Rating	IP54
Construction Features	modular system

Electrical Specifications

Power Supply Unit	external PSU
max. number of devices on one power line	5

Installation

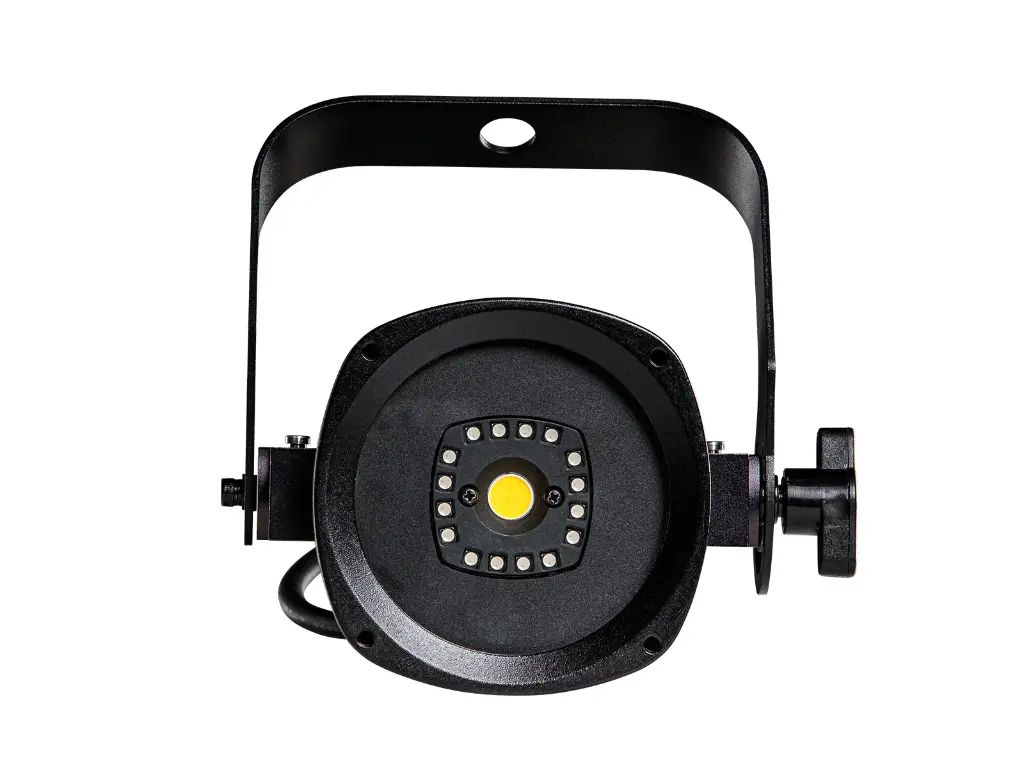

Mounting	eyelets for safety cable \| 1x M8 thread \| optional Bracket \| Mini TV Spigot
Orientation	any
Location	Dry \| Outdoor
min. distance to combustible materials	2.0 m
min. distance to illuminated surfaces	1.0 m

Thermal Specifications

Cooling	combined convection and forced air
min. Ambient Temperature	5 °C / 40 °F
max. Ambient Temperature	45 °C / 115 °F
Total Heat Dissipation	116 BTU/hr

Dimensions & Weight

Height	92 mm / 3.62 in
Width	92 mm / 3.62 in
Depth	76 mm / 2.99 in
Min. Center Distance	100 mm / 3.94 in
Weight (netto)	0.7 kg / 1.54 lbs

Manuals

GLP KNV Dot PSU Quick Start Safety Manual	Rev: 2020-03-25	4.74 MB	Download
GLP KNV Dot PSU Manual	Rev: 2021-08-24	3.75 MB	Download

DMX

GLP KNV Dot PSU DMX Channel Index

Rev: 2021-08-24

0.88 MB

Download

Fixture Libraries

GLP KNV Dot MA2	Rev: 2019-10-10	0.03 MB	Download
GLP KNV Dot Wysiwyg	Rev: 2019-11-04	0.05 MB	Download
GDTF Fixture			GDTF-Share

CAD Drawings

GLP KNV Dot CAD	Rev: 2019-08-16	6.06 MB	Download
GLP KNV Dot Vectorworks	Rev: 2020-04-30	8.61 MB	Download

Datasheets, Flyer, Marketing

GLP KNV Dot Product Flyer DE	Rev: 2021-09-10	0.43 MB	Download
GLP KNV Dot Product Flyer EN	Rev: 2021-09-10	0.43 MB	Download
GLP KNV Dot Cut Sheet	Rev: 2020-01-14	2.26 MB	Download
GLP KNV Dot Datasheet	Rev: 2019-10-11	0.51 MB	Download

Firmware

GLP KNV Dot PSU Firmware

Rev: 2021-08-23

0.31 MB
