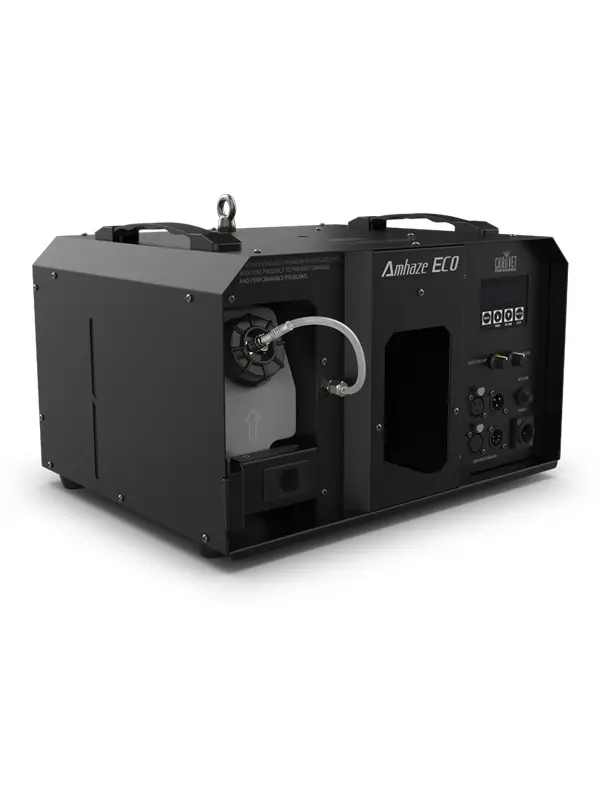

Chauvet AMHAZE Eco

Amhaze Eco is a professional water-based haze machine that delivers high output while utilizing economic fluid consumption. With a rapid 30-second heat up time, and continuous output that doesn’t require any reheating, you can quickly get the maximum output of 120 cfm with a single fluid container lasting you over 8 hours. Easily control the output and fan speed via DMX or on the onboard control knobs. Amhaze Eco comes ready to rest on the floor and is also equipped with M12 threaded inserts for truss clamps, an easy way to mount the 25lb machine. Amhaze Eco combines high output with efficient operation for a complete atmosphere solution for medium to large venues.

$ 1,782.00 1782.0 AUD $ 1,782.00 Tax Included

$ 1,782.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Professional water-based haze machine
30-sec heat up time nearly eliminates wait time for operation
Continuous output with no reheating required
Tour-ready with an M12 threaded insert for truss clamps
Efficient fluid consumption lasts more than 8 hours on a single fluid container
Achieve continuous variable haze output and blower speed, adjusted via DMX or manual knobs

Dynamic Effects

Fan Speed: 120 cfm
Low Fluid Shutdown: Yes

Construction / Physical

Dimensions: 15.86 in (403 mm) x 12.20 in (310 mm) x 10.07 (256 mm)
Dimensions (shipping size): 20.27 x 16.53 x 12.80 in (515 x 420 x 325 mm)
Weight: 25 lb (11.4 kg)
Weight: (shipping weight): 28.8 lb (13.5 kg)
Threaded Bolt: M12
Exterior Color: Black
Tank Capacity: 0.92 gal (3.5L)
Fluid Consumption: 7.5 ml/min (0.12 gallons/hour)
Maximum Run time: >7.5 hours @ full volume
Rest on the floor or mount in the rig with the M12 threaded insert for truss clamps

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM DMX Channels: 3
DMX Channels: 3
Modes/Personalities: 1 personality
On-Board Control: Yes

Electrical

Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-up Time: 30 sec

Certifications / Qualifications

MET, CE
MET Listing Number: E115095
US Safety: UL 499
Canadian Safety: CSA C22.2 No. 64-10
IP Rating: IP20, dry location
Minimum distance from flammable material to all exterior surfaces of the product: 3.3 ft (1 m)
Maximum exterior surface temperature (Tc): 127 °F (53 ℃)

What's Included

Amhaze Eco
Seetronic Powerkon IP65 power cord

Required Accessories

Compatible Mounting Options: M12 Bolt/Clamp
PHF5L Haze Fluid

Optional Accessories

Clamps
Neutrik® powerCON® cables
DMX Cables

Download Product Specs
