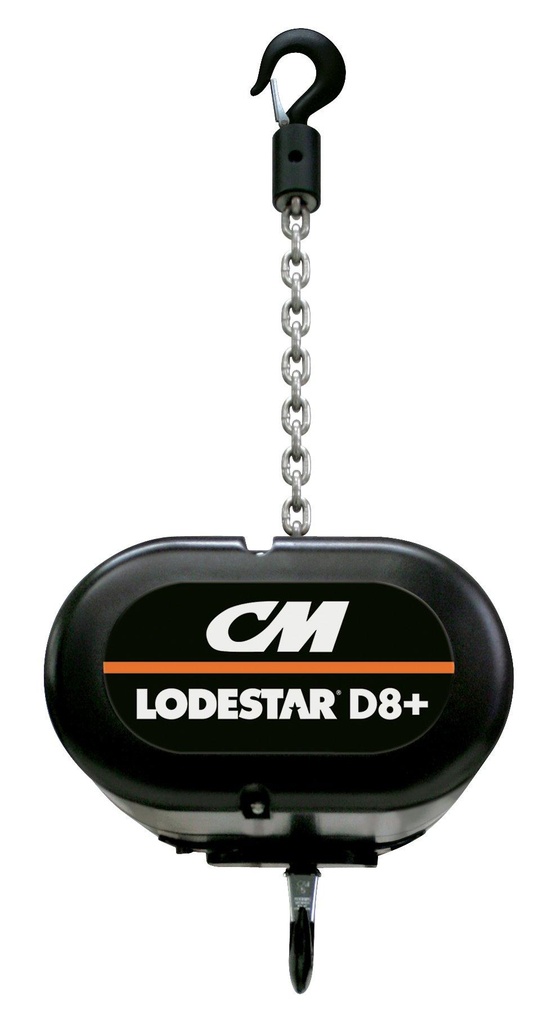

CM Lodestar Entertainment Hoist Model: F (D8+ - SQP2) Capacity - 500kg HOL

https://odoo.showtools.com.au/web/image/product.template/19382/image_1920?unique=a953f2d

The Lodestar D8+ meets all 2018 SQP2 requirements and is the only product on the market certified to meet this standard by TÜV SÜD. Made in the USA, and ensures the highest level of safety for permanent applications and global tours. Designed to suspend loads without the need for secondary support, saving cost, time, and, labor in rigging.

$ 10,998.00 10998.0 AUD $ 10,998.00 Tax Included

$ 10,998.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

  • IP66 Rating
    An Ingress Protection (IP) Rating of 66 indicates that the Lodestar offers protection from dust and high-pressure water - making this unit ideal for use in outdoor environments.
  • Quiet and Smooth Operation
    With a 5-pocket lift wheel.
  • Redesigned Control Panel
    Provides easier access.
  • Low Voltage Control
    110 Volt for long cable runs without voltage drop.
  • Electrical
    Finger safe wiring meets all electrical codes Quick change plugs allow for voltages 230 through 460. Prevents improper voltage connections which can cause hoist damage.
  • Metric Rated Load Chain
    Zinc plated to protect against corrosion. Black phosphate finish optional.
  • Overload Protection
    Clutch outside of gear train meets international standards. Designed to prevent damage to the hoist by preventing excessive overloads.
  • Long Life and Smoother Operation
    Designed with precision helical gearing.
  • Quick Access and Easy Inspection
    The heavy-duty DC brake location allows for quick access and easy inspection.
  • Duty Cycle
    H-4 duty rated for heavy duty application.
  • Adjustable Limit Switch
    Adjustable limit switch that automatically stops the hook at any predetermined point when lifting or lowering, preventing overtravel.
  • Road Ready
    Easy to stow and travel.
  • Lifetime Warranty





ModelLoad Capacity Tons (kg)Lifting Speed fpm (mpm)Operating VoltageFEM Class

Chain Weight/
Model Length or Lift

lb/ft

Chain Weight/
Model Length or Lift

kg/m

Load Chain EN 818-7

in (mm)

Full Load Amps

Reeving

Motor hp (kW)

Protection Class

F1/2 (500)16 (4.9)230/460-3-602m0.590.871/2 (6.3)2.2/1.310.5 (0.4)IP66
J1/2 (500)32 (9.7)230/460-3-602m0.941.405/16 (7.9)3.7/2.211 (0.75)IP66
JJ1/2 (500)64 (19.5)230/460-3-602m0.941.405/16 (7.9)7.9/5.012 (1.5)IP66
L1 (1000)16 (4.9)230/460-3-602m0.941.405/16 (7.9)3.7/2.211 (0.75)IP66
LL1 (1000)32 (9.7)230/460-3-602m0.941.405/16 (7.9)7.9/5.012 (1.5)IP66
R2 (2000)8 (2.4)230/460-3-602m1.882.805/16 (7.9)3.7/2.221 (0.75)IP66
RR2 (2000)16 (4.9)230/460-3-602m1.882.805/16 (7.9)7.9/5.022 (1.5IP66
