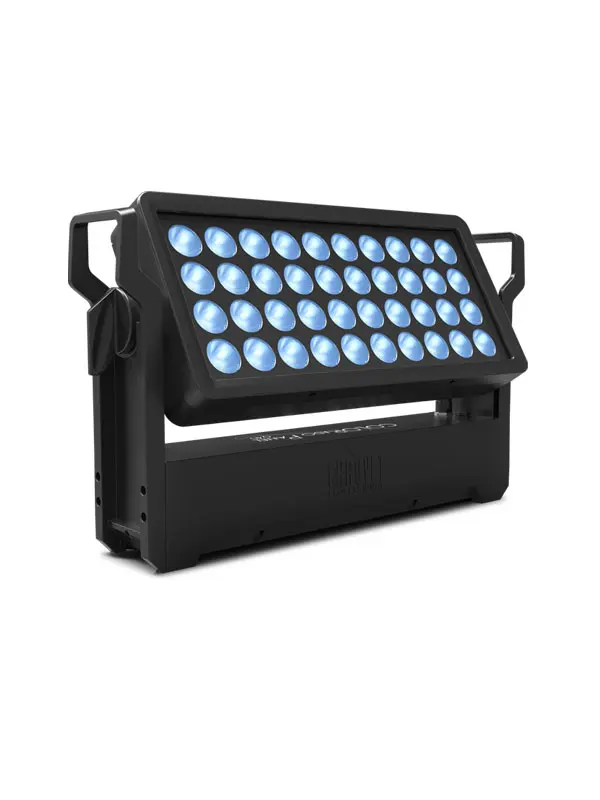

Chauvet Colorado Panel Q40

Chauvet Colorado Panel Q40

https://odoo.showtools.com.au/web/image/product.template/1877/image_1920?unique=39d3ba4
COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

$ 5,926.00 5926.0 AUD $ 5,926.00 Tax Included

$ 5,926.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed
  • Superior edge-to-edge color mixing
  • At home in any weather conditions with IP rated power and DMX connections
  • Included magnetic flood filter for wide area wash
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • WDMX & RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves to eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
  • Included omega bracket for quick and easy truss/pipe mounting

Optical

  • Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Installed Optics: 15°
  • Beam Angle (w/o filter): 20.4°
  • Beam Angle (w/filter): 24.6°
  • Field Angle (w/o filter): 33.8°
  • Field Angle (w/ filter): 50.4°
  • Lumens: 29,407
  • Lumens (w/filter): 17,992
  • Illuminance (w/o filter): 8,347 lux @ 5 m
  • Illuminance (w/ filter): 2,590 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz



Dynamic Effects

  • Tilt Ranges: 0° to 150°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes



Construction / Physical

  • Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
  • Weight: 28.2 lb (12.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)



Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, W-DMX, RDM
  • DMX Channels: 4, 7, 11, 16 or 22
  • Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
  • Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
  • Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • Seetronic Powerkon IP65 power cord
  • Color Blending Filter lens
  • Omega bracket with mounting hardware



Optional Accessories

Download Product Specs
