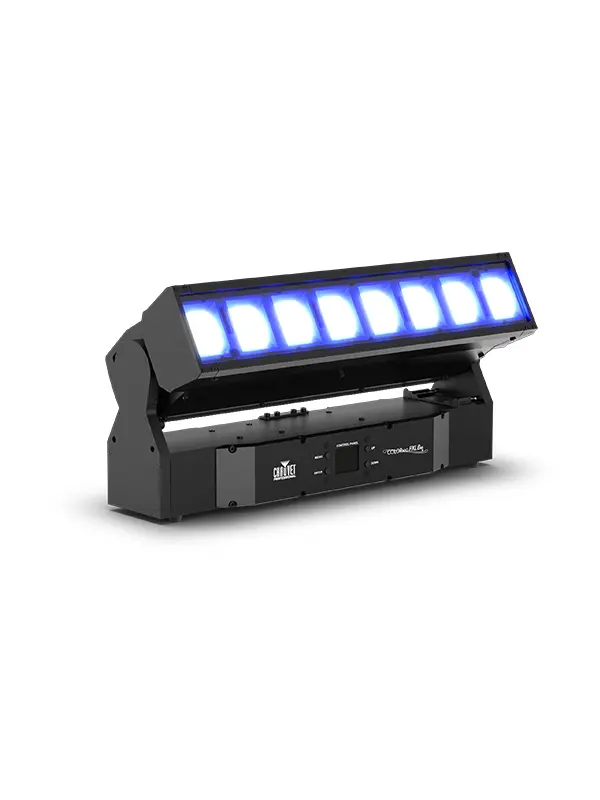

Chauvet Colorado PXL Bar 8

COLORado PXL Bar 8 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless!

$ 6,653.00 6653.0 AUD $ 6,653.00 Tax Included

$ 6,653.00 Tax Included

This combination does not exist.

Add to cart

Battens

Terms and Conditions

At a Glance

IP65-rated motorized tilting batten with (8) 45 W RGBW LEDs with a 3.5° to 47.3° zoom range, maintains pixel pitch between fixtures.
Quiet and quick operation of 200-degree tilt
Quiet and quick operation of zoom
Fully pixel mappable
Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
DMX, SACN, Art-Net, and Kling-Net control for full flexibility
RDM Enabled for remote addressing and trouble shooting
3.5° to 47.3° zoom range for variable beam sizes
TRUE1 compatible power input/output ports
IP65 rated 5 pin DMX and TCP/IP input/output ports
IP65 rated USBc software upload port
Slotted Omega brackets for easy hanging on truss

Optical

Light Source: 8 LEDs (quad-color RGBW) 45 W, (3.0 A),50,000 hours life expectancy.
Color Temperature: 6121 K (calibrated white)
CRI: 64
Beam Angle: 3.5° to 30.8°
Beam Angle single cell: 4° to 29.9°
Field Angle: 5.2° to 42.7°
Field Angle single cell: 5.4° to 42.3°
Cutoff Angle: 8.5° to 47.3°
Cutoff Angle single cell: 6.1° to 45.5°
Zoom Range: 3.6° to 47.3°
Zoom Range single cell: 4° to 45.5°
Lumens: 3,503
Illuminance (3.6°): 12,109 lux @ 5 m
Illuminance (47.3°): 563 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Tilt: 200°
Tilt Ranges: 60°, 180°, 200° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Dim Modes: 2
Dim Curves: 4

Construction / Physical

Dimensions: 19.69 x 5.47 x 10.75 in (500 x 139 x 273 mm)
Weight: 25.2 lb (11.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer

Connections

Power Connection: Bare end to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated, Seetronic IP rated RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, Kling-Net, DMX, sACN, RDM
DMX Channels: (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Art-Net Channels: (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Modes/Personalities: 10 personalities (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V, 5 units @ 208 V, 6 units @ 230 V
Power and Current: 422 W, 3.497 A @ 120 V, 60 Hz
Power and Current: 409 W, 2.013 A @ 208 V, 60 Hz
Power and Current: 407 W, 1.830 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

COLORado PXL Bar 8
Seetronic Powerkon IP65 power cable to bare end
1 Omega bracket with mounting hardware

Optional Accessories

Neutrik powerCONC cables
Neutrik etherCON cables
DMX cables
Upload_08 software uploader
Road Case
