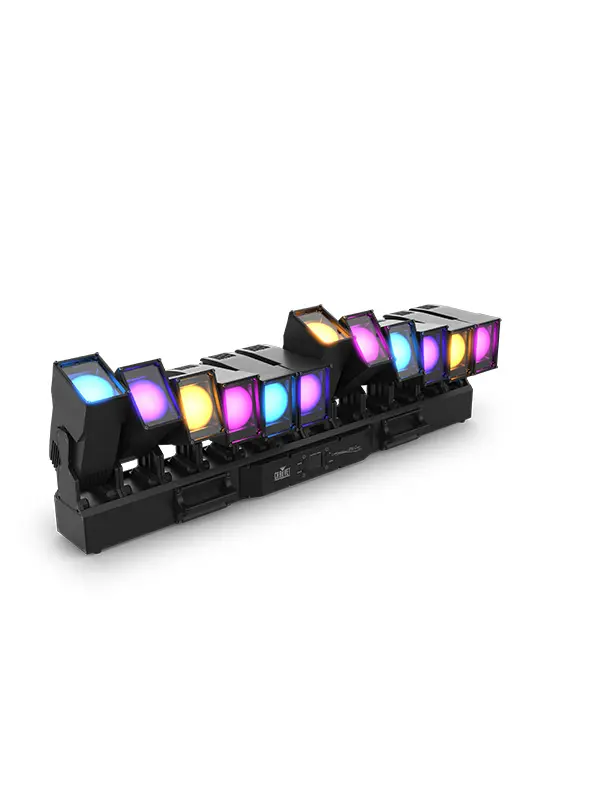

Chauvet Colorado PXL Curve 12

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

$ 15,226.00 15226.0 AUD $ 15,226.00 Tax Included

$ 15,226.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.
Quiet and quick operation of 200° of tilt of each if (12) heads
Quiet and quick operation of (12) individual zoom zones
Fully pixel mappable
Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
DMX, SACN, Art-Net, and Kling-Net control for full flexibility
RDM Enabled for remote addressing and trouble shooting
5.7° to 36.3° zoom range for variable beam sizes
TRUE1 compatible power input/output ports
IP65-rated 5 pin DMX and TCP/IP input/output ports
IP65-rated USBc software upload port
Slotted Omega brackets for easy hanging on truss

Optical

Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
Color Temperature (range): 2700 to 8000 K
Beam Angle Spot: 5.7°
Beam Angle Flood: 26.8°
Beam Angle 50% Zoom: 13.8°
Field Angle Spot: 9°
Field Angle Flood: 33.9°
Field Angle 50% Zoom: 19.2°
Cutoff Angle Spot: 9.9°
Cutoff Angle Flood: 36.3°
Cutoff Angle 50% Zoom: 21.6°
Zoom Range: 5.7° to 36.3°
Lumens: 5,807 lm
Illuminance (Spot) : 38,727 lux @ 5 m
Illuminance (Flood) : 1,120 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

Tilt: 200°
Tilt Range: 60°, 180°, 200°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

Construction / Physical

Dimensions: 39.21 x 7.09 x 12.80 in (996 x 180 x 325 mm)
Weight: 76 lb (34.5 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

Connections

Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Input: Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
Fuse: F12 A, 250 V

Certifications / Qualifications

CE, MET, UKCA, FCC
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included

COLORADO PXL Curve 12
(2) Omega brackets
Seetronic Powercon IP65 power cord

Optional Accessories

Professional Clamps
Neutrik TRUE1 power linking cables
5-pin DMX Cables
Ethercon Cables
