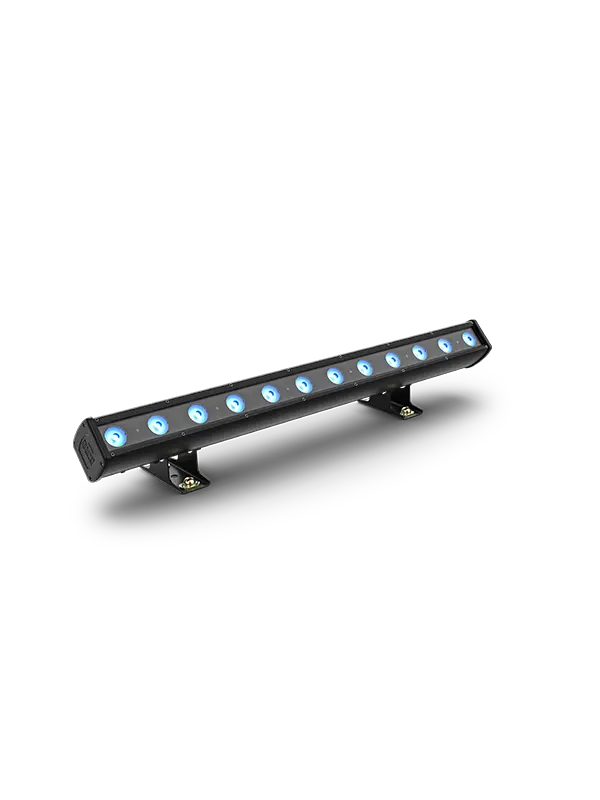

Chauvet Colordash Batten-Hex 12XIP

The rugged COLORdash Batten H12X IP RGBWAUV linear LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 18 lbs while delivering over 4,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Maintains an even pixel pitch for perfect pixel mapped looks when used in multiples. Setup is easy with hanging brackets that double as floor stands. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, COLORdash Batten H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

$ 2,209.00 2209.0 AUD $ 2,209.00 Tax Included

$ 2,209.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Rugged RGBWA-UV LED batten for events where indoor/outdoor flexibility is needed
At home in any weather conditions with IP rated power and DMX connections
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Floor trunions with omega bracket for easy hanging

Optical

Light Source: 12 LEDs (RGBAW+UV) 10 W, (532 mA), 50,000 hours life expectancy
Color Temperature (at full): 11567 K
Beam Angle: 24.9°
Field Angle: 40.7°
Lumens: 4,796 lm
Illuminance (total): 881 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 23 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes/No
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 39.4 x 8.129 x 3.78 in (1000 x 208 x 96 mm)
Weight:17.4 lb (8 kg)
Exterior Color: Black
Housing Material: Aluminum diecast

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13, 14, 42, 47 or 59
Modes/Personalities: 8 personalities (6, 8, 9, 13, 14, 42, 47, 59)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
Power and Current: 154 W, 1.284 A @ 120 V, 60 Hz
Power and Current: 151 W, 0.741 A @ 208 V, 60 Hz
Power and Current: 151 W, 0.667 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, UKCA, FCC
IP Rating : IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Colordash Batten H12X IP
Neutrik powerCON TRUE1 power cord
Omega Bracket (2pc)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powercon power linking cables
5-pin IP DMX Cables

Download Product Specs
