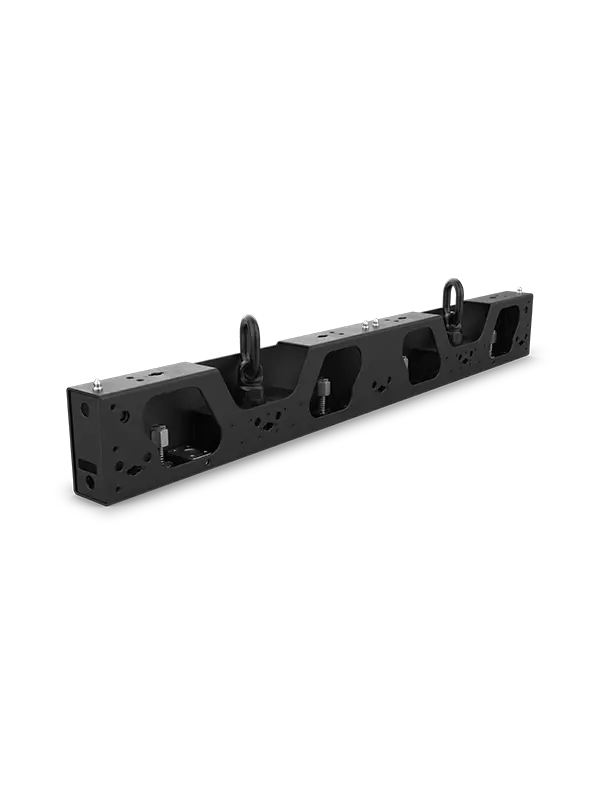

Chauvet F Series Dual Rig Bar

Chauvet F Series Dual Rig Bar

https://odoo.showtools.com.au/web/image/product.template/1938/image_1920?unique=dc38cb8
DRB-F100CMIP and DRB-F50CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

$ 2,247.00 2247.0 AUD $ 2,247.00 Tax Included

$ 2,247.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally
  • Works for overhead hanging, as well as ground support/stacking applications
  • Works with CHAUVET F-series video panels (F2, F3X, F5IP, F4XIP)
  • Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2" and 5/8" shackles)
  • Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps
    using TRUSST CTC-50HC

Construction / Physical

  • Dimensions: 39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
  • Weight: 15.4 lb (7.0 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum extrusion, stainless steel



Clamp

  • Load Capacity: (hanging): 1,665 lb (755 kg)
  • Load Capacity: (stacking): 2,735 lb (1,240kg)
  • Recommended Shackle Sizes: 1/2", 5/8"



Certifications / Qualifications

  • ROHS
  • IP Rating: IP65, temporary outdoor/wet use

What's Included

  • 1pcs F-series Dual Function Rig Bar-100 cm (DRB-F100CMIP)
  • 1pcs 0° Linking Plate
  • 2pcs clamp attachment brackets (DRB-CTC)
  • 2pcs clamp bolts for TRUSST CTC-50HC



Required Accessories

  • Compatible Mounting Options: Shackle (Sizes: 1/2", 5/8"), Pipe Clamp (M12 threaded bolt)



Optional Accessories

  • DRB-CURVEKITX2

Download Product Specs
