Chauvet F Series Rig Bar IP

Chauvet F Series Rig Bar IP

https://odoo.showtools.com.au/web/image/product.template/1965/image_1920?unique=dc38cb8

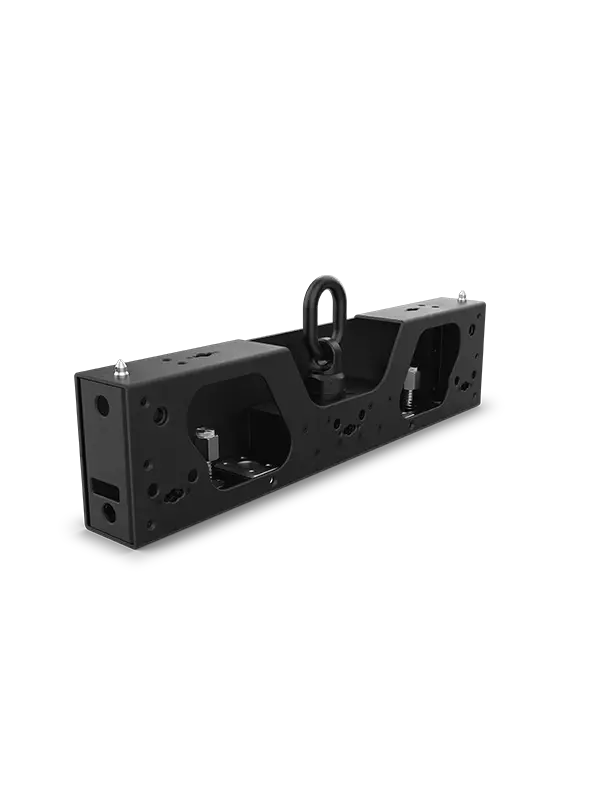

DRB-F50CMIP and DRB-F100CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

$ 1,363.00 1363.0 AUD $ 1,363.00 Tax Included

$ 1,363.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally
  • Works for overhead hanging, as well as ground support/stacking applications
  • Works with CHAUVET F-series video panels (F2, F3X, F5IP, F4XIP)
  • Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2" and 5/8" shackles)
  • Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps
    using TRUSST CTC-50HC

Construction / Physical

  • Dimensions: 19.6 x 2.3 x 4.3 in (499 x 60 × 120 mm)
  • Weight: 8.8 lb (3.99 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum extrusion, stainless steel



Clamp

  • Load Capacity (Hanging): 970 lb (440 kg)
  • Load Capacity (Stacking): 2,204.6 lb (1,000 kg)
  • Recommended Shackle Sizes: 1/2", 5/8"



Certifications / Qualifications

  • ROHS
  • IP Rating: IP65, temporary outdoor/wet use

What's Included

  • 1pcs F-series Dual Function Rig Bar-50 cm (DRB-F50CMIP)
  • 1pcs 0° Linking Plate
  • 1pc clamp attachment brackets (DRB-CTC)
  • 1pc clamp bolts for TRUSST CTC-50HC



Required Accessories

  • Compatible Mounting Options: Shackle (Sizes: 1/2", 5/8"), Pipe Clamp (M12 threaded bolt)



Optional Accessories

  • DRB-CURVEKITX2
