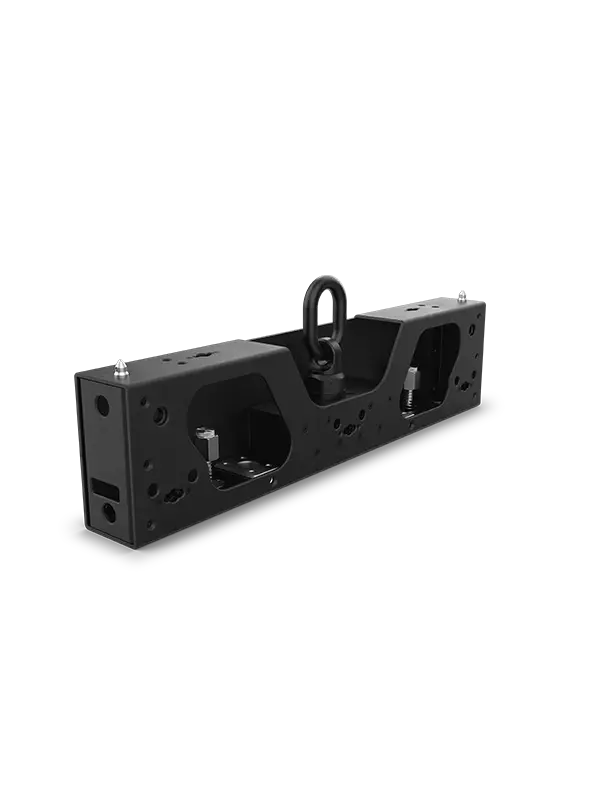

Chauvet F Series Rig Bar IP

DRB-F50CMIP and DRB-F100CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

$ 1,363.00 1363.0 AUD $ 1,363.00 Tax Included

$ 1,363.00 Tax Included

This combination does not exist.

Add to cart

Video Panels

Terms and Conditions

At a Glance

F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally
Works for overhead hanging, as well as ground support/stacking applications
Works with CHAUVET F-series video panels (F2, F3X, F5IP, F4XIP)
Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2" and 5/8" shackles)
Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps
using TRUSST CTC-50HC

Construction / Physical

Dimensions: 19.6 x 2.3 x 4.3 in (499 x 60 × 120 mm)
Weight: 8.8 lb (3.99 kg)
Exterior Color: Black
Housing Material: Aluminum extrusion, stainless steel

Clamp

Load Capacity (Hanging): 970 lb (440 kg)
Load Capacity (Stacking): 2,204.6 lb (1,000 kg)
Recommended Shackle Sizes: 1/2", 5/8"

Certifications / Qualifications

ROHS
IP Rating: IP65, temporary outdoor/wet use

What's Included

1pcs F-series Dual Function Rig Bar-50 cm (DRB-F50CMIP)
1pcs 0° Linking Plate
1pc clamp attachment brackets (DRB-CTC)
1pc clamp bolts for TRUSST CTC-50HC

Required Accessories

Compatible Mounting Options: Shackle (Sizes: 1/2", 5/8"), Pipe Clamp (M12 threaded bolt)

Optional Accessories

DRB-CURVEKITX2

Download Product Specs
