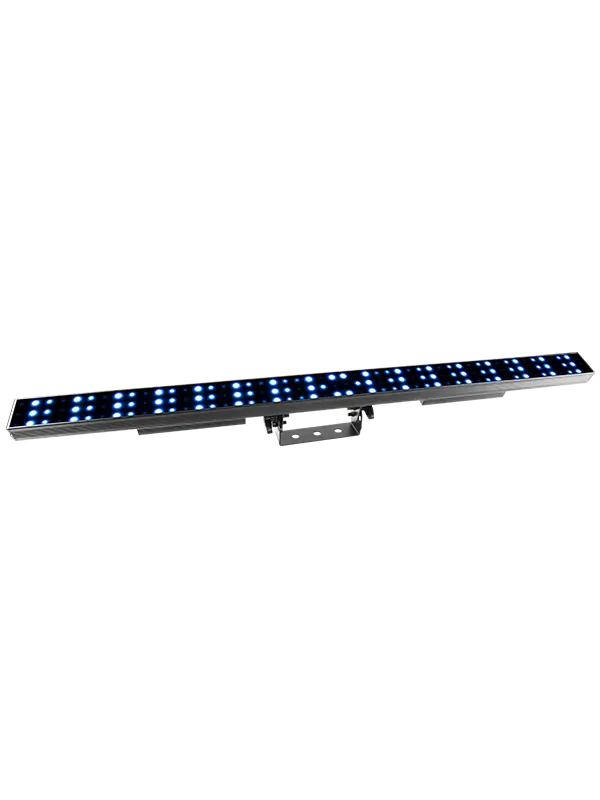

Chauvet EPIX Bar Tour

ÉPIX Bar Tour is a pixel-mapping 1-meter LED bar, featuring 150 LEDs in three rows and a 125° viewing angle. Use the ÉPIX Drive 900 to power and control it on Art-Net, Kling-Net, or sACN (streaming ACN).

$ 1,089.00 1089.0 AUD $ 1,089.00 Tax Included

$ 1,089.00 Tax Included

This combination does not exist.

Add to cart

Battens

Terms and Conditions

At a Glance

Pixel-mapping 1-meter 50 x 3 LED bar for showing video and/or motion graphics
Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
ÉPIX Drive 900 is required for operation

Optical

Light Source: 150 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 125°
Illuminance (white frost filter installed): 2,040 NITS
Illuminance (black stealth filter installed): 601 NITS
Pixels: 50 x 3
Pixel Pitch: 20 mm
Refresh Rate: 4,700 Hz (S-PWM)

Dynamic Effects

Construction / Physical

Dimensions: 39.37 x 4.72 x 2.36 in (1000 x 120 x 60 mm)
Weight: 4.54 lb (2.06 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast

Connections

Data Connectors: 4-pin XLR
Physical Linking: 6 inline ÉPIX Bar Tour
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last
ÉPIX Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

Control

Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 450

Electrical

Power and Current: 50 W, 0.42 A @ 120 V, 60 Hz
Power and Current: 50 W, 0.24 A @ 208 V, 60 Hz
Power and Current: 50 W, 0.21 A @ 230 V, 50 Hz

Cable

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

ÉPIX Bar Tour
White Frost Filter

Required Accessories

ÉPIX Drive 900
