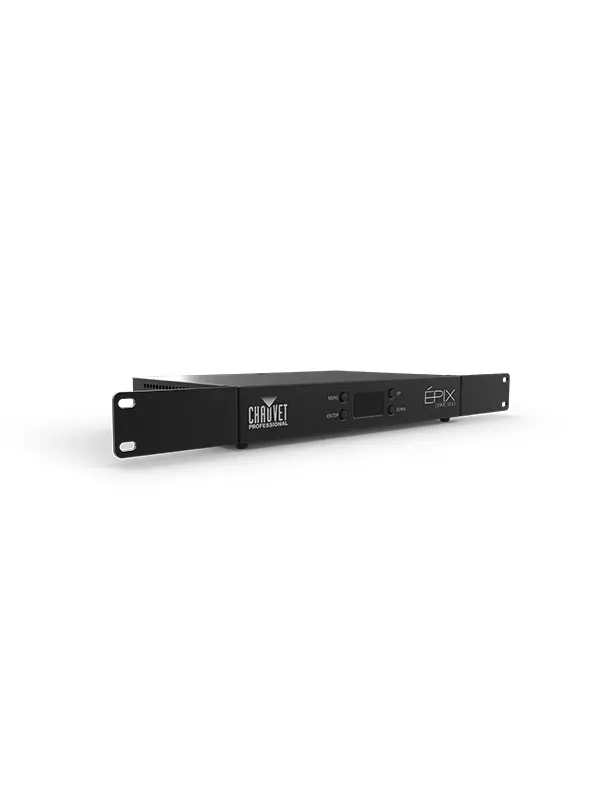

Chauvet EPIX Drive 900

ÉPIX Drive 900 hosts the processing and power supply for the ÉPIX Tour system. It supports either 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours, or any combination of the two, with a total capacity of 900 LEDs ÉPIX Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX lights.

$ 1,759.00 1759.0 AUD $ 1,759.00 Tax Included

$ 1,759.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

The processing and power center of the ÉPIX Tour system will drive any combination of ÉPIX Tour products, up to 900 LEDs
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
Quickly and easily configure the ÉPIX Drive 900 using the built-in OLED display
Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
Supports up to 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours
Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)
Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate

Construction / Physical

Dimensions (with rack ears): 19.02 x 7.60 x 1.97 in (483 x 193 x 50 mm)
Dimensions (without rack ears): 11.14 x 7.60 x 1.97 in (283 x 193 x 50 mm)
Weight: 5.42 lb (2.46 kg)
Weight (shipping weight): 7.72 lb (3.5 kg)
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Steel
Rackmount: 1U

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Device Outputs (4-pin XLR): 1
Physical Linking: 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
Data Connectors: Neutrik etherCON
Cable Length (power): 5 ft (1.5 m)
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

Control

Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 6 Art-Net/sACN Universes

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
Power and Current: 299 W, 2.53 A @ 120 V, 60 Hz
Power and Current: 299 W, 1.44 A @ 208 V, 60 Hz
Power and Current: 299 W, 1.31 A @ 230 V, 50 Hz
Power and Current (resting): 23 W, 0.195 A @ 120 V, 60 Hz
Power and Current (resting): 32 W, 0.156 A @ 208 V, 60 Hz
Power and Current (resting): 32 W, 0.133 A @ 230 V, 50 Hz
Output Voltage: 48 VDC
Maximum Load: 18 ÉPIX Strip Tour or 6 ÉPIX Bar Tour (per output)

Cable

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

ÉPIX Drive 900
Neutrik powerCON power cord
Rack ears (2)
Bag of rack ear mounting screws
Rubber feet (4)
