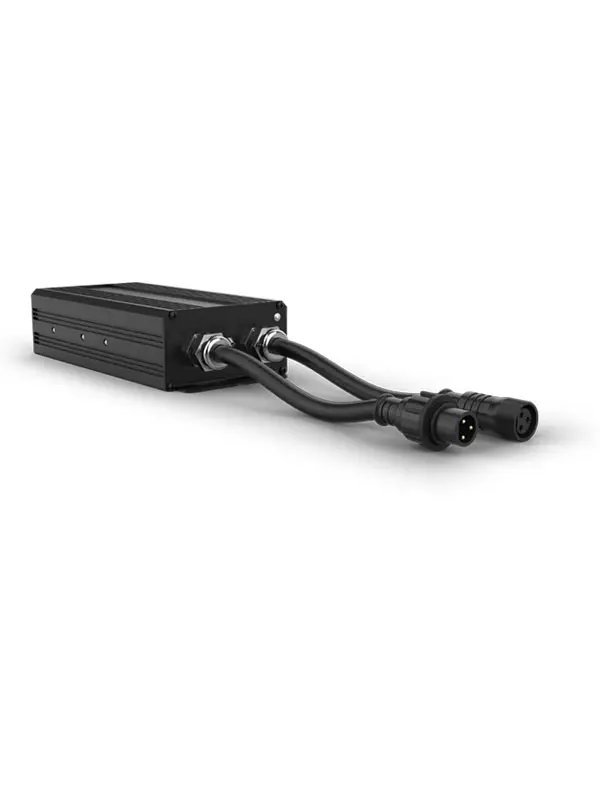

Chauvet EPIX Flex Boost

Chauvet EPIX Flex Boost

ÉPIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the ÉPIX Flex Drive and the quantity of ÉPIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation.

$ 666.00 666.0 AUD $ 666.00 Tax Included

$ 666.00 Tax Included

This combination does not exist.

Terms and Conditions

At a Glance

IP65 outdoor rated in-line voltage booster for ÉPIX Flex 20
Works when connected to the outputs of the ÉPIX Flex Driver

Construction / Physical

Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
Weight: 4.4 lb (2 kg)
Exterior Color: Black
Housing Material: Aluminum

Connections

Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Device inputs: (1) 3-pin male IP Flex
Device Outputs: (1) 3-pin female IP Flex
Physical Linking: 2 inline ÉPIX Flex 20
Cable Length (signal): 1.16 ft (0.355 m)
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
MET Listing Number: E114016-1144
US Safety: UL 8750
Canadian Safety: CSA C22.2 No. 250.13-12

What's Included

ÉPIX Flex Boost
Seetronic Powerkon power cord

Required Accessories

Accessories (required): ÉPIX Flex Drive
Compatible Mounting Options: M12 Bolt/Clamp

Optional Accessories

Clamps
IP Flex Cables
Seetronic Powerkon cables
DMX Cables

Download Product Specs
