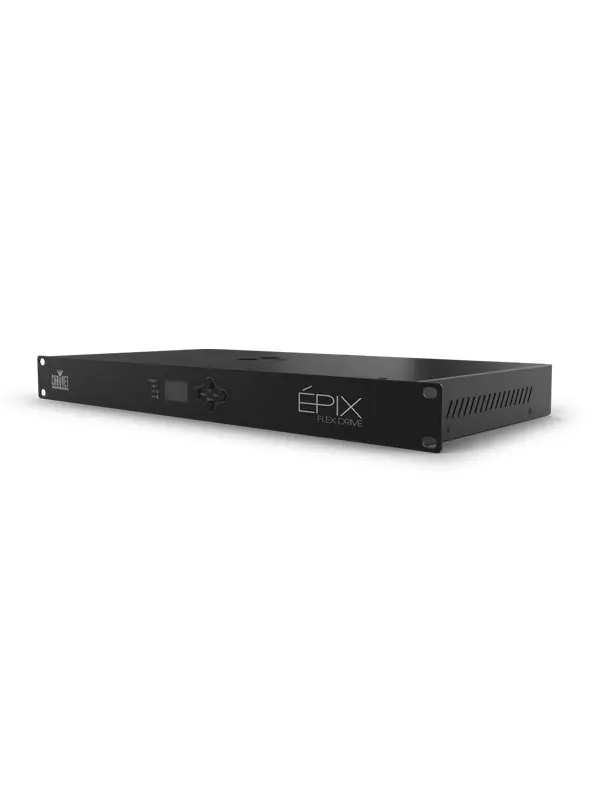

Chauvet EPIX Flex Drive

ÉPIX Flex Drive controls the ÉPIX Flex 20 with 2 plug and play outputs that drive up to 4 ÉPIX Flex 20 at 960 LEDs each. Adding ÉPIX Flex Boost to each output doubles the capacity of the drive to 1920 LEDs or 8 ÉPIX Flex 20, which reduces cost per linear feet. To ease installation, ÉPIX Flex Drive allows for 75ft of extension cables between it and the first ÉPIX Flex 20. Use either pixel control or its simplified 17 / 34-channel control personalities to support changing colors and built-in automatic programs. Webserver is supported for remote configuration and for firmware updates.

$ 1,660.00 1660.0 AUD $ 1,660.00 Tax Included

$ 1,660.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

The processing and power center of the ÉPIX Flex system drives the ÉPIX Flex 20 pixel product
Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring/rental/installation markets
Quickly and easily configure the ÉPIX Flex Drive using the built-in OLED display and menu
Easily configure your ÉPIX Flex 20 by assigning the pixel count/output (2 total)
Supports up to 4 ÉPIX Flex 20 5 meter rolls, or up to 8 with the ÉPIX Flex Boost (sold separately)
Easily daisy chain fixtures directly from the 2 outputs of the Flex Drive
Advanced power management design allows you to position the Flex Drive up to 75 ft away from your first Flex 20
Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
Supports RDM over Artnet and full webserver interface for remote configuration and firmware updates
Multiple control personalities offers flexibility for detailed pixel-level control or simplified plug and play options using the 17/34 channel modes

Dynamic Effects

Standalone Color Mixing: Yes
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 19 x 17.52 x 1.7 in (483 x 445 x 44 mm)
Weight: 6 lb (2.7 kg)
Exterior Color: Black
Housing Material: Steel
Rackmount: 1U

Connections

Power Connection: Edison (local) plug to IEC
Power Input: IEC
Cable Length (power): 5 ft (1.5 m)
Device Data Inputs: Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)
Device Outputs (3-pin IP65 ports): 2
Physical Linking per port (without Flex Boost): 2 inline ÉPIX Flex 20
(with Flex Boost): 4 inline ÉPIX Flex 20
Total max. cable extension length (without Flex Boost) between ÉPIX Flex Drive and first ÉPIX Flex 20: 75 ft (22.9 m)
(with Flex Boost) between ÉPIX Flex 20 and ÉPIX Flex 20: 10 ft (3 m)
Total max. cable extension length between ÉPIX Flex Boost and ÉPIX Flex 20: 5 ft (1.5 m)

Control

Control Protocol: Art-Net, sACN, DMX
DMX Channels: 17, 34 or PIXEL
Art-Net Channels: 17, 34 or PIXEL
Modes/Personalities: 3 personalities (17ch, 34ch, PIXEL)
Maximum Supported LEDs (per port): 960
Maximum Supported LEDs (total): 1920

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 326 W, 2.75 A @ 120 V, 60 Hz
314 W, 1.64 A @ 208 V, 60 Hz
312 W, 1.50 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
MET Listing Number: E114016-1144
US Safety: UL 8750
Canadian Safety: CSA C22.2 No. 250.13-12

What's Included

ÉPIX Flex Drive
IEC power cord

Optional Accessories

ArKaos Media Master Express + KN software
