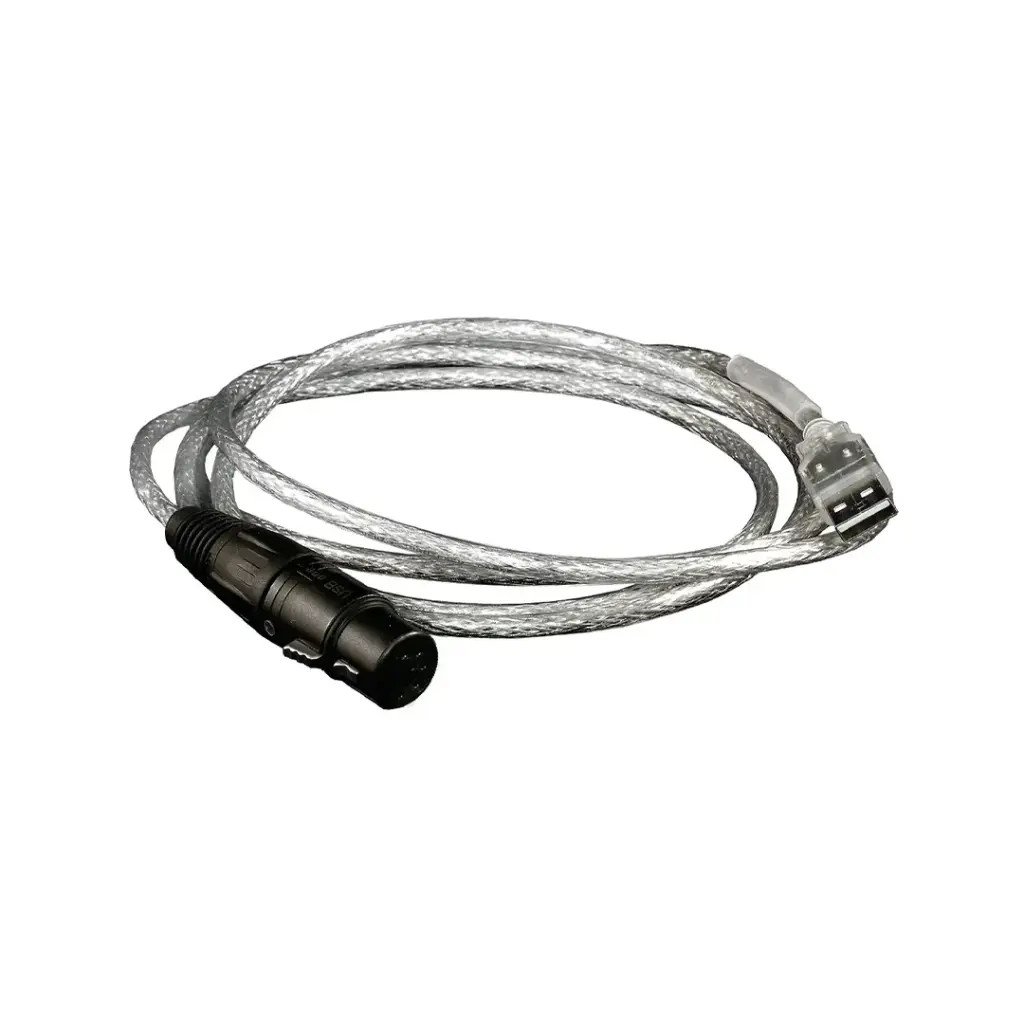

The MADRIX USB ONE allows you to control 512 DMX channels using MADRIX 5. Mainly used for DMX input, an additional MADRIX KEY (a software license) is required for DMX output.
DMX-IN/OUT With 5-Pin NEUTRIK XLR Port
This device allows you to send or receive DMX data over 512 DMX channels using MADRIX 5. A male to male 3-pin or 5-pin XLR Gender Changer is required for DMX-IN.
Hot Swapping & Plug and Play
Devices can be connected to and disconnected from the computer during use and without a reboot.
USB 2.0 Standard
The USB 2.0 standard is fully supported to allow for a higher maximum speed of 480 MBit/s.
Remote Control
MADRIX 5 can be controlled remotely using the implemented DMX-IN functions.
Power Over USB
The interface is powered directly via the USB port and does not need an additional power supply.
Frame Rate Stability
Up to 60 devices can be connected to a USB host controller without having any frame rate problems. (60 DMX512 interfaces amount to 30,720 DMX channels.)
High Quality
The USB ONE represents high quality made in Germany and is very reliable.
Active USB
Please connect every USB ONE to an active USB 2.0 port or use a USB 2.0 hub with a power supply.
