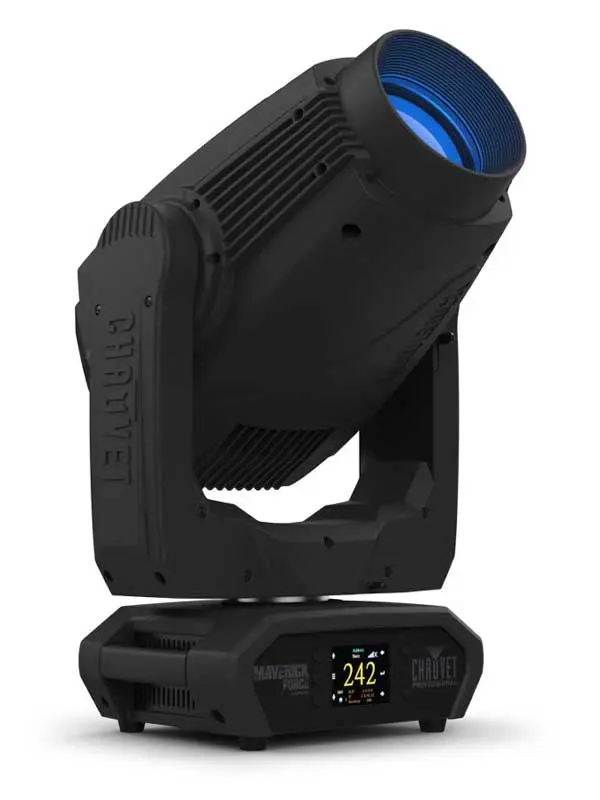

Chauvet Maverick Force 1 Spot

Maverick Force 1 Spot is a lightweight moving head with a big presence. The tour-ready unit features an output of 20,000 lumens and an artillery of speedy effects in a deceptively compact frame, just under 50lbs. Maverick Force 1 Spot features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. Motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping as well. Custom glass gobos created in collaboration with leading designers, and a continuous animation wheel can all be stacked on top of each other. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

$ 15,408.00 15408.0 AUD $ 15,408.00 Tax Included

$ 15,408.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Fully featured, compact and lightweight 470 W LED yoke spot fixture including CMY + CTO color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static, and an animation wheel
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
CRI and CTB filters on color wheel for added flexibility
DMX, WDMX, sACN, and Art-Net for full flexibility of control options
RDM enabled for remote addressing and trouble shooting
6.3° to 54.4° zoom range for variable beam sizes
Iris, 5-facet prism, and frost for beam control
True 1 compatible power input
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation

Optical

Light Source: 1 LED (CW) 470 W, (4 A), 7500K, 50,000 hours life expectancy
Color Temperature (at full): 7099 K
CRI: 68.8
CRI with CRI Filter: 89.4
Front Lens Dia: 127 mm
Beam Angle: 6.3° to 45.7°
Field Angle: 7.3° to 53°
Cutoff Angle: 7.6° to 54.4°
Zoom Range: 6.3° to 54.4°
Lumens - Source: 35,000
Lumens – Output: 21,172
Illuminance (6.3°): 43,485 lux @ 5 m
Illuminance (54.4°): 1,793 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY+ CTO flags
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (9 glass), static, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
Animation wheel: static, motorized, continuous scroll at variable speeds
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical

Dimensions: 15.5 x 9.8 x 25.0 in (394 x 250 x 636 mm)
Weight: 48 lb (21.8 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, sACN, DMX, W-DMX
DMX Channels: 25 or 32
Art-Net Channels: 25 or 32
Modes/Personalities: 2 personalities (25, 32)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 670 W, 6.70 A @ 100 V, 60 Hz
Power and Current: 660 W, 5.45 A @ 120 V, 60 Hz
Power and Current: 637 W, 3.10 A @ 208 V, 60 Hz
Power and Current: 632 W, 2.79 A @ 230 V, 50 Hz
Power and Current: 630 W, 2.70 A @ 240 V, 50 Hz
Power and Current (resting): 80 W, 0.801 A @ 100 V, 60 Hz
Power and Current (resting): 80 W, 0.665 A @ 120 V, 60 Hz
Power and Current (resting): 84 W, 0.397 A @ 208 V, 60 Hz
Power and Current (resting): 84 W, 0.356 A @ 230 V, 50 Hz
Power and Current (resting): 89 W, 0.361 A @ 240 V, 50 Hz
Power Linking 12 A: 0@100 V, 2@120 V, 3@208 V, 4@230 V, 4@240 V

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37 dB level @ 1 m
Noise Level (Idle): 28.5 dB(A) @ 1 m
Noise Level (Max): 39.6 dB level @ 1 m
Noise Level (Eco): 36.8 dB level @ 1 m
Noise Level (Auto): 44.4 dB level @ 1 m
Noise Level (Full): 47.8 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What's Included

Maverick Force 1 Spot
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX cables
Ethercon Extension cables
IP Rated Seetronic® Powerkon Extensions
Flight Case
UPLOAD_08 software uploader
