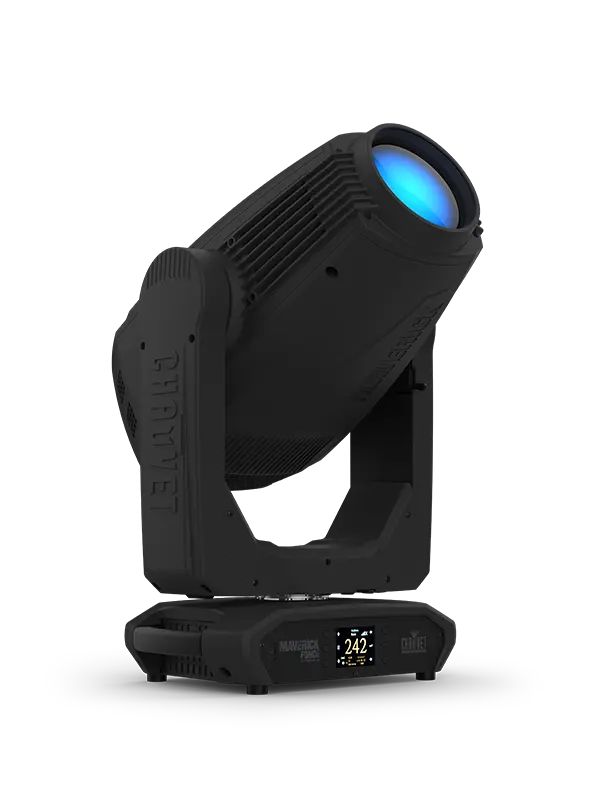

Chauvet Maverick Force 3 Profile

Chauvet Maverick Force 3 Profile

https://odoo.showtools.com.au/web/image/product.template/1826/image_1920?unique=238f3c7
Maverick Force 3 Profile brings quick movement and fast effects together in a blazingly bright LED yoke profile fixture that harnesses the latest technology to deliver 40,906 lumens of output. Precision optics capture the depth of a CMY + CTO color mixing system renowned for its real reds and maintain a flat field of focus even when taking its 10:1 zoom fully wide. Color calibration and gobo selection comes matched to other Force fixtures in the rig, along with the advanced 4-blade shutter frame system and effects wheelhouse that delivers the great static, rotating, and animation effects the Force series is known for. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

$ 26,232.00 26232.0 AUD $ 26,232.00 Tax Included

$ 26,232.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Full featured 915 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 10:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • CRI and CTB filters on color wheel for added flexibility
  • Independently layerable five facet linear and five facet round prisms for increased prism options
  • One rotating and one static gobo wheel for dynamic texture possibilities
  • Independent light and medium frosts for beam control
  • + or – 60 degree rotation framing shutter system to allow for better framing positioning.
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM control over DMX for fixture reporting
  • 4.9° to 53.9° zoom angle for variable beam sizes
  • Three menu presets and preset cross load for decreased shop setup time
  • True 1 compatible power input
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation.
  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.

Optical

  • Light Source: 1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7228 K
  • CRI: 70.9
  • CRI with CRI Filter: 89.4
  • Front Lens Diameter: 160 mm
  • Beam Angle: 4.9 ° to 42.8°
  • Field Angle: 5.8° to 49.4°
  • Cutoff Angle 6.5° to 53.6°
  • Zoom Range: 4.9° to 53.9°
  • Lumens – Source: 62,000
  • Lumens – Output: 40,906
  • Illuminance (4.9°) 130,582 lux @ 5 m
  • Illuminance (53.9°) 3,792 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz



Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags
  • Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open glass, static, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
  • Gobo Size: Gobo Wheel 2 (static): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
  • Framing Shutters: 4 blades, each with dual axis movement.
  • Framing Shutter rotation: +/- 60° rotation.
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Linear Facets, motorized, rotating
  • Prism: 5 Circular Facets, motorized, rotating
  • Strobe Rate: 0 to 26 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4



Construction / Physical

  • Dimensions: 16.73 x 10.98 x 30.47 in (425 x 279 x 774 mm)
  • Weight: 84.2 lb (38.2 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
  • DMX Channels: 37 or 53
  • Art-Net Channels: 37 or 53
  • Modes/Personalities: 2 personalities (37, 53)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 1320 W, 11.29 A @ 120 V, 60 Hz
  • Power and Current: 1270 W, 6.32 A @ 208 V, 60 Hz
  • Power and Current: 1260 W, 5.76 A @ 230 V, 50 Hz
  • Fuse Size: F20 A, 250 V



Certifications / Qualifications

  • CE, MET, FCC,UKCA
  • IP Rating: IP20, dry location
  • Noise Level (Idle): 38.1 dB(A) @ 1 m
  • Noise Level (Max): 40.3 dB(A) @ 1 m
  • Noise Level (ECO): 36.6 dB(A) @ 1 m
  • Noise Level (Auto): 39.8 dB(A) @ 1 m
  • Noise Level (Full): 47.1 dB(A) @ 1 m
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)



What's Included

  • Maverick Force 3 Profile
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware



Optional Accessories

  • Clamps
  • Barn Doors
  • Neutrik powerCON cables
  • Neutrik etherCON cables
  • DMX Cables
  • Flight Cases
  • CP Rack
