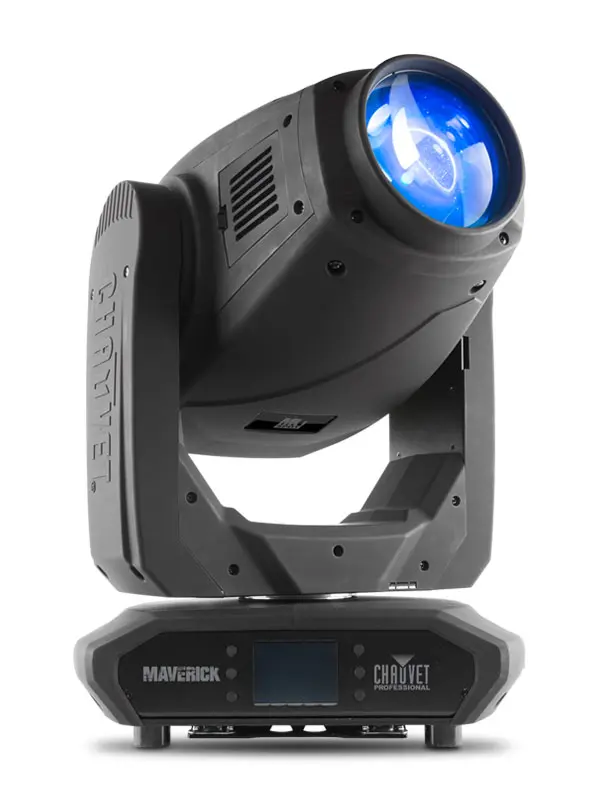

Chauvet Maverick MK1 Spot - 1 x 350w (CW) LED

Chauvet Maverick MK1 Spot - 1 x 350w (CW) LED

https://odoo.showtools.com.au/web/image/product.template/19357/image_1920?unique=238f3c7
Maverick MK1 Spot is ready for action with an extremely flat field, CMY color mixing, a 5:1 zoom and multiple control options. Powered by a 350 W LED engine, it features one static and one rotating gobo wheel, a 7 position + white color wheel, variable frost and 3-facet prism. It can be controlled with DMX, sACN, Art-Net, or W-DMX.

$ 7,452.58 7452.58 AUD $ 7,452.58 Tax Included

$ 7,452.58 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Fully featured 350W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY color mixing system to create a wide pallet of colors
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM Enabled for remote addressing and trouble shooting
  • 8.7° to 36.9° zoom angle for variable beam sizes
  • Iris, 3-facet prism, and frost for beam control
  • True 1 compatible power input
  • Battery backup touchscreen display with auto rotate depending on fixture orientation
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

Optical

  • Light Source: 1 LED (CW) 350 W, (9.6 A), 6,808 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7000 K
  • Front Lens diameter: 135 mm
  • Beam Angle: 6.5° to 31.6°
  • Field Angle: 8.7° to 36.9°
  • Zoom Angle: 8.7° to 36.9°
  • Lumens - Source: 21,000
  • Lumens - Output: 9,436
  • Illuminance (7°): 25,120 lux @ 5 m
  • Illuminance (33°): 1,727 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz



Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 7 + open (7 metal), continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (rotating): 26 mm (outside), 22 mm (image), 1.2 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4



Construction / Physical

  • Dimensions: 15.5 x 9.8 x 25.0 in (394 x 250 x 636 mm)
  • Weight: 60 lb (27.2 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: Art-Net, sACN, DMX, W-DMX
  • DMX Channels: 22 or 29
  • Art-Net Channels: 22 or 29
  • Modes/Personalities: 2 personalities (22, 29)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 592 W, 5.07 A @ 120 V, 60 Hz
  • Power and Current: 555 W, 2.74 A @ 208 V, 60 Hz
  • Power and Current: 536 W, 2.47 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location



What's Included



Optional Accessories

Download Product Specs
