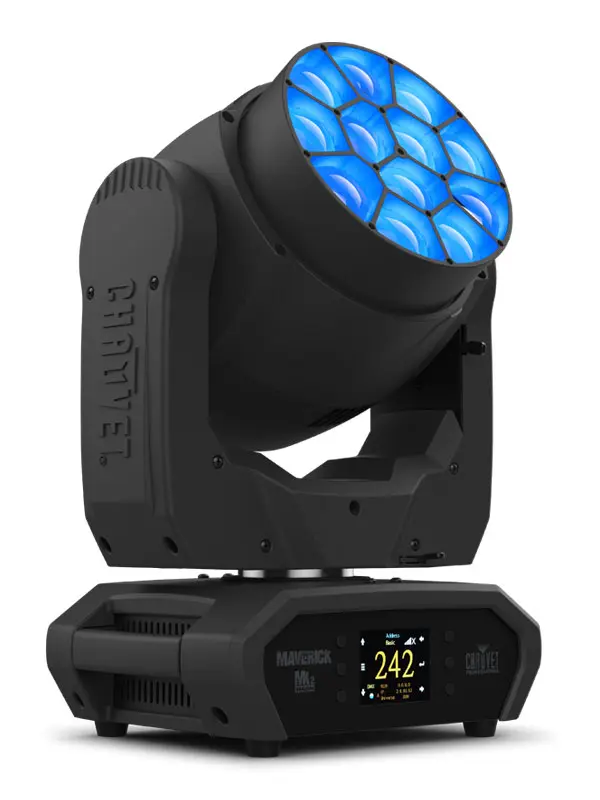

Chauvet Maverick MK2 Wash - 12 x 40w RGBW LED

Chauvet Maverick MK2 Wash - 12 x 40w RGBW LED

https://odoo.showtools.com.au/web/image/product.template/19358/image_1920?unique=238f3c7
Maverick MK2 Wash rewrites the rules on wash fixtures with its flawlessly even output, custom designed optics, full pixel mapping, virtual gobo wheel with background colors, pre-programmed colors and 4.7° – 65.5° zoom range. Powered by 12 (40 W) Osram RGBW LEDs, it can handle any application, even aerial washing, with ease. Take control with DMX, sACN, Art-Net, Kling-Net or W-DMX.

$ 7,134.85 7134.85 AUD $ 7,134.85 Tax Included

$ 7,134.85 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
  • Virtual Color wheel with instantaneous access to 21 colors
  • Built in colors for quick design possibilities
  • Built in virtual gobo wheel with background colors for impressive atmospheric effects fast movement of pan, tilt, and zoom
  • Quiet operation for a wide range of installation situations
  • DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
  • 4.7° - 65.5° Zoom range for variable beam sizes
  • User selectable calibrated white for 7500 K at full output
  • True 1 compatible power input
  • Battery backup display with auto rotate depending on fixture orientation
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

Optical

  • Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: : 4.7° to 37.5°
  • Field Angle: 7.9° to 55.1°
  • Cutoff Angle: 9.2° to 65.5°
  • Zoom Range: 4.7° to 65.5°
  • Lumens – Source: 8,800
  • Lumens – Output: 5,900
  • Illuminance (7.9°): 19,972 lux @ 5 m
  • Illuminance (55.1°): 807 lux @ 5 m
  • PWM Frequency: 600 Hz, 1,200 Hz, 2,000 Hz, 6,000 Hz, 15,000 Hz



Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Curves: 4



Construction / Physical

  • Dimensions: 12.72 x 9.17 x 18.54 in (323 x 233 x 471 mm)
  • Weight: 32.8 lb (14.8 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer



Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input/Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
  • DMX Channels Single Mode: 20, 69, 115
  • DMX Channels Dual Mode – Function: 8, 20, 26
  • DMX Channels Dual Mode – Pixel: 36, 48, 60
  • Art-Net Channels Single Mode: 20, 69, 115
  • Art-Net Channels Dual Mode – Function: 8, 20, 26
  • Art-Net Channels Dual Mode – Pixel: 36, 48, 60



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 503 W, 4.08 A @ 120 V, 60 Hz
  • Power and Current: 506 W, 2.33 A @ 208 V, 60 Hz
  • Power and Current: 509 W, 2.17 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location



What's Included

  • MK2 Wash
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware



Required Accessories
