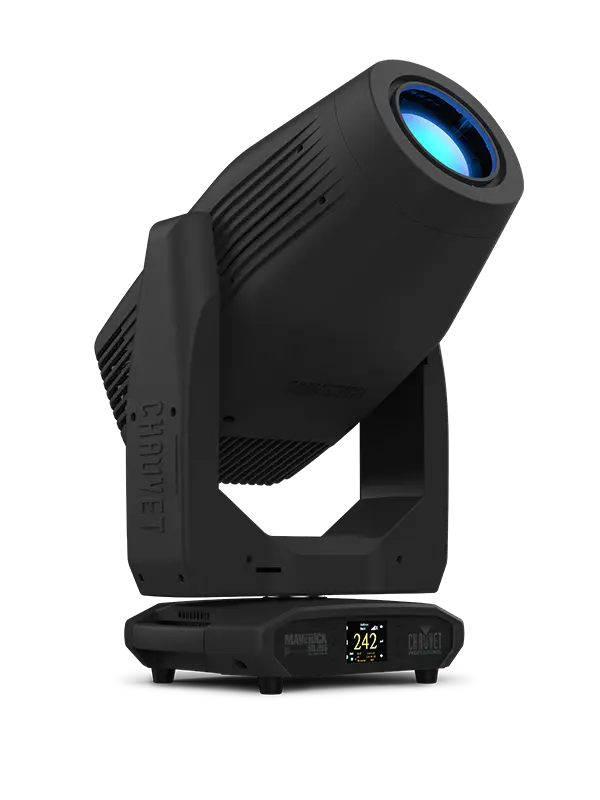

Chauvet Maverick Silens 2X Profile

Chauvet Maverick Silens 2X Profile

https://odoo.showtools.com.au/web/image/product.template/1827/image_1920?unique=238f3c7
Powerful member of our award-winning Silens range. 760W 94+ CRI LED source in an uncompromising design that offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. Featuring dual gobo wheels (rotating + static), variable CMY + CTO and a full effects wheelhouse.  Control via Art-Net, sACN, DMX, RDM or CRMX.

$ 22,862.00 22862.0 AUD $ 22,862.00 Tax Included

$ 22,862.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Completely silent, fully featured 760 W 94+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
  • 100% convection cooled for zero fan noise along with silent motion and effects
  • 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
  • Variable CMY + CTO color mixing system to create a wide pallet of colors
  • One rotating and one static gobo wheel with unique, theatrical based designs
  • Interchangeable gobos between rotating and static wheels
  • Variable frost system
  • + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
  • Animation wheel for enhanced visual effects
  • Iris for total beam control
  • RDM control over DMX for fixture reporting
  • 5.5° to 57.9° zoom angle for variable beam sizes
  • True 1 compatible power input and throughput
  • Battery backup display with auto-rotate depending on fixture orientation

Optical

  • Light Source: 1 LEDs (CW) 750 W, (12 A), 6331 K, 30,000 hours life expectancy
  • Light Source: 1 LED (RGB) 13 W, (3.7 A), 50,000 hours life expectancy
  • Color Temperature (at full): 6317 K
  • CRI: 94.8
  • TM-30 Rf: 93.2
  • TM-30 Rg: 101.5
  • Front Lens Diameter: 138mm
  • Beam Angle: 5.5° to 49.9°
  • Field Angle: 6° to 53.1°
  • Zoom Range: 5° to 58°
  • Cutoff Angle: 6.2° to 57.9°
  • Zoom Range: 5.5° to 57.9°
  • Lumens – Output: 12,748
  • Illuminance (5.5°): 30,672 lux @ 5 m
  • Illuminance (57.9°): 697 lux @ 5 m
  • Selectable PWM: 20,000, 40,000



Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 6 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag, color correction
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 26.9 mm (outside), 22 mm (image)
  • Gobo Size: Gobo Wheel 2: 26.9 mm (outside), 22 mm (image)
  • Effect Wheel: 1 effect
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Variable Frost - Motorized
  • Iris: Motorized – 15 Leaf
  • Prism: 5 Facets, round, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4



Construction / Physical

  • Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
  • Weight: 75.5 lb. (34.4 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant Polymer

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
  • DMX Channels: 32, 33, 41 or 42
  • Art-Net Channels: 32, 33, 41 or 42
  • Modes/Personalities: 4 personalities (32, 33, 41, and 42)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
  • Power and Current: 650 W, 6.53 A @ 100 V, 60 Hz
  • Power and Current: 640 W, 5.45 A @ 120 V, 60 Hz
  • Power and Current: 639 W, 3.10 A @ 208 V, 60 Hz
  • Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
  • Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • Maverick Silens 2 Profile
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Gel Frame Holder and Gel Frame



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-08
  • IP Rated Seetronic® Powerkon Extensions
  • DMX cables
  • Ethernet cables
