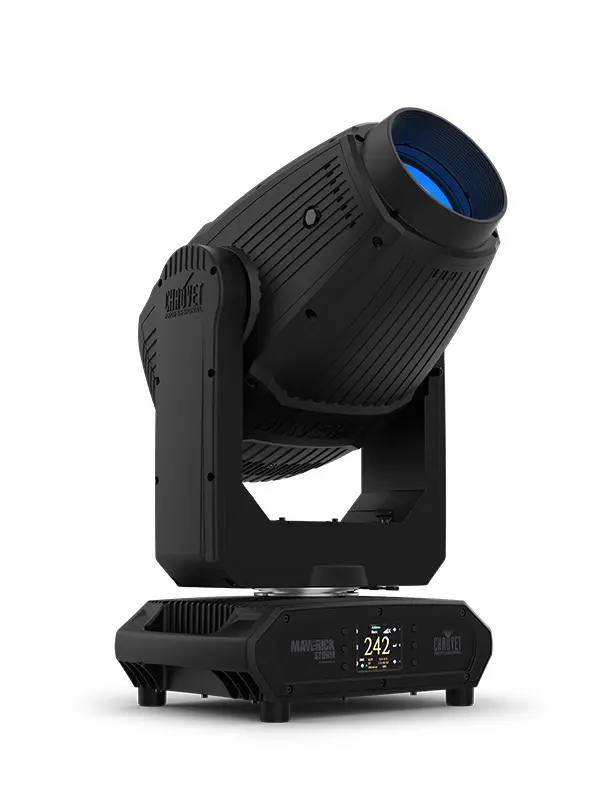

Chauvet Maverick Storm 2 Profile

Maverick Storm 2 Profile fits a full armory of features into the lightest midsized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,000 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5 degree beam, and freely create with a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.

$ 18,505.00 18505.0 AUD $ 18,505.00 Tax Included

$ 18,505.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Fully featured, compact and lightweight IP65 580 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 10:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, integrated sun shield
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
CRI and CTB filters on color wheel for added flexibility
One rotating, indexing and interchangeable slot and lock gobo wheel
One rotating static gobo wheel
DMX , WDMX, sACN, and Art-Net for full flexibility of control options
RDM control over DMX for fixture reporting
6.3° to 58.6° zoom range for variable beam sizes
Iris, 5-facet prism and frost for beam control
True 1 compatible power input
Integrated sun shield for protecting the optical path from sunlight when the fixture is off
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation

Optical

Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy
Color Temperature (at full): 6963 K
CRI: 71.3
CRI with CRI Filter: 89.1
Front Lens Diameter: 127 mm
Beam Angle: 6.3° to 42.6°
Field Angle: 7.9° to 54.7°
Cutoff Angle 8.2° to 58.6°
Zoom Range: 5.5° to 58.6°
Lumens – Source: 35,000
Lumens – Output: 28,534
Illuminance (6.3°) 71,933 lux @ 5 m
Illuminance (58.6°) 2,580 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (glass), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
Framing Shutter rotation: +/- 60° rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

Construction / Physical

Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
Weight: 67.0 lb (30.4 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Connections

Power Connection: Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 32 or 48
Art-Net Channels: 32 or 48
Modes/Personalities: 2 personalities (32, 48)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
Breaker Size: F15 A, 250 V

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Noise Level (Idle): 34.4 dB(A) @ 1 m
Noise Level (Max): 42.4 dB(A) @ 1 m
Noise Level (ECO): 41.3 dB(A) @ 1 m
Noise Level (Auto): 41.9 dB(A) @ 1 m
Noise Level (Full): 51.1 dB(A) @ 1 m
Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Maverick Storm 2 Profile
Seetronic Powerkon IP65 power cord to Edison
Omega bracket with mounting hardware

Optional Accessories

Professional Clamps : CTC-50HC, CTC-50HCN
Safety Cable: SC-08
DMX Cables
IP Rated Seetronic® Powerkon Extensions
UPLOAD 08 software uploader
Micro T-1 TRX G5 WDMX Transceiver
FLIGHT CASE TBA

Download Product Specs
