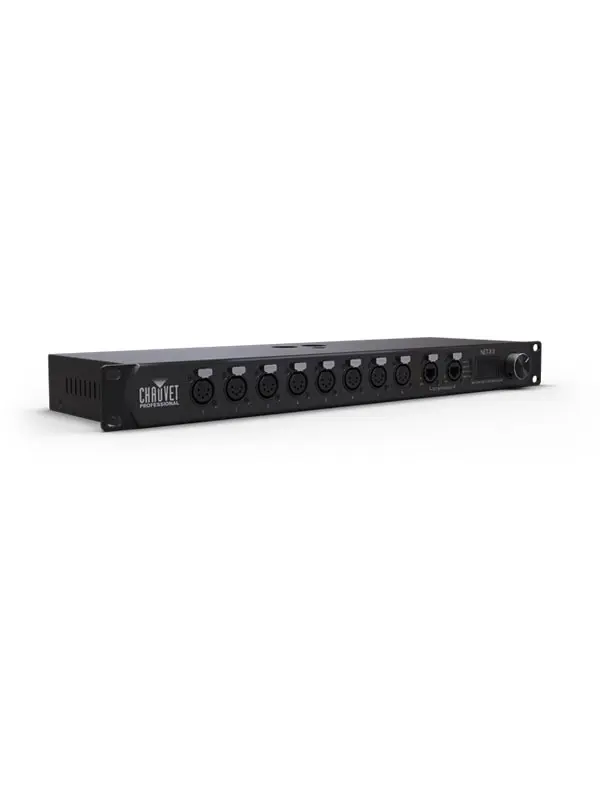

Chauvet Net-X II

Chauvet Net-X II

https://odoo.showtools.com.au/web/image/product.template/1957/image_1920?unique=238f3c7
Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs – all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.

$ 1,691.00 1691.0 AUD $ 1,691.00 Tax Included

$ 1,691.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • 5-pin DMX splitter/distributor
  • Art-Net/sACN to DMX converter, up to 8 universes
  • DMX to Art-Net/sACN converter, up to 8 universes
  • Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
  • HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
  • Backup settings and configurations with same or other NET-X IIs
  • Webserver supported for remote configuration and backup/update
  • Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones, 1 at a time, using the 5-wire Phoenix cold contacts on the rear of the unit
  • Supports RDM over Art-Net for remote fixture management

Construction / Physical

  • Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
  • Weight: 4.6 lb (2.1 kg)
  • Threaded Bolt: M12
  • Exterior Color: Black
  • Housing Material: Steel
  • Rackmount: 1U



Connections

  • Power Connection: Edison (Local) plug to Seetronic powerKON
  • Power Input: Seetronic powerKON
  • Device Data Inputs: Seetronic powerKON® (1 total) and 5-pin XLR (2 total)
  • Device Data Outputs/Inputs (Assignable): 5-pin XLR (8 total)
  • Device Date Throughputs: Seetronic etherKON (1 total)
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: Art-Net, DMX, sACN
  • Merge Support: Yes
  • Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
  • Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
  • Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • Net-X II
  • Seetronic powerKON power cord
  • Phoenix connector



Required Accessories

  • Compatible Mounting Options: M12 Bolt/Clamp



Optional Accessories
