Chauvet Discontinued - Chauvet Nexus 4x4 Panel

Chauvet Discontinued - Chauvet Nexus 4x4 Panel

https://odoo.showtools.com.au/web/image/product.template/19355/image_1920?unique=c6eb7fa

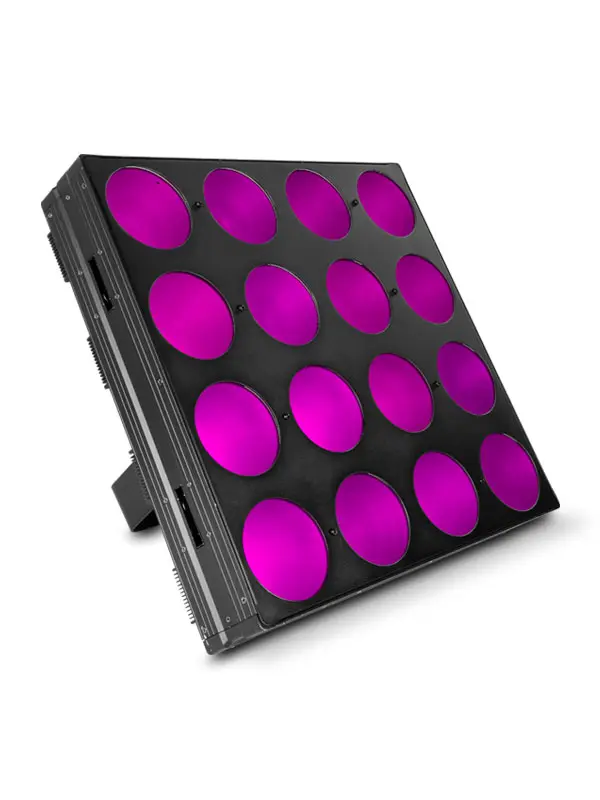

Nexus 4×4 is an award winning LED wash panel combining the sizzle of pixel mapping and a robust light output afforded by 16 27 W COB tri-colored LEDs. The combination of COB emitters and a clever reflector design yields a striking, diffused light richly drenched in saturated hues. Nexus 4×4 is controllable via Art-Net, Kling-Net and DMX protocols and features interlocking hardware to build large arrays. Whether in use for front viewing or as a backdrop, Nexus 4×4 promises a hard-to-match visual impact.

$ 2,871.76 2871.76 AUD $ 2,871.76 Tax Included

$ 2,871.76 Tax Included

Not Available For Sale

This combination does not exist.

Panels Lighting
Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Pixel-mapping RGB blinder allows you to achieve vibrant colors with bright COB LEDs
  • Increase pixel mapping options by controlling pixels individually
  • Build large arrays by linking multiple panels together with integrated locks
  • Works seamlessly with Nexus 2x2 and Nexus 4x1
  • Design with flexible control options: Kling-Net, Art-Net, or DMX
  • Use universal power connectors: Neutrik powerCON, Neutrik etherCON, 3- and 5-pin XLR DMX

Optical

  • Light Source: 16 LEDs (tri-color RGB) 27 W, (2 A), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 45°
  • Field Angle: 75°
  • Illuminance (total): 484 lux @ 5 m
  • Pixels: 4 x 4
  • Pixel Pitch: 115 mm
  • Pixel Density: 64/m2



Dynamic Effects

  • Dimmer: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Built-in Automated Programs: Yes



Construction / Physical

  • Dimensions (single unit): 18.07 x 6.61 x 18.07 in (462 x 168 x 462 mm)
  • Dimensions (roadcase): 37.99 x 20.67 x 27.56 in (965 x 525 x 700 mm)
  • Weight (single unit): 28.6 lb (13 kg)
  • Weight (roadcase): 81.6 lb (37 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy and steel



Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR, Neutrik etherCON
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, Kling-Net, DMX
  • DMX Channels: 3, 5, 9, 48 or 53
  • Art-Net Channels: 48



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current: 401 W, 3.35 A @ 120 V, 60 Hz
  • Power and Current: 393 W, 1.90 A @ 208 V, 50 Hz
  • Power and Current: 394 W, 1.71 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
