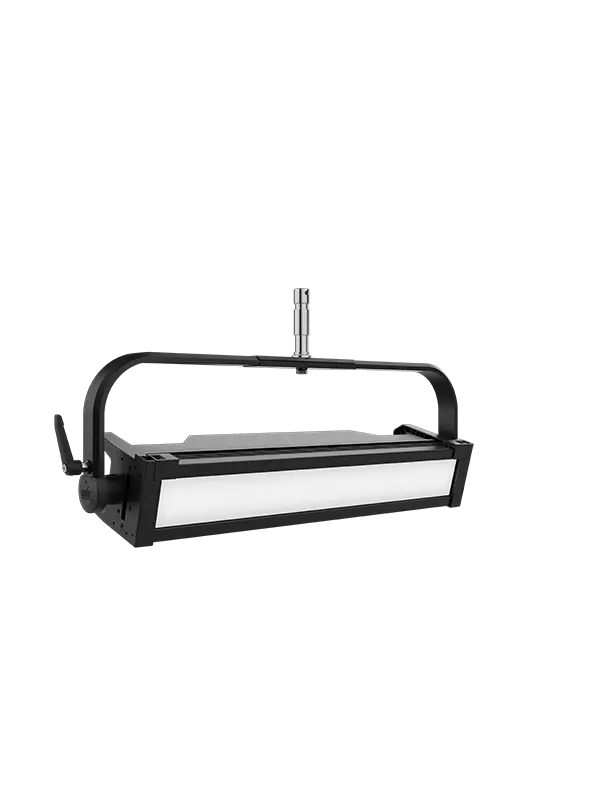

Chauvet OnAir Panel 3 IP

Chauvet OnAir Panel 3 IP

https://odoo.showtools.com.au/web/image/product.template/1904/image_1920?unique=4858d3a

onAir Panel 3 IP is a rugged IP65 full-spectrum low-profile 1×3 format LED soft light capable of facing all of the elements, indoors or out. Ready to go on location for any broadcast setting, onAir IP Panel 3 features a superior quality of white light with high CRI/TLC and TM-30 scores, a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, the ability to produce a pop of color to achieve the exact look you are aiming to create, along with built-in customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket. Drop-in slot for diffusers and intensifier filters ensures ease of use when changing accessories. Adjustable PWM ensures camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs. DMX, RDM, CRMX, Art-Net, sACN, and onboard control options make for flexible operation.

$ 3,972.00 3972.0 AUD $ 3,972.00 Tax Included

$ 3,972.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Full-spectrum LED linear format soft light panel style fixture for broadcast, film, and special events
  • IP65 rating for all weather use indoors or out.
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
  • Easily switch mounting options from jr pin to omega bracket
  • Drop-in slot for diffusers and intensifier filter (sold separately)
  • Rugged design for years of rough use in the most extreme conditions.
  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
  • USB port for fixture software updates
  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Optical

  • Light Source: 120 LEDs (tri-color RGB) 1.5 W, (282 mA), 50,000 hours life expectancy.
  • Light Source: 120 LEDs (WW) 0.5 W, (113 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 5527K
  • CRI (3200 K): 91.2
  • Beam Angle (No Optics): 111.3°
  • Beam Angle (Light Filter): 96.7°
  • Beam Angle (Medium Filter): 97.8°
  • Beam Angle (Heavy Filter): 108.2°
  • Beam Angle (Intensifier Filter): 74.4°
  • Field Angle (No Optics): 153.9°
  • Field Angle (Light Filter): 149°
  • Field Angle (Medium Filter): 158.4°
  • Field Angle (Heavy Filter): 162°
  • Field Angle (Intensifier Filter): 135.2°
  • Lumens (No Optics): 8080
  • Lumens (Light Filter): 6896
  • Lumens (Medium Filter): 6317
  • Lumens (Heavy Filter): 5964
  • Lumens (Intensifier Filter): 5498
  • Illuminance (No Optics): 143 lux @ 5 m
  • Illuminance (Light Filter): 134 lux @ 5 m
  • Illuminance (Medium Filter): 110 lux @ 5 m
  • Illuminance (Heavy Filter): 91 lux @ 5 m
  • Illuminance (Intensifier Filter): 141 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes



Construction / Physical

  • Dimensions: 11.2 x 33.75 x 4.75 in (284.48 x 857.25 x 120.65 mm)
  • Weight: 26 lb (12 kg)
  • Exterior Color: Black
  • Housing Material: Die-Cast Magnesium

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Input: Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Power Input: 28 VDC, 3-pin IP65 XLR
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: Type-C USB



Control

  • Control Protocol: Art-Net, sACN, DMX, WDMX, CRMX, RDM
  • DMX Channels: 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended
  • Art-Net Channels: 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended
  • Modes/Personalities: 14 personalities (1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V
  • Power and Current: 167 W, 1.392 A @ 120 V, 60 Hz
  • Power and Current: 160 W, 0.823 A @ 208 V, 60 Hz
  • Power and Current: 157 W, 0.747 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -13 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • onAir Panel 3 Slim IP
  • Seetronic Powercon IP65 power cord
  • Omega bracket with mounting hardware
  • onAir Panel 3 IP Medium Diffusion Filter
  • TV Junior Spigot



Optional Accessories

  • onAir Panel 3 IP Studio Barndoor
  • onAir Panel 3 IP 60 deg Honeycomb
  • onAir Panel 3 IP 30 deg Honeycomb
  • onAir Panel 3 IP Medium, Light and Heavy Filters
  • onAir Panel 3 IP Intensifier Filter
  • onAir Panel 3 IP Pole Op Yoke
  • Professional Clamps : CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin IP DMX Cables
  • Ethernet Cables
