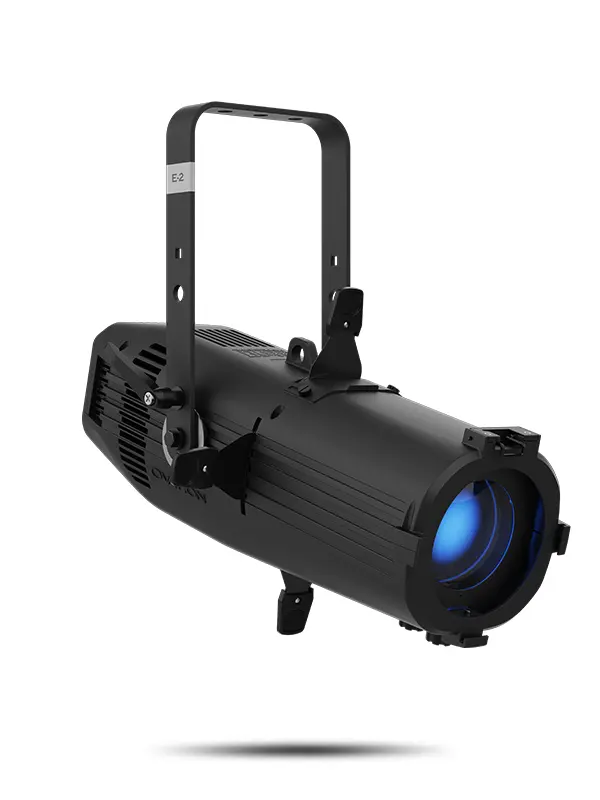

Chauvet Ovation E-2FC

Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.

$ 3,237.00 3237.0 AUD $ 3,237.00 Tax Included

$ 3,237.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Full-spectrum LED ERS-style lighting fixture for small theaters and studios
Integrated 25-50deg Zoom lens
Color temperature presets from 2800 K to 8000 K with high CRI and CQS
+/- Green adjustment and emulated red-shift via DMX or on-board control
Dedicated focus mode button for one-touch activation for focusing without a board-op.
Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme
USB port for fixture software updates

Optical

Light Source: 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 4525 K
CRI (3200 K): 93
Beam Angle Spot: 23.8°
Beam Angle Flood: 46.4°
Beam Angle 50% Zoom: 38.7°
Field Angle Spot: 25.6°
Field Angle Flood: 51°
Field Angle 50% Zoom: 41.3°
Cutoff Angle Spot: 24.9°
Cutoff Angle Flood: 51.8°
Cutoff Angle 50% Zoom: 41.9°
Zoom Range: 23.8° to 51.8°
Lumens (Spot) : 3708 lm
Lumens (Flood) : 5608 lm
Lumens (50% Zoom) : 5147 lm
Illuminance (Spot) : 1107 lux @ 5 m
Illuminance (Flood) : 488 lux @ 5 m
Illuminance (50% Zoom) : 595 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Focus: Manual
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)
Weight: 14.8 lb (6.7 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
Gobo Size (Optional): “M”: 66 mm (outside), 48 mm (image), 2 mm (max. thickness)

Connections

Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Input: Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB

Control

Control Protocol: DMX, RDM
DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Power and Current: 208 W, 1.71 A @ 120 V, 60 Hz
Power and Current: 219 W, 1.10 A @ 208 V, 60 Hz
Power and Current: 220 W, 0.98 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation E-2FC
Seetronic Powerkon power cord
Ovation Metal Gobo Holder (“M” Size)
Soft Focus Filter
Quick Reference Guide or User Manual

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Ovation E-2 Iris (Model: OVE2IRIS)
Seetronic Powerkon power linking cables
5-pin DMX Cables

ORDERING INFO

Item Code: 03121951

Download Product Specs
