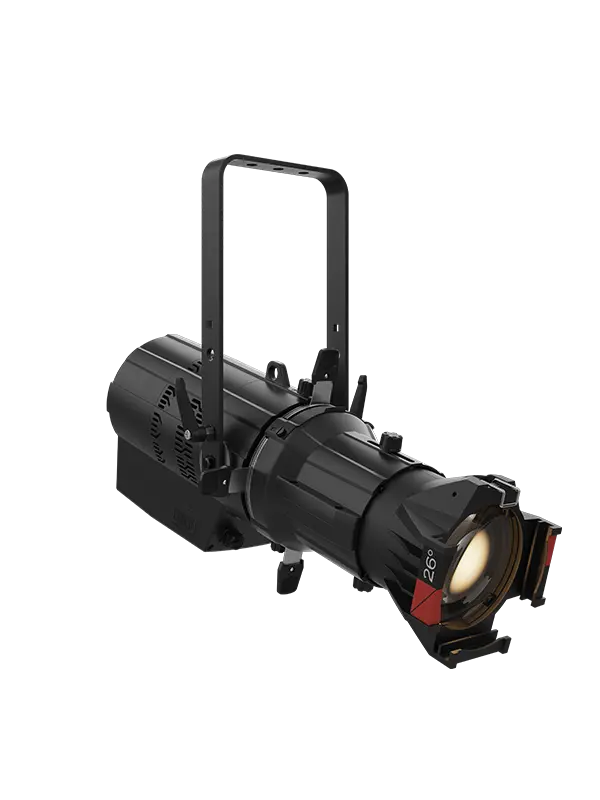

Chauvet Ovation E-4WW IP

Chauvet Ovation E-4WW IP

https://odoo.showtools.com.au/web/image/product.template/1896/image_1920?unique=decd7a7
Designed to perform as the brightest outdoor-rated LED ellipsoidal fixture available anywhere, capable of projecting an even field of high CRI light for superior gobo projection with exceptionally long reach. Compatibility with standard Ovation lenses, integrated GR-1 Gobo Rotator power/data port, and dedicated Focus Mode button make for convenient operation. 3000K Warm White output with smooth 16-bit dimming to the very bottom of selectable dimming curves along with selectable PWM ensure brilliant performance both live and on camera.

$ 4,410.00 4410.0 AUD $ 4,410.00 Tax Included

$ 4,410.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Warm white ERS-style fixture with exceedingly bright output
  • Fully IP65 rated for seasonal use indoors or out
  • Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
  • Ultra-smooth 18-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
  • Flat, even field of light for superior gobo projection with tremendous color rendering
  • Dedicated power/data port for Ovation GR-1 Gobo Rotator

Optical

  • Light Source: 1 LED (WW) 400W, 50,000 hours life expectancy
  • Color Temperature (at full): 3200 K
  • CRI: 97.8
  • Beam Angle (w/5° lens): 6.9°
  • Beam Angle (w/10° lens): 9.9°
  • Beam Angle (w/14° lens): 13.6°
  • Beam Angle (w/19° lens): 17°
  • Beam Angle (w/26° lens): 18.9°
  • Beam Angle (w/36° lens): 25.2°
  • Beam Angle (w/50° lens): 38.7°
  • Beam Angle (w/15°–30° lens)(Narrow): 12.3°
  • Beam Angle (w/15°–30° lens)(Wide): 20.1°
  • Beam Angle (w/25°–50° lens)(Narrow): 21.2°
  • Beam Angle (w/25°–50° lens)(Wide): 29.2°
  • Field Angle (w/5° lens): 9.3°
  • Field Angle (w/10° lens): 12.5°
  • Field Angle (w/14° lens): 16.6°
  • Field Angle (w/19° lens): 21°
  • Field Angle (w/26° lens): 27.1°
  • Field Angle (w/36° lens): 36.1°
  • Field Angle (w/50° lens): 53.1°
  • Field Angle (w/15°–30° lens)(Narrow): 17.1°
  • Field Angle (w/15°–30° lens)(Wide): 30.4°
  • Field Angle (w/25°–50° lens)(Narrow): 28.1°
  • Field Angle (w/25°–50° lens)(Wide): 41.4°
  • Dimming Modes: 4
  • Lumens (w/5° lens): 13,989
  • Lumens (w/10° lens): 16,250
  • Lumens (w/14° lens): 17,524
  • Lumens (w/19° lens): 16,766
  • Lumens (w/26° lens): 21,213
  • Lumens (w/36° lens): 21,219
  • Lumens (w/50° lens): 20,831
  • Lumens (w/15°–30° lens)(Narrow): 15,302
  • Lumens (w/15°–30° lens)(Wide): 19,171
  • Lumens (w/25°–50° lens)(Narrow): 21,049
  • Lumens (w/25°–50° lens)(Wide): 20,936
  • Illuminance (w/5° lens): 45,552 lux @ 5 m
  • Illuminance (w/10° lens): 25,479 lux @ 5 m
  • Illuminance (w/14° lens): 15,080 lux @ 5 m
  • Illuminance (w/19° lens): 9,627 lux @ 5 m
  • Illuminance (w/26° lens): 8,883 lux @ 5 m
  • Illuminance (w/36° lens): 4,983 lux @ 5 m
  • Illuminance (w/50° lens): 2,199 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 15,632 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 6,829 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 7,668 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 3,733 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25KHz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Electronic
  • Strobe Rate: 0 to 30 Hz
  • Color Temperature Presets: No
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions (fixture only): 19.5 x 11.2 x 19.2 in (496 x 284.9 x 487 mm)
  • Dimensions (w/5° lens extended): 40.4 x 14.5 x 19.2 in (1026 x 368 x 487 mm)
  • Dimensions (w/10° lens extended): 32.2 x 12.4 x 19.2 in (817 x 314 x 487 mm)
  • Dimensions (w/14° lens extended): 28.9 x 11.9 x 19.2 in (734 x 302 x 487 mm)
  • Dimensions (w/19° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
  • Dimensions (w/26° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
  • Dimensions (w/36° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
  • Dimensions (w/50° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
  • Dimensions (w/15°–30° lens): 32.3 x 11.9 x 19.2 in (820 x 302 x 487 mm)
  • Dimensions (w/25°–50° lens): 25.1 x 11.9 x 19.2 in (637 x 302 x 487 mm)
  • Weight (fixture only): 21.6 lb (9.79 kg)
  • Weight (w/5° lens): 26.4 lb (11.9 kg)
  • Weight (w/10° lens): 24.8 lb (11.2 kg)
  • Weight (w/14° lens): 26.8 lb (12.1kg)
  • Weight (w/19° lens): 25.6 lb (12.1kg)
  • Weight (w/26° lens): 25.6 lb (12.1kg)
  • Weight (w/36° lens): 25.6 lb (12.1kg)
  • Weight (w/50° lens): 25.6 lb (12.1kg)
  • Weight (w/15°–30° lens): 30.4 lb (13.7kg)
  • Weight (w/25°–50° lens): 27.4 lb (12.4kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)



Connections

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 2, 3, 4, or 7
  • Modes/Personalities: 4 personalities (2, 3, 4, 7)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V; 7 units @ 240 V
  • Power and Current: 433 W, 4.34 A @ 100 V, 60 Hz
  • Power and Current: 428 W, 3.57 A @ 120 V, 60 Hz
  • Power and Current: 416 W, 2.0 A @ 208 V, 60 Hz [
  • Power and Current: 416 W, 1.81 A @ 230 V, 50 Hz
  • Power and Current: 413 W, 1.73 A @ 240 V, 60 Hz



Certifications / Qualifications

  • CE, MET, UKCA, RoHS
  • IP Rating: IP65, temporary outdoor/wet use
  • Noise Level (Idle): 21.1 dB(A) @ 1 m
  • Noise Level (Auto): 31.2 dB(A) @ 1 m
  • Noise Level (On): 33.1 dB(A) @ 1 m
  • Noise Level (Off): 13.2 dB(A) @ 1 m
  • Noise Level (Silent): 21.6 dB(A) @ 1 m



What's Included

  • Ovation E-4WW IP
  • Seetronic Powerkon IP65



Required Accessories

  • Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • TRUE1 Style Power Extension Cables
  • 5-pin IP65 DMX Cables
  • RDM2go
  • Ovation Glass Gobo Holder
  • Ovation Metal Gobo Holder
  • Ovation Iris
  • Ovation GR-1 IP Gobo Rotator

Download Product Specs
