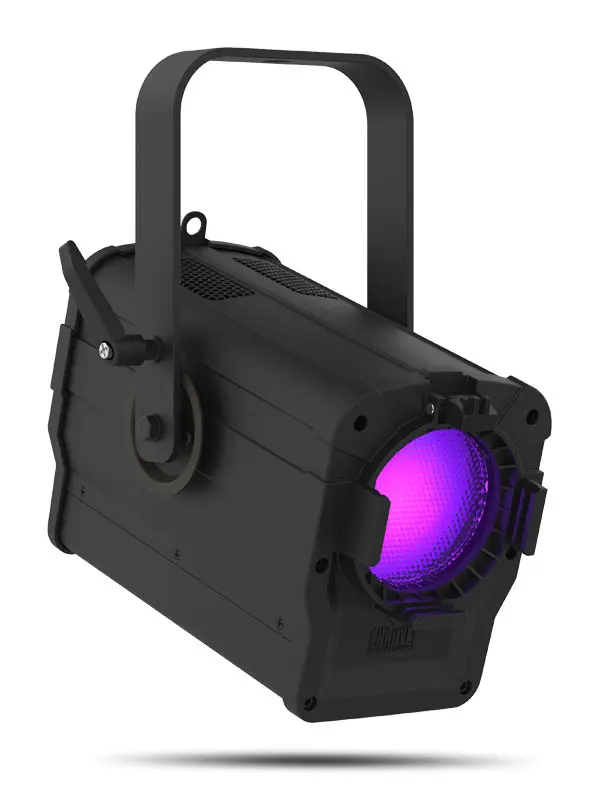

Chauvet Ovation F-55FC

Ovation F-55FC is a full color RGBAL LED (3-inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. Our handy Virtual Color Wheel and Color Temperature presets are shared from our other full color Ovation fixtures. A manual zoom with a 18° – 87° field range allows you to add a beautifully soft field of light where needed.

$ 1,352.00 1352.0 AUD $ 1,352.00 Tax Included

$ 1,352.00 Tax Included

This combination does not exist.

Add to cart

Fresnels

Terms and Conditions

At a Glance

Compact, full color fresnel for tight spaces and on-location lighting
16-bit dimming resolution for smooth fades
Soft and even field of light
Virtually silent operation for use in any situation
Manually controlled variable zoom range between 18° to 87°

Optical

Light Source: 15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4 W, (700 mA), 3779 K, 50,000 hours life expectancy
Color Temperature (at full): 3779 K
CRI (3200 K): 91
Beam Angle: 18° to 67°
Field Angle: 32° to 87°
Zoom Range: 18° to 87°
Lumens (30°): 114
Lumens (69°): 462
Illuminance (32°) : 36 lux @ 5 m
Illuminance (73°): 18 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 9.64 x 4.64 x 6.53 in (245 x 118 x 166 mm)
Weight: 5.4 lb (2.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel
Accessory Holder/Gel Frame Size: 3.25 in (83 mm)

Connections

Power Connection: Edison plug to hard-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR
Cable Length (signal): 1.79 ft (0.54 m)
Cable Length (power): 3.5 ft (1.07 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 3, 5, 7, 10, 12, 13 or 15
Modes/Personalities: 8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 28 W, 0.392 A @ 120 V, 60 Hz
Power and Current: 27 W, 0.243 A @ 208 V, 60 Hz
Power and Current: 27 W, 0.224 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location

What's Included

Ovation F-55FC
Gel Frame

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F3.25” Barndoor

ORDERING INFO

Item Code: 03031384

Download Product Specs
