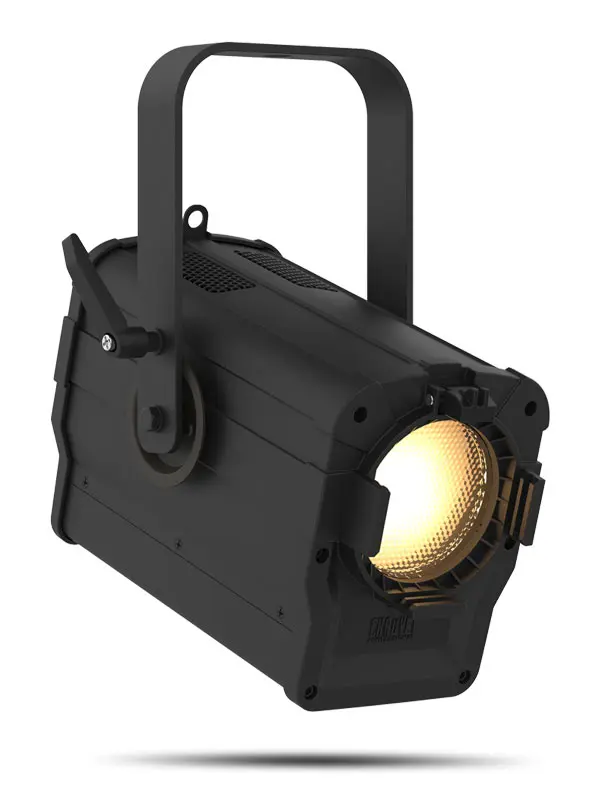

Chauvet Ovation F-55WW

Chauvet Ovation F-55WW

https://odoo.showtools.com.au/web/image/product.template/1972/image_1920?unique=5476c62
Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios and theatres. It projects a bright, beautifully soft field of light within a 20°- 75° field range controlled by a manual zoom.

$ 1,150.00 1150.0 AUD $ 1,150.00 Tax Included

$ 1,150.00 Tax Included

Not Available For Sale

This combination does not exist.

Fresnels
Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Compact warm white Fresnel for tight spaces and on-location lighting
  • Soft and even field of light
  • 16-bit dimming resolution for smooth fades
  • Virtually silent operation for use in any situation
  • Manually controlled variable zoom range between 20° to 75°

Optical

  • Light Source: 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3120 K
  • CRI: 92.5
  • Beam Angle: 20.1° to 61.4°
  • Field Angle: 31.5° to 75.1°
  • Zoom Range: 20° to 75°
  • Lumens (31.5°): 959
  • Lumens (75.1°): 2,243
  • Illuminance (31.5°) : 313 lux @ 5 m
  • Illuminance (75.1°): 97 lux @ 5 m



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: No
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz



Construction / Physical

  • Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
  • Weight: 4.8 lb (2.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 3.25 in (83 mm)



Connections

  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR
  • Cable Length (signal): 1.79 ft (0.54 m)
  • Cable Length (power): 3.5 ft (1.07 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2 or 5
  • Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 33 W, 0.285 A @ 120 V, 60 Hz
  • Power and Current: 33 W, 0.178 A @ 208 V, 60 Hz
  • Power and Current: 34 W, 0.155 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location



What's Included

  • Ovation F-55WW
  • Gel Frame



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F3.25” Barndoor



ORDERING INFO

  • Item Code: 03031385

Download Product Specs
