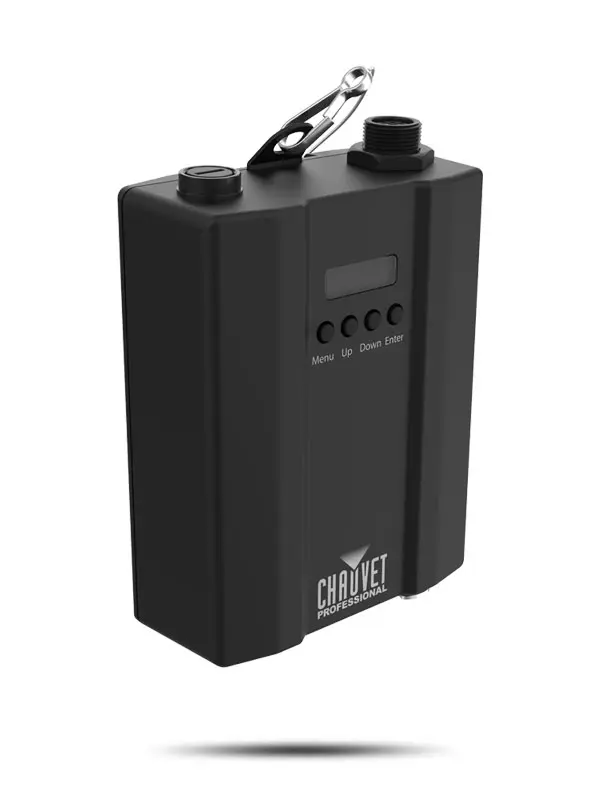

Chauvet Ovation GR1 Adaptor

Ovation GR-1 Adapter allows the outdoor rated Ovation GR-1 IP gobo rotator to function with any ERS-style fixture! The durable, power and data interface adapter is lightweight and can be easily mounted and secured to the yoke of any ERS-style fixture. Power up the adapter for the Ovation GR-1 IP via powerCON output and DMX in and thru is also available for easy control from your console.

$ 586.00 586.0 AUD $ 586.00 Tax Included

$ 586.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Power and data interface to adapt Ovation GR-1IP to any ERS-style fixture
Utilize power from powerCON output of the ERS-style fixture
Easily secure to the yoke of the ERS-style fixture
On-board display for simple manual operation or DMX addressing
5-pin DMX in and thru for easy control from your console
Requires Ovation GR-1 IP for operation (sold separately)

Construction / Physical

Dimensions: 3.7 x 2.1 x 5.3 in ( 95 x 53.1 x 135.7 mm)
Weight: 0.6 lb (0.3 kg)
Exterior Color: Black
Housing Material: High-impact, flame retardant polymer, Steel

Connections

Power Connection: Neutrik powerCON linking
Data Connectors: 5-pin XLR
Cable Length (power): 2ft 6 in (0.792 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 1
Modes/Personalities: 1 personalities (1Ch)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 6 W, .092 A @ 120 V, 60 Hz
Power and Current: 5 W, .063 A @ 208 V, 60 Hz
Power and Current: 5 W, .060 A @ 230 V, 50 Hz

Certifications / Qualifications

CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation GR-1 Adapter
Neutrik powerCON power linking cord
