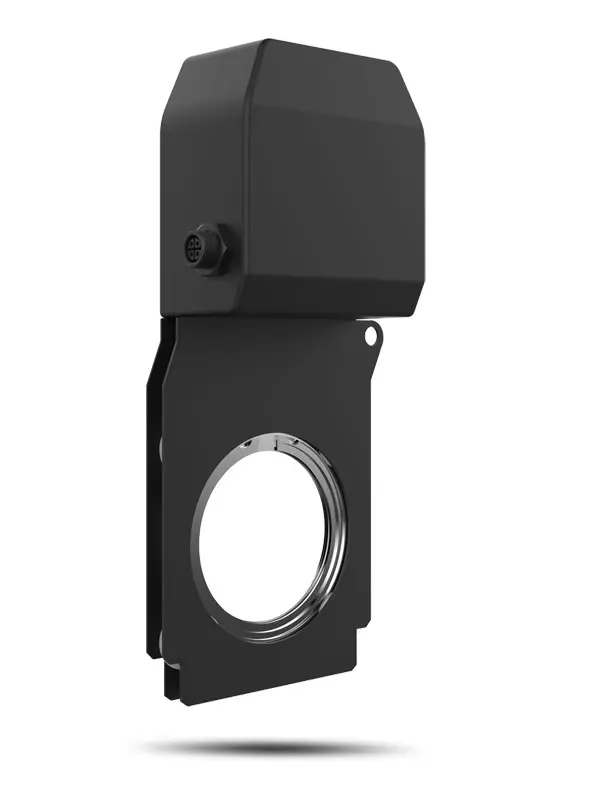

Chauvet Ovation GR1-IP IP65 Rated Gobo Rotator

Ovation GR-1 IP is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality.

$ 556.00 556.0 AUD $ 556.00 Tax Included

$ 556.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

IP65 rated gobo rotator for one single or two counter-rotating gobos
Fully controllable via the Ovation E-260WW IP control personalities
Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
Fully indexable positioning via DMX
Dedicated power/control supplied by the Ovation E-260WW IP
Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering

Dynamic Effects

Gobos size: B (metal, glass or effect)
Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)

Construction / Physical

Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)
Weight: 2.4 lb (1.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast

Connections

Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
Cable Length (power/data): 19 in/483 mm

Control

Control Protocol: DMX
DMX Channels: 1

Electrical

Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)

Certifications / Qualifications

CE
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

Ovation GR-1 IP
Power & Data Control Cable

Download Product Specs
