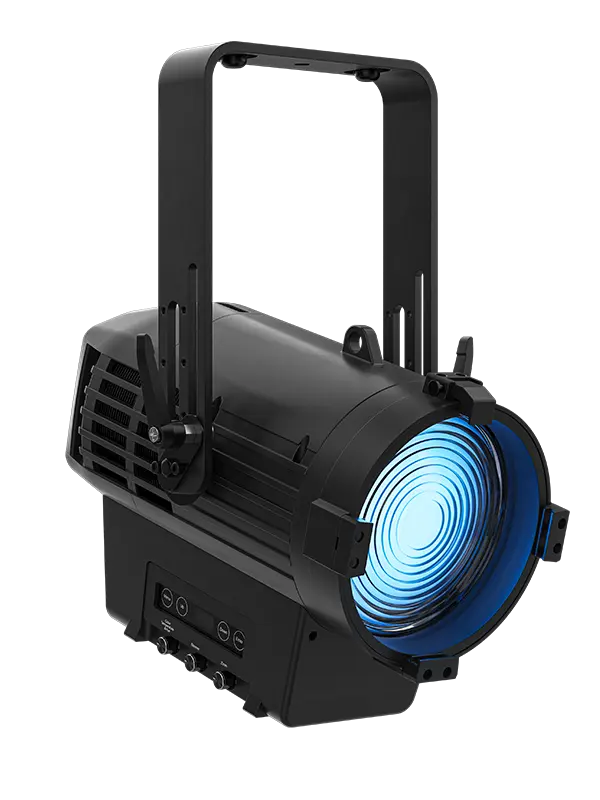

Chauvet Ovation Reve F3 IP

Chauvet Ovation Reve F3 IP

https://odoo.showtools.com.au/web/image/product.template/1875/image_1920?unique=0943022
Ovation Rêve F-3 IP is an outdoor-rated motorized fresnel incorporating our full spectrum (RGBAM) Rêve light engine. With easy on-board control dials and quiet operation, Rêve F-3 IP represents a welcome solution for applications and markets in need of soft controllable washes. Ready to go anywhere, rain or shine, its innovative adjustable yoke also allows it to be mounted anywhere, even in low clearance areas. Featuring an optical system designed to answer the call for longer throws with an extended zoom range that can narrow from 60 degrees all the way down to 10 degrees in order to achieve impressive reach. A versatile lighting instrument at home in theaters, houses of worship, on TV and Film sets, as well as the rental and production world. Flawlessly smooth dimming, +/- green adjustment, linear CCT and adjustable Pulse Width Modulation ensure performance that looks as good on camera as it does live.

$ 6,276.00 6276.0 AUD $ 6,276.00 Tax Included

$ 6,276.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Full-spectrum LED fresnel lighting fixture for theatre, film and production
  • Fully IP65 rated for seasonal use indoors or out
  • Addition on-board control for multiple parameters via 3 control dials
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio, film and theatre applications
  • Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.
  • Innovative adjustable yoke for mounting in low clearance areas
  • USB Port for Software updates

Optical

  • Light Source: 126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 7.5 W, (1.95 A) 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 5864 K
  • Front lens diameters: 210.8 mm
  • CRI: 96
  • Beam Angle: 10.6° to 68.2°
  • Field Angle: 18.3° to 90.4°
  • Cutoff Angle: 25.3° to 99.5°
  • Zoom Range: 10.6° to 99.5°
  • Lumens (narrow) : 5232lm
  • Lumens (wide) : 13374lm
  • Illuminance (narrow) : 4869lux @ 5 m
  • Illuminance (wide) : 482 lux @ 5 m
  • Illuminance (50%) : 1587 lux @ 5 m
  • Selectable PWM: 750 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes



Construction / Physical

  • Dimensions: 16.02 x 13.47 x 20 in (406.9 x 342 x 508 mm)
  • Weight (Standard Yoke): 30.4 lb (13.8 kg)
  • Weight (Pole Yoke): 34.0 lb (15.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
  • Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)



Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
  • Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
  • Power and Current: 532 W, 4.46 A @ 120 V, 60
  • Power and Current: 519 W, 2.56 A @ 208 V, 60 Hz
  • Power and Current: 526 W, 2.24 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP65, dry location
  • Noise Level (Idle): 34.5 dB(A) @ 1 m
  • Noise Level (Auto): 37.2 dB(A) @ 1 m
  • Noise Level (On): 38.7 dB(A) @ 1 m
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • Ovation Reve F-3 IP
  • Seetronic Powerkon power cord
  • Gel frame
  • (1) 140mm Omega bracket with mounting hardware



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • TRUE1 Style Power Extension Cables
  • 5-pin IP65 DMX Cables
  • RDM2go
  • USB Jump Drive

Download Product Specs
