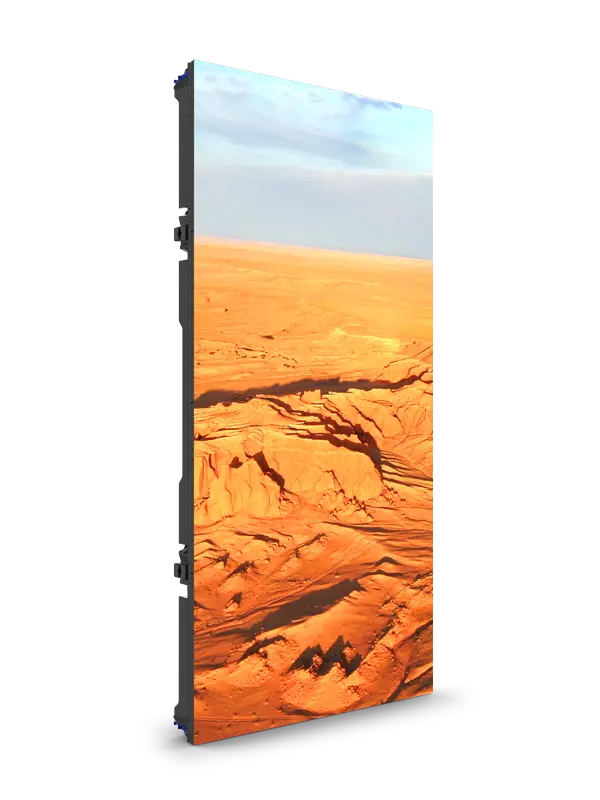

Chauvet Video Panels REM1

REM 1 is a high-performance indoor video wall solution with a 1.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB LEDs. With high-speed 7680Hz LED drivers and A10s Pro Novastar Receiving cards, REM 1 offers top-tier performance and signal processing as well as offering high quality indoor performance for live stages with its low latency function.

$ 36,876.00 36876.0 AUD $ 36,876.00 Tax Included

$ 36,876.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

1.9 mm pitch, ultra-high resolution, modular, indoor video panel
Map and scale your wall with the Novastar MX40 Pro sender
Universal, magnetic LED modules for easy replacement and servicing
Magnetic-assisted hanging integrated into frames makes building a screen fast and easy with minimal labor/effort required
REM1 offered in two physical sizes: 1 m x 0.5 m, 0.5 x 0.5 m (special order)
Integrated curving capabilities for concave and convex configurations
Spring-loaded corner protection for safe transportation and handling
Operating in the DCI-P3 color space and driven via the premium A10s Pro receiver card from Novastar, black body LEDs accurately reproduce video at 22-bit+ grayscale and a wide color gamut
High performance LED drivers deliver 7,680 Hz refresh rate for camera-friendly operation in high-demand applications
Low latency and HDR10 supported for VR/XR studio, live applications
Design allows for overhead hanging, ground stacking, and wall mounting, maximized for multiple applications
Specialized anti-reflective coating applied to the front of LED modules ensures optimal viewing comfort
Ground support/stacking system available in scalable road case-GROUNDSUPPORT2KIT

Optical

Light Source: 131,072 LEDs (tri-color RGB) SMD 1212, 100,000 hours life expectancy
LED Color Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)
Color Space: DCI-P3
Viewing Angle (H/V): 140°/140°
Calibrated Illuminance: 800 NITS (calibrated)
Maximum Illuminance: >1,000 NITS (calibration disabled)
Contrast Ratio:
Grayscale: 22-bit+
Receiver Card : A10s Pro
Drive Type : 1/21
Pixels: 256 x 512
Pixel Pitch: 1.9 mm
Minimum Viewing Distance: 7.5 ft (2.3 m)
Pixel Density: 262,144/m2
Display Refresh Rate: 7,680 Hz (S-PWM)

Construction / Physical

Dimensions: 19.69 x 39.37 in (500 x 1000 mm)
Weight: 31.2 lb (14.15 kg)
Threaded Bolt: M10, 1.5
Exterior Color: Black
Housing Material: Aluminum ADC12
LED Module Material: Glass filled Polycarbonate
Maximum vertical hang: 11 panels

Connections

Power Connection: Edison (local) plug to Seetronic® powerKON®
Power Input: Seetronic® powerKON®
Power Output: Seetronic® powerKON®
Data Connectors: Seetronic® etherKON®
Cable Length (signal extension): 4 ft (1.2 m)
Cable Length (power): 4.6 ft (1.4 m)
Cable Length (power extension): 6 ft (1.8 m)

Control

Control Protocol: Novastar VMP platform
Recommended Processor/Driver: Novastar MX40 Pro
Panel Resolution (L x H): 256 x 512
Maximum Panels/Novastar MX40 Pro (20 ports):
- 8-bit video source: 12/port, up to 240/Processor/Sender
- 10-bit video source: 9/port, up to 180/Processor/Sender
- 12-bit video source: 6/port, up to 120/Processor/Sender
- - 8-bit video source: 7/port, up to 140/Processor/Sender
  - 10-bit video source: 7/port, up to 140/Processor/Sender
  - 12-bit video source: 5/port, up to 100/Processor/Sender
  - - 8-bit video source: 5/port, up to 100/Processor/Sender
    - 10-bit video source: 3/port, up to 60/Processor/Sender
    - 12-bit video source: 2/port, up to 40/Processor/Sender
    - - 8-bit video source: 2/port, up to 40/Processor/Sender
      - 10-bit video source: 1/port, up to 20/Processor/Sender
      - 12-bit video source: 1/port, up to 20/Processor/Sender
      - HDR off, 144 Hz
        8-bit video source: 2/port, up to 40/Processor/Sender
        10-bit video source: 1/port, up to 20/Processor/Sender
        12-bit video source: 1/port, up to 20/Processor/Sender

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 V
Power and Current: 240 W, 2.0 A @ 120 V, 60 Hz
Power and Current: 240 W, 1.15 A @ 208 V, 60 Hz
Power and Current: 240 W, 1.04 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC
MET Listing Number: E113093-1110, E113093-1125
US Safety: UL 60950-1
Canadian Safety: CSA C22.2 No. 60950-1
IP Rating: IP30, dry location
Thermal Dissipation @ 120V: 819 BTU per hour
Thermal Dissipation @ 208V: 819 BTU per hour
Thermal Dissipation @ 230V: 819 BTU per hour
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What's Included

4 REM1
1 Seetronic® powerKON® power cord
4 Seetronic® powerKON® power linking cords
4 Seetronic® etherKON® signal linking cords
5 pcs spare LED masks
User Manual

Required Accessories

Required Software: Nova VMP
Controller (required): Novastar MX40 Pro
Compatible Mounting Options: REM Rig Bar (0.5 m, 1 m lengths offered), M10 bolt/clamp (rear or surface mounting), GROUNDSUPPORT2KIT (floor mounting)

Optional Accessories

Clamps
Neutrik powerKON cables
Neutrik etherCON cables
REM-RB100CMIP
REM-RB50CMIP
GROUNDSUPPORT2KIT
MT07 Universal Module Removal Tool

Download Product Specs
