Chauvet Rogue Outcast 1 Beam Wash

Chauvet Rogue Outcast 1 Beam Wash

https://odoo.showtools.com.au/web/image/product.template/1882/image_1920?unique=1a220ac

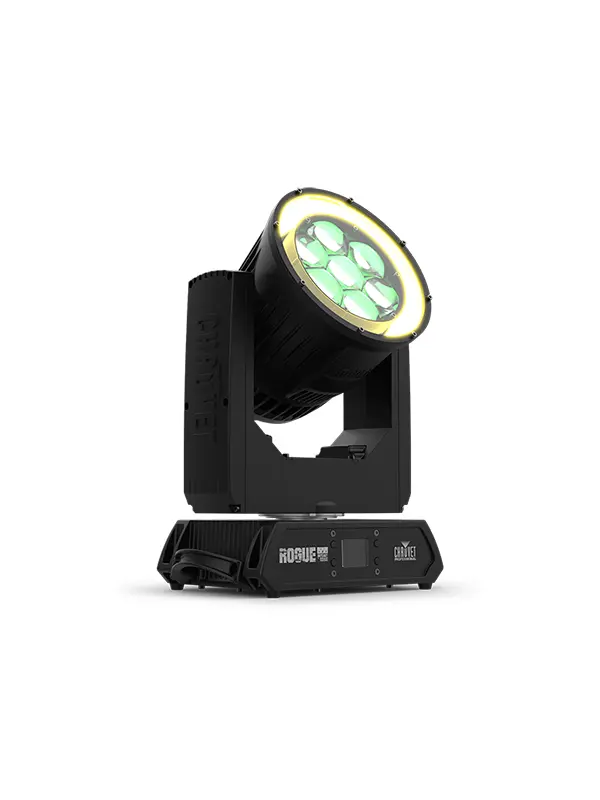

Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.

$ 5,751.00 5751.0 AUD $ 5,751.00 Tax Included

$ 5,751.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Fully featured RGBW LED IP 65 rated yoke wash fixture with zoom and RGB LED ring
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
  • 7 RGBW LEDs, 45 W each
  • 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
  • Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors
  • 5-pin DMX input/output connections
  • Unique lens design for excellent color blending and tight beam effects
  • Extremely fast, smooth pan and tilt movement
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM settings for camera operation
  • Zoom Range: 3.9° to 55.3° for maximum coverage
  • User selectable calibrated white for 7500 K at full output
  • 6 distinct dimming modes for advanced control
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
  • USB-C port for uploading software

Optical

  • Field Angle: 5.9° to 49.8°
  • Cutoff Angle: 6.7° to 55.3°
  • Zoom Range: 3.9° to 55.3°
  • Lumens – Source: 5,900
  • Lumens – Output: 4,073
  • Illuminance (3.9°): 15,308 lux @ 5 m
  • Illuminance (55.3°): 473 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz



Dynamic Effects

  • Pan and Tilt: 540°/260°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 260° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: yes
  • Recall Custom Programs: No



Construction / Physical

  • Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
  • Weight: 20.2 lb (9.16 kg)
  • Exterior Color: Black
  • Housing Material: Magnesium aluminum diecast, high impact, flame-retardant polymer



Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 24, 30, 64, 111 or 135
  • Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
  • Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
  • Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
  • Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
  • Maximum Ambient Temperature (ta) 45° C / 113° F



What's Included

  • Rogue Outcast 1 BeamWash
  • Seetronic Powerkon IP65 power cord
  • (2) Omega brackets with mounting hardware



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • IP Rated Seetronic® Powerkon Extensions
  • DMX Cables
  • Flight Case:
  • UPLOAD 08 software uploader

Download Product Specs
