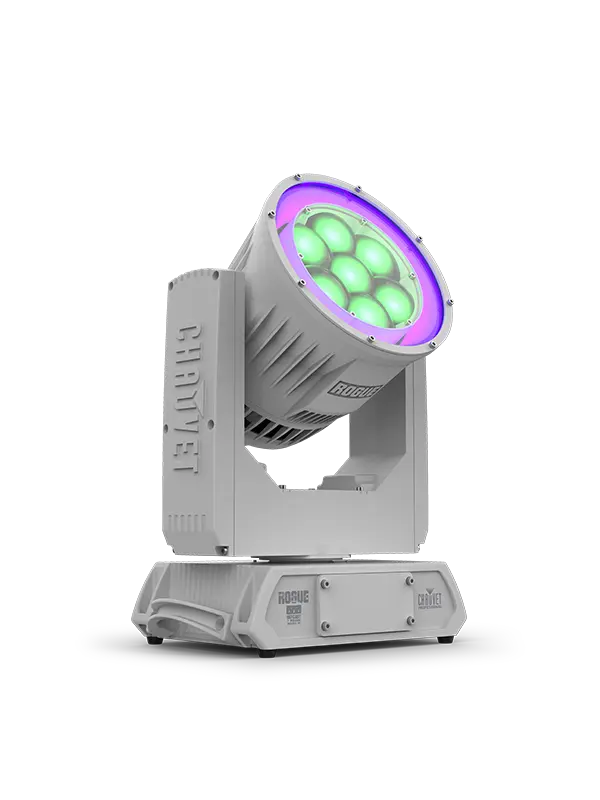

Chauvet Rogue Outcast 1 Beam Wash M

Chauvet Rogue Outcast 1 Beam Wash M

https://odoo.showtools.com.au/web/image/product.template/1874/image_1920?unique=ee7c270

Rogue Outcast 1 BeamWash M brings layers of external corrosion resistance with its full aluminum construction, C5M marine-grade finish, and rugged IP66 build engineered with the enhanced protections needed to perform extended duty in and near marine environments. Seven 45W high-powered RGBW LEDs and a unique lens design deliver smoothly blended color washes and tight beam effects, while a 12-zone pixel-mappable outer ring provides limitless creative possibilities. Create dynamic looks while withstanding the most demanding environments, whether on tour, cruise ships, or lighting theme park and architectural exteriors.

$ 6,307.00 6307.0 AUD $ 6,307.00 Tax Included

$ 6,307.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • Fully featured RGBW LED IP 66 rated yoke wash fixture with zoom and RGB LED ring
  • C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments
  • Included display cover for extended outdoor usage in and near marine environments
  • Stainless steel gland nuts for extended outdoor usage in and near marine environments
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
  • 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
  • 5-pin DMX input/output connections 
  • Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors
  • Unique lens design for excellent color blending and tight beam effects
  • RDM-enabled for remote addressing and trouble shooting 
  • Selectable PWM settings for camera operation
  • Zoom Range: 3.9° to 55.3° for maximum coverage
  • User selectable calibrated white for 7500 K at full output
  • 6 distinct dimming modes for advanced control
  • Easy-to-read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility 
  • USB-C port for uploading software 

Optical

  • Light Source: 7 LEDs (quad-color RGBW) 45W, (3 A), 50,000 hours life expectancy
  • Light Source: 97 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 9.1° to 32.3°
  • Field Angle: 11.2° to 49.2 °
  • Zoom Range: 3.9° to 55.3°
  • Zoom Angle: 11° to 63.2 °
  • Lumens – Source: 5,900
  • Lumens – Output: 4,073
  • Illuminance (3.9°): 15,308 lux @ 5 m
  • Illuminance (55.3°): 473 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz



Dynamic Effects

  • Pan and Tilt: 540°/260°
  • Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 260° Tilt.
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No



Construction / Physical

  • Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
  • Weight: 20.2 lb (9.16 kg)
  • Exterior Color: White
  • Housing Material: Aluminum



Connections

  • Power Connection: Edison (local) plug to Seetronic PowerKON IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power input): 5 ft (1.5 m)
  • Cable Length (signal in/out): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 24, 30, 64, 111 or 135
  • Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
  • Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
  • Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
  • Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz
  • Fuse Size: 8A, 250 V



Certifications / Qualifications

  • CE, MET, FCC, FCC, UKCA
  • IP Rating: IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
  • Maximum Ambient Temperature (ta) 45° C / 113° F



What's Included

  • Rogue Outcast 1 BeamWash M
  • 2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
  • Display cover



Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN 
  • Safety Cable: SC-07  
  • DMX Cables 
  • Flight Case
  • UPLOAD 08 software uploader 
