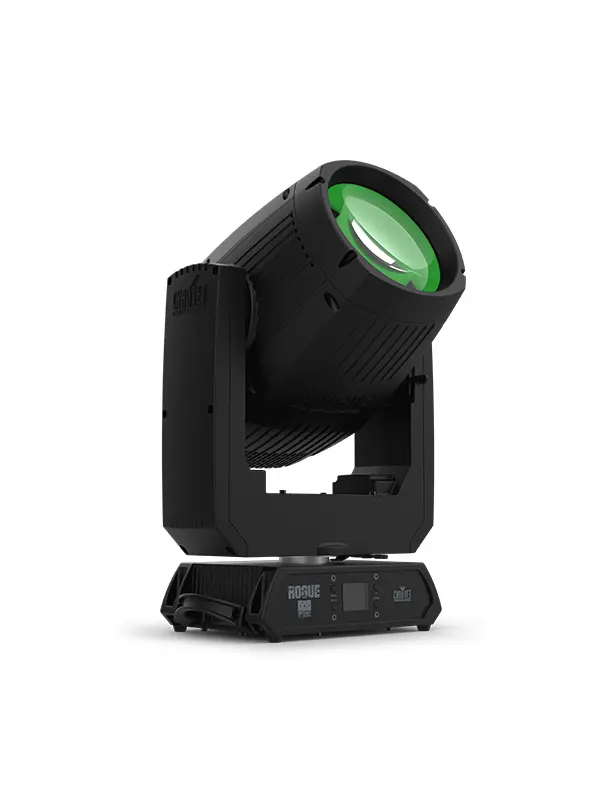

Chauvet Rogue Outcast 1 L Beam

Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

$ 5,956.00 5956.0 AUD $ 5,956.00 Tax Included

$ 5,956.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Fully featured, high powered IP65 rated LED beam fixture
Lightweight and durable aluminum/magnesium alloy body
Fast and precise movement of pan and tilt functions
Individually controllable and layerable 5- and 8-facet prisms
Frost for softening beam edges and effects
5-pin DMX input/output connections
Tight 1.4° beam for extremely focused areal effects
RDM enabled for remote addressing and troubleshooting
7 rotating and 7 static gobos on one wheel for dynamic gobo effects
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software

Optical

Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
Color Temperature (at full): 6928 K
Front lens diameter: 160 mm
CRI: 69.3
Beam Angle: 1.4°
Field Angle: 1.7°
Cutoff Angle: 1.8°
Lumens – Source: 5500
Lumens – Output: 3218
Illuminance (total) : 224,670 lux @ 5 m

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 5 Facets, motorized, linear, rotating
Prism: 8 Facets, motorized, round, rotating
Move-in-Black: Yes

Construction / Physical

Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
Weight: 35.4 lb (16.1 kg)
Exterior Color: Black
Housing Material: Aluminum/Magnesium diecast

Connections

Power Connection: Bare ended to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 17 or 19
Modes/Personalities: 2 personalities (17, 19)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz
Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz
Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, UKCA,
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta): 45° C / 113° F
Noise Level (Idle) : 24.7 dB(A) @ 1 m
Noise Level (Max): 35.3 dB(A) @ 1 m
Noise Level (Auto) : 36.4 dB(A) @ 1 m
Noise Level (ECO) : 36.5 dB(A) @ 1 m
Noise Level (Full): 43.3 dB(A) @ 1 m

What's Included

Rogue Outcast 1L Beam
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware

Optional Accessories

Clamps
IP65 5 pin DMX Cables
IP65 PowerKon Extension cables
Flight Case

Download Product Specs
