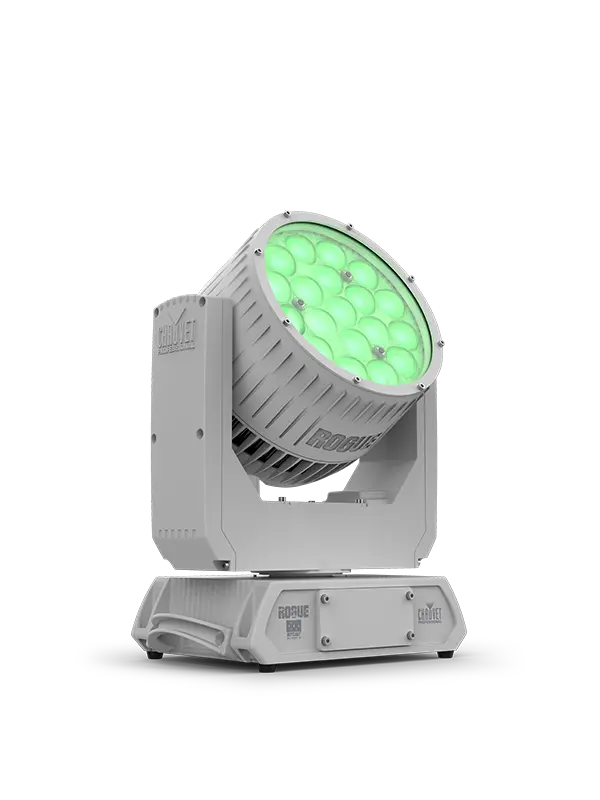

Chauvet Rogue Outcast 2X Wash M

With its full aluminum construction and C5M marine-grade finish, Rogue Outcast 2X Wash M brings layers of external corrosion resistance in a rugged IP66 build engineered with the enhanced protection needed to perform extended duty in and near marine environments. 19 bright 25W RGBW LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming. With a wide zoom range and fast pan/tilt movement, this versatile workhorse brings bold wash effects and durable performance to the most demanding environments, whether on tour, cruise ships, or lighting theme park and architectural exteriors.

$ 5,606.00 5606.0 AUD $ 5,606.00 Tax Included

$ 5,606.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Fully featured IP66 RGBW LED yoke wash fixture with LED zone control, zoom, durable and lightweight aluminum body.
C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments
Included display cover for extended outdoor usage in and near marine environments
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
19 RGBW LEDs, 25 W each
5 zones of LED control for pixel mapping control
Color temperature control in select personalities (23CH, 55CH)
Fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable PWM options for camera operation
Easy to read OLED display with simple, effective menu options
User selectable calibrated white for 7500 K at full output
6 distinct dimming modes for advanced control
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software

Optical

Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectanc
Color Temperature (range): 2800 to 10000 K
Beam Angle: 7.9° to 35.3°
Field Angle: 11.6° to 50.5°
Cutoff Range: 18.5° to 63.7°
Zoom Range: 7.9° to 63.7°
Lumens – Source: n/a
Lumens – Output 5,371
Illuminance (7.9°): 7,632 lux @ 5 m
Illuminance (63.7°): 639 lux @ 5 m
Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 6
Built-in Automated Programs: Yes
Customizable Programs: yes
Recall Custom Programs: yes

Construction / Physical

Dimensions: 11.92x8.58x14.1" (303x218x361mm)
Weight: 21.2 lb. (9.6 kg)
Exterior Color: White
Housing Material: Aluminum

Connections

Power Connection: Termination-ready bare-ended
Data input/output: Termination-ready bare-ended
Cable Length (power input): 5 ft (1.5 m)
Cable Length (signal in/out): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 23, 33, 54, 55 or 56
Modes/Personalities: 8 personalities (15CH, 17CH, 22CH,23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve

What's Included

Rogue Outcast R2X Wash M
2 Omega brackets with mounting hardware ( 2 Allen Key bolts)
Display cover

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
UPLOAD 08 software uploader

Download Product Specs
