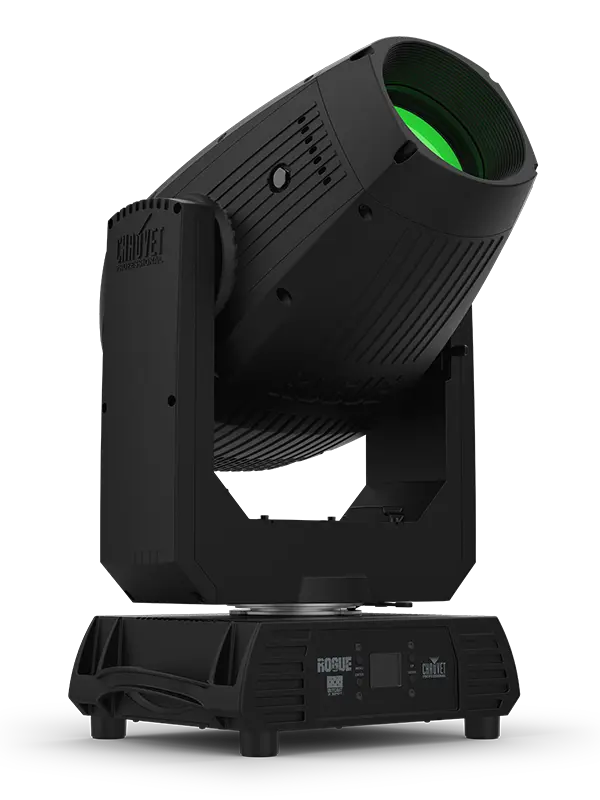

Chauvet Rogue Outcast 3 Spot

Rogue Outcast 3 Spot is a compact IP65 LED moving head that combines lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.

$ 10,328.00 10328.0 AUD $ 10,328.00 Tax Included

$ 10,328.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

IP 65 rated LED Spot with (2) color wheels, a static and rotating gobo wheel, motorized zoom, Iris, 5 facet prism, encased in a lightweight aluminum and magnesium alloy
Zoom range of 4.5° to 40.4°to easily cover stages and surfaces from a distance
Perfect gobo morphing between gobo wheels
Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
Iris, 5-facet prism, and frost for beam control
Beautiful 16-bit LED dimming for ultimate fade control
IP65 rated power input/output connections for power linking
5-pin DMX input/output connections
RDM enabled for remote addressing and trouble shooting
Selectable PWM settings to maintain flicker free operation on camera
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software

Optical

Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
Color Temperature (at full): 7044 K
Front lens diameter: 119 mm
CRI: 70
Beam Angle: 4.9° to 33.7°
Field Angle: 5.5° to 38°
Cutoff Angle: 5.6° to 38.7°
Zoom Range: 4.9° to 38.7°
Lumens – Source: 20,000
Lumens – Output: 14,989
Illuminance (4.9°): 56,916 lux @ 5 m
Illuminance (38.7°) 2,145 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors (1): 7 + white, split colors, continuous scroll at variable speeds
Colors (2): 7 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move in Black: Yes

Construction / Physical

Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
Weight: 51 lb (23.2 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 20 or 25
Modes/Personalities: 2 personalities (20, 25)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
Power and Current: 510 W, 5.13 A @ 100 V, 60 Hz
Power and Current: 506 W, 4.24 A @ 120 V, 60 Hz
Power and Current: 493 W, 2.43 A @ 208 V, 60 Hz
Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz
Power and Current: 494 W, 2.12 A @ 240 V, 50 Hz

Certifications / Qualifications

CE, MET, UKCA
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Noise Level (Idle): 24.2 dB(A) @ 1 m
Noise Level (Max): 33.9 dB(A) @ 1 m
Noise Level (Auto): 34.5 dB(A) @ 1 m
Noise Level (Eco): 31.0 dB(A) @ 1 m
Noise Level (Full): 46.9 dB(A) @ 1 m
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta): 45° C / 113° F

What's Included

Rogue Outcast 3 Spot
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware

Optional Accessories

Clamps
IP65 5 pin DMX Cables
IP65 PowerKon Extension cables
Flight Case

Download Product Specs
