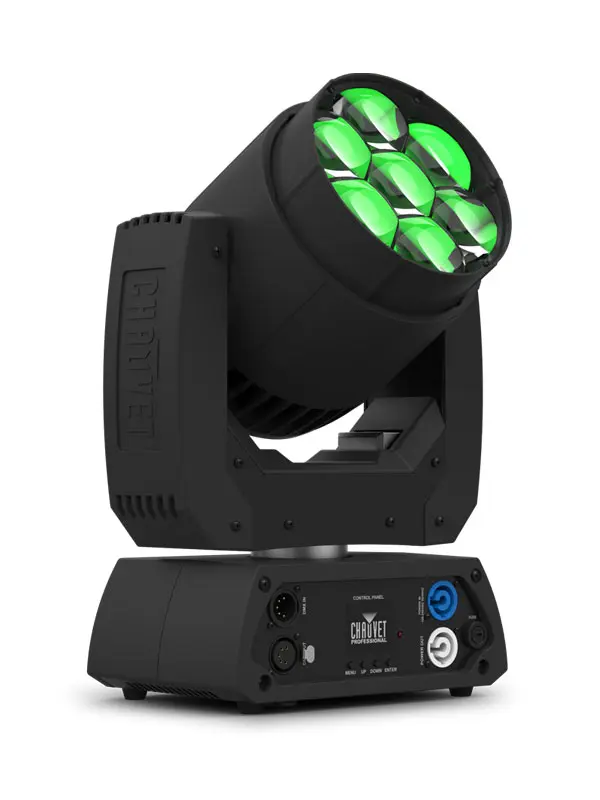

Chauvet Rogue R1 BeamWash

Rogue R1 BeamWash is a versatile and compact moving head that projects a punchy beam and wash. Weighing just under 12 lbs., the unit features a custom-designed optical system with seven, 40W RGBW LEDs and an expansive zoom range of 3.4° to 67.7° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent color blending as it expands. The unit’s small size also allows for a superfast and smooth pan and tilt movement. It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera.

$ 4,753.00 4753.0 AUD $ 4,753.00 Tax Included

$ 4,753.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Fully-featured RGBW LED yoke wash fixture with zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
7 RGBW LEDs, 40 W each
5-pin DMX input/output connections
Unique lens design for excellent color blending and tight beam effects
Extremely fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable PWM settings for camera operation
User-selectable calibrated white for 7500 K at full output
User selectable red shift in all dimming modes to emulate tungsten fixtures
6 distinct dimming modes for advanced control
Omega mounting bracket fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility

Optical

Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Beam Angle: 4° to 37.8°
Field Angle: 5° to 58.2°
Cutoff Angle: 5.5° to 67.7°
Zoom Range: 3.4° to 67.7°
Lumens – Source: 5,400
Lumens – Output: 3,967 Wide
Illuminance (5°): 13,939 lux @ 5 m
Illuminance (55°): 383 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

Construction / Physical

Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
Weight: 11.8 lb (5.35 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX
DMX Channels: 14, 15, 19 or 21
Modes/Personalities: 4 personalities (14, 15, 19, 21)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
Power and Current: 285 W, 2.38 A @ 120 V, 60 Hz
Power and Current: 284 W, 1.37 A @ 208 V, 60 Hz
Power and Current: 284 W, 1.23 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location

What's Included

Rogue R1 BeamWash
Neutrik® powerCON® power cord
Omega bracket with mounting hardware

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Neutrik® powerCON® cables
DMX Cables
Flight Case: CP6CASER1W
UPLOAD 08 software uploader
