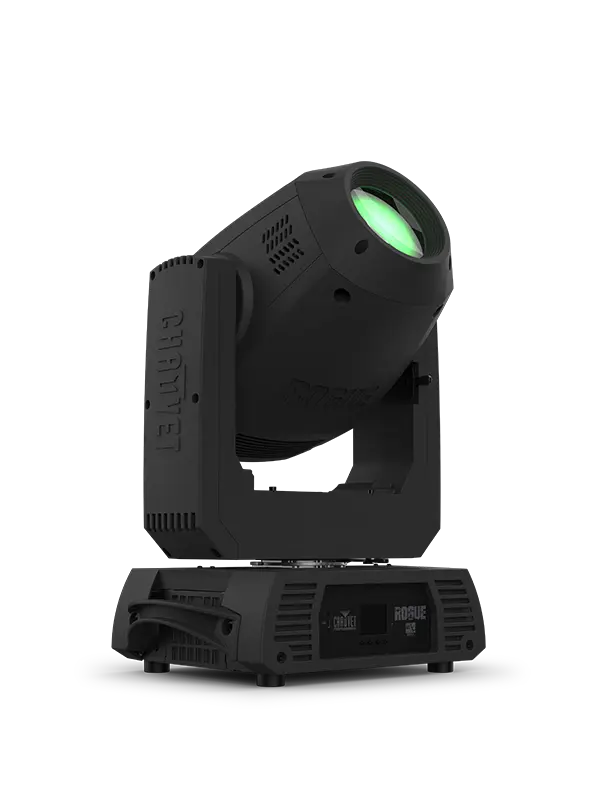

Chauvet Rogue R1 E Spot

Chauvet Rogue R1 E Spot

https://odoo.showtools.com.au/web/image/product.template/1899/image_1920?unique=37d251d
Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.

$ 4,185.00 4185.0 AUD $ 4,185.00 Tax Included

$ 4,185.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • A fully featured compact and light weight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a color wheels.
  • 16-bit dimming of master dimmer for smooth control of fades
  • Perfect gobo morphing between gobo wheels
  • Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
  • Iris, 3-facet prism, and frost for beam control
  • True 1 compatible power input/output connections for power linking.
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting.
  • Selectable LED maximum output to match legacy Rogue R1X Spots
  • Selectable PWM settings to maintain flicker-free operation on camera.
  • Simple and complex DMX channel profiles for programming versatility

Optical

  • Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7423 K
  • Front lens diameter: 90mm
  • CRI: 68
  • Beam Angle: 15.3°
  • Field Angle: 18.7°
  • Cutoff Angle: 20.3°
  • Lumens – Source: 17,900
  • Lumens – Output: 12,210
  • Illuminance (total): 9,021 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz



Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
  • Colors: 8 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Move in Black: Yes



Construction / Physical

  • Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm) 
  • Weight (single unit): 31.2 lb (14.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
  • Software update: USB-C

Connections

  • Power Connection: Edison (local) plug to Seetronic PowerKon
  • Power Input: Seetronic PowerKon
  • Power Output: Seetronic PowerKon
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)



Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 16 or 19
  • Modes/Personalities: 2 personalities (16, 19)



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V
  • Power and Current: 315 W, 2.63 A @ 120 V, 60 Hz
  • Power and Current: 306 W, 1.50 A @ 208 V, 60
  • Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz



Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location



What's Included

  • Rogue R1E Spot
  • Seetronic PowerKon power cord
  • 2 140D Omega brackets with mounting hardware



Optional Accessories
