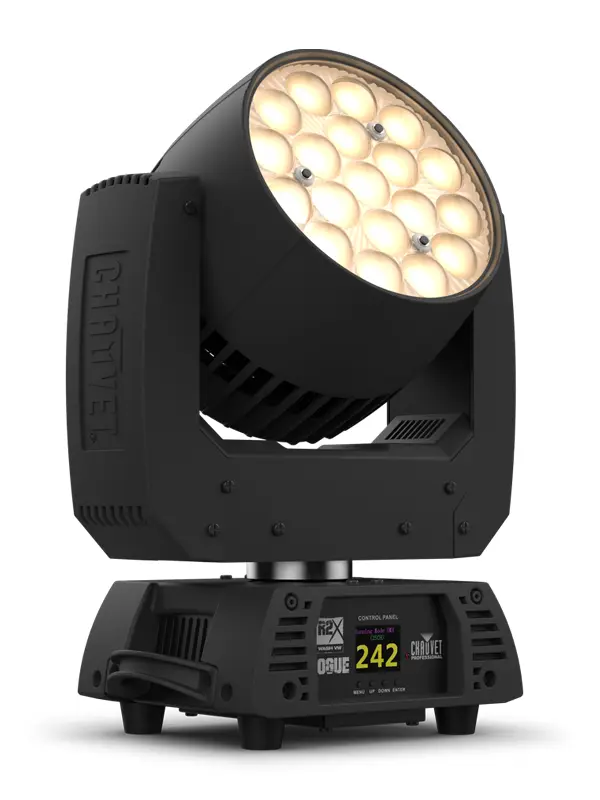

Chauvet Rogue R2X Wash Variable White

Rogue R2X Wash VW is a variable white version of the industry-leading Rogue R2X Wash. Ideal for broadcast and exhibition markets, this versatile unit is capable of rendering nearly any temperature of white ranging from 2600 to 6075 K. Rogue R2X Wash utilizes 19 (25 W) Warm White and Cool White LEDs, offering five zones of LED control for pixel-mapping effects, as well as built-in automated programs. The versatile zoom range of 8.2° to 63° and unique lens design allows for full coverage in even the widest of areas. Control your way via DMX or RDM.

$ 4,585.00 4585.0 AUD $ 4,585.00 Tax Included

$ 4,585.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Fully featured variable white LED yoke wash fixture with LED zone control and zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades 19 variable white LEDs, 25 W each
3- and 5-pin DMX input/output connections
5 zones of LED control for pixel mapping control
Unique lens design for excellent blending
Fast, smooth pan and tilt movement
Built in color temp presets from 2800 K to 6000 K
RDM enabled for remote addressing and trouble shooting
6 distinct dimming modes for advanced control
Omega mounting bracket, fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility

Optical

Light Source: 19 LEDs (CW and WW) 25 W, (1.5 A), 50,000 hours life expectancy
Color Temperature (range): 2600 to 6075 K
Beam Angle: 8° to 34.4°
Field Angle: 11.3° to 50.4°
Cutoff Angle: 17.1° to 63°
Zoom Range: 8.2° to 63°
Lumens – Source: 10,700 lm
Lumens – Output: 10,918 lm
Illuminance (11.3°): 14,499 lux @ 5 m
Illuminance (50.4°): 1,266 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Temperature Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

Construction / Physical

Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
Weight: 22.8 lb (10.3 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 15, 18, 23, 34 or 36
Modes/Personalities: 7 personalities (15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH or 36CH MS)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current: 336 W, 2.825 A @ 120 V, 60 Hz
Power and Current: 335 W, 1.620 A @ 208 V, 60 Hz
Power and Current: 339 W, 1.467 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location

What's Included

Rogue R2X Wash VW
Neutrik® powerCON® power cord
Omega bracket with mounting hardware

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
Neutrik® powerCON® cables
DMX Cables
Flight Case: CP6CASER2W
UPLOAD 08 software uploader

Download Product Specs
