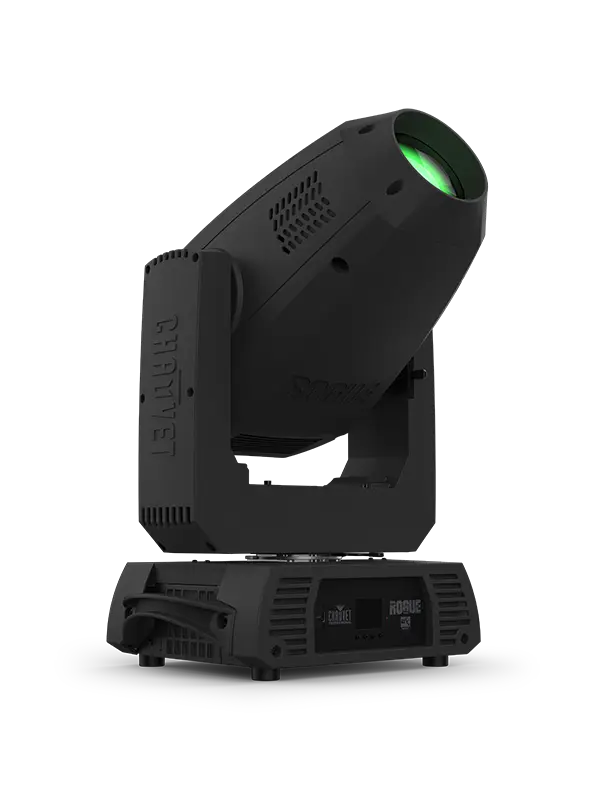

Chauvet Rogue R3 E Spot

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.

$ 7,380.00 7380.0 AUD $ 7,380.00 Tax Included

$ 7,380.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.
16-bit dimming of master dimmer for smooth control of fades
Perfect gobo morphing between gobo wheels
Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
Iris, 3-facet prism, and frost for beam control
8.4° to 42.8° Zoom range
True 1 compatible power input/output connections for power linking.
3- and 5-pin DMX input/output connections
RDM enabled for remote addressing and trouble shooting.
Selectable LED maximum output to match legacy Rogue R1X Spots
Selectable PWM settings to maintain flicker-free operation on camera.
Simple and complex DMX channel profiles for programming versatility

Optical

Light Source: 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy.
Color Temperature (at full) 8527 K
Front lens diameter: 90mm
CRI: 68.2
Beam Angle: 8.4° to 33°
Field Angle: 10.1° to 39.3°
Cutoff Angle: 11.5° to 42.8°
Zoom Range: 8.4° to 42.8°
Lumens – Source: 24,500
Lumens – Output: 15,705
Illuminance (7°): 35,405 lux @ 5 m
Illuminance (42.8°): 2,492 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors (1): 8 + white, split colors, continuous scroll at variable speeds
Colors (2): 8 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 25 Hz
Move in Black: Yes

Construction / Physical

Dimensions: 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
Weight: 34 lb (15.4 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Software update: USB-C

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB-C

Control

Control Protocol: DMX, RDM
DMX Channels: 19 or 25
Modes/Personalities: 2 personalities (19, 25)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V
Power and Current: 535 W, 4.541 A @ 120 V, 60
Power and Current: 522 W, 2.576 A @ 208 V, 60 Hz
Power and Current: 523 W, 2.345 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Noise Level (Idle): 4.1 dB(A) @ 1 m
Noise Level (Max): 35.0 dB(A) @ 1 m
Noise Level (Auto): 33.3 dB(A) @ 1 m
Noise Level (Eco): 31.2 dB(A) @ 1 m
Noise Level (Full): 40.2 dB(A) @ 1 m

What's Included

Rogue R3E Spot
Seetronic PowerKon power cord
2 140D Omega brackets with mounting hardware

Optional Accessories

Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables
Flight Cases

Download Product Specs
