SRS Lighting DSR10AB-5

https://odoo.showtools.com.au/web/image/product.template/5031/image_1920?unique=b50a4df

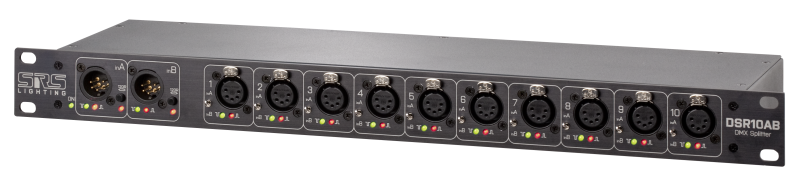

The DSR10AB is a 19'' 1U rack-mount 10-channel splitter / booster of the DMX signal. It contains 2 inputs and 10 outputs on the front panel and additional 2 inputs on the rear panel. Every output features LED indication of the DMX status and an AB switch that allows choosing between the input channels A and B. All outputs are optically isolated up to 1000V.

The DSR10AB comes with 3- or 5-pin XLR connectors or a combination of them.

An alternative product DSR10ABN comes with RJ45 connectors on inputs and outputs.

All SRS splitters are covered by a life-time warranty.

$ 2,080.00 2080.0 AUD $ 2,080.00 Tax Included

$ 2,080.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

  • 10-channel DMX splitter / booster with AB switch
  • Optically isolated outputs 1000V
  • Amplification on each output
  • 2x LED indicator of the DMX line status for each output
  • 2x Termination switch with LED indication
  • 2x DMX input on the front panel

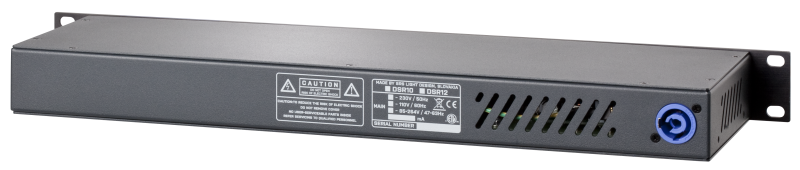

  • 2x DMX input on the rear panel
  • 1U, 19'' rack-mount
  • Optional wall mount via UNIHOLDER60
  • Full range power supply: 85V-264V, 50/60Hz, 5W
  • Neutrik PowerCon connector
  • LIFE-TIME WARRANTY
