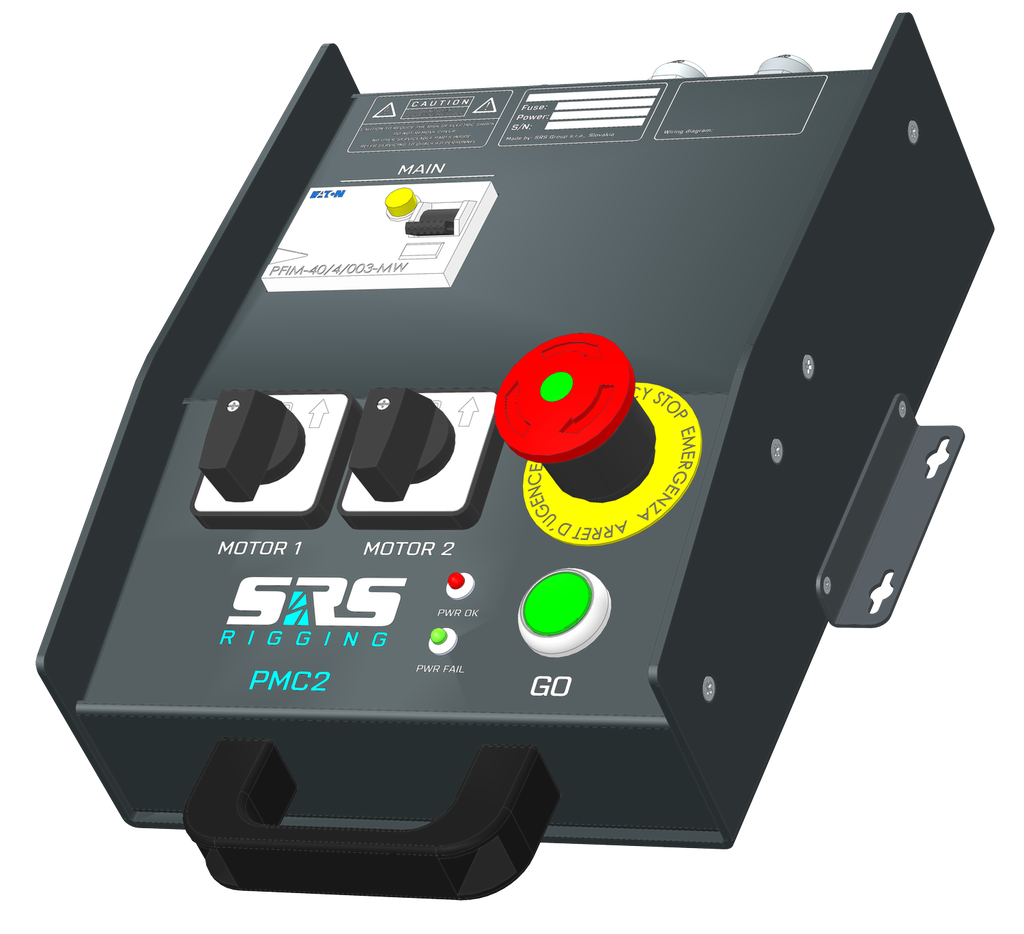

SRS Rigging Wallmount 2 Channel LV Motor Controller with cable input glands- Installation Version - Key E Stop

SRS Rigging Wallmount 2 Channel LV Motor Controller with cable input glands- Installation Version - Key E Stop

https://odoo.showtools.com.au/web/image/product.template/5515/image_1920?unique=64da094

The PMC-LV Motor Controller was designed to control up to two low voltage electrically compatible motors separately or simultaneously using the switches located on the front panel of the controller.

Both of the control plugs are galvanically isolated from the controller so any low voltage hoist can be used without limitation of the hoist control voltage.

PMC-LV is equipped with the Manual Phase Align (MPA) module that allows swapping between phases easily by rotating pins L2 and L3 on the main connector.

All electrical components carry their own individual cSA/UL and CE and comply with the Low voltage and European Machinery Directives.

$ 3,540.00 3540.0 AUD $ 3,540.00 Tax Included

$ 3,540.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

  • Controls up to 2 low voltage hoists
  • Protection of outputs: MCB16A and RCD 30mA
  • Manual Phase Align (MPA) using power input connector
  • Hoist types: BGV D8, BGV D8+


Hoist connection:

  • CEE16/4p RED female for power
  • CEE16/4p YELLOW male for control



datasheet

usermanual
