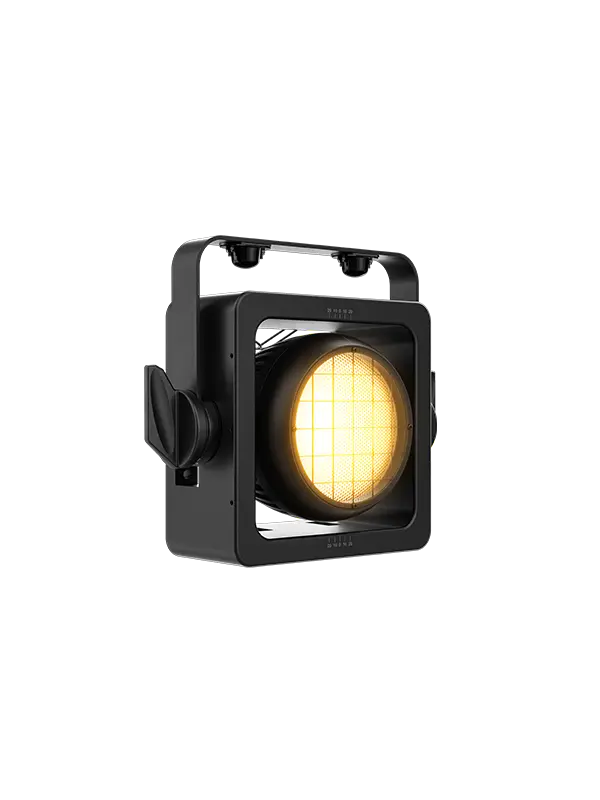

Chauvet Strike Array 1 - Kit

STRIKE Array 1 is an IP65-rated audience blinder powered by intense warm white LEDs housed in an independently focusable pod. Its proprietary tool-free interlocking system enables STRIKE Array 1 to be easily interconnected with multiple units for scalable configurations. For additional rigging versatility, the STRIKE Array 1 pod can be removed from its frame and mounted using the included standard yoke. STRIKE Array 1 delivers superb low end dimming performance and Red Shift that warms the color temperature of the light as it dims to emulate a classic tungsten look. Variable PWM and high CRI make it an ideal blinder for broadcast applications.

STRIKE Array 1 is a package that includes:

(4) STRIKE Array 1 pods mounted in square frame

(4) Linking cables (1m length)

(4) Hanging brackets for individual truss mounting (“head only yokes”)

(1) Driver (controls and powers up to 8 units)

The included remote Driver unit performs automatic addressing of up to (8) STRIKE Array 1 pods for ease of installation.

$ 6,318.00 6318.0 AUD $ 6,318.00 Tax Included

$ 6,318.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Intense, stacking blinder/strobe rated IP65 for all-weather use
Remote driver unit with automatic addressing of up to 8 pods for clean installations.
Heads are removable from the frame and can be mounted in standard (included) yoke for a more traditional look.
Emulated “red shift” to mimic incandescent fixtures perfectly.
Manual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.
Innovative interlocking system to connect multiple fixtures together.
Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme

Optical

Light Source (Single Pod): 48 LED (WW) 1.33 W, (1.1 A), 2700 K, 50,000 hours life expectancy
Light Source (Single Pod): 5 LED (Amber) 1.92 W, (.770 A), 50,000 hours life expectancy
Color Temperature (at full): 2657 K
CRI: 83.9
Beam Angle: 62.8°
Field Angle: 104.5°
Lumens (Single Pod): 4,353 lm @ 5 m
Illuminance (total) (Single Pod): 153 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 8.19 x 8.62 x 4.57 in (208 x 219 x 116 mm) (Single Unit with Bracket)
Dimensions: 7.48 x 7.48 x 4.57 in (190 x 190 x 116 mm) (Single Unit with Frame)
Dimensions: 10.87 x 9.06 x 4.57 in (276 x 230 x 116 mm) (Single Unit with Frame and Bracket)
Dimensions: 7.375 x 4.00 x 7.375 in (186.87 x 101.6 x 186.87 mm) (Control Box)
Weight: 3.2 lbs (1.5 kg) (Single Unit with Bracket)
Weight: 6.6 lbs (3.0 kg) (Single Unit with Frame)
Weight: 7.6 lbs (3.5 kg) (Single Unit with Frame and Bracket)
Weight: 6.4 lbs (2.9 kg) (Control Box)
Exterior Color: Black
Housing Material: Aluminum die-cast

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Device Outputs (4): 4-pin XLR
Data Connectors: 5-pin IP65 XLR, Seetronic Etherkon IP65
Software Connection: USB
Cable Length (power): 5 ft (1.5 m)
Total max. cable length (shielded cables) between Driver and last Head: 147 ft (45 m)

Control

Control Protocol: DMX, RDM, ArtNet, sACN
DMX Channels: 1,2,5,4P-5CH,4P-14CH,4P-23CH,4P-26CH,8P-9CH,8P-26CH,8P-43,8P-46CH

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current (4 PODS): 253 W, 2.13 A @ 120 V, 60 Hz
Power and Current (4 PODS): 248 W, 1.21 A @ 208 V, 60 Hz
Power and Current (4 PODS): 248 W, 1.09 A @ 230 V, 50 Hz
Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
Power and Current (8 PODS): 509 W, 4.22 A @ 120 V, 60 Hz
Power and Current (8 PODS): 494 W, 2.38 A @ 208 V, 60 Hz
Power and Current (8 PODS): 490 W, 2.14 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M6 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

4pc Strike Array 1, mounted in the Square Frame with Yokes
4pc linking cables (1m)
1pc Seetronic Powerkon IP65
1pc driver
4pc “head only yokes”
5pc Omega Bracket

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
IP Rated EtherCon Cables
UPLOAD 03 software uploader

Download Product Specs
