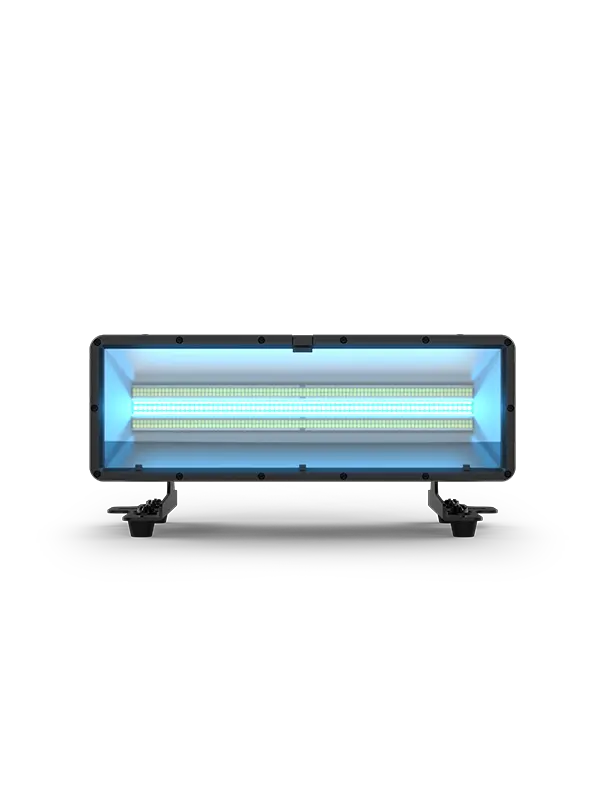

Chauvet Strike Bolt 1C

STRIKE Bolt 1C is an intense IP65-rated strobe featuring integrated Smart Frost that enables this first-of-its-kind fixture to shift instantly from powerful strobe bursts to smooth color block effects. Its proprietary Tool-Free Stacking streamlines interconnecting STRIKE Bolt 1C with STRIKE Array fixtures in stackable configurations to create unique blinder/strobe arrays. Multiple hanging points, end-to-end connections, and floor feet provide maximum rigging versatility. Its included stealth filter can be attached to make the fixture nearly disappear for on-camera use. STRIKE Bolt 1C delivers a classic strobe look with modern performance ideal for concert and touring, festivals and event productions in any environment, live or broadcast, indoors or out.

$ 4,501.00 4501.0 AUD $ 4,501.00 Tax Included

$ 4,501.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Intense, stackable strobe with added color effects rated IP65 for all-weather use
Twin strobe tubes for intense strobe effects
Single row of RGBA LEDs for color block effects behind an integrated smart glass (electronic frost) filter
Designed for rigging versatility with multiple hanging points, end-to-end connections, floor feet, and the ability to be rigged inline with STRIKE Array fixtures to create unique blinder/strobe arrays.

Optical

Light Source: 66 LEDs (quad-color) SMD 5050, 0.9 – 1.5 W, (470 mA), 50,000 hours life expectancy
Light Source: 392 LEDs, (CW) 1.5 W, 5660 K, 50,000 hours life expectancy
Color Temperature (at full): 5692K
CRI: 89.2
Beam Angle (Combine): 77.5° x 55.8°
Beam Angle (Plate): 84.6° x 73.6°
Beam Angle (Beam): 77.7° x 54.7°
Field Angle (Combine): 130.6° x 104.4°
Field Angle (Plate): 139.7° x 114.5°
Field Angle (Beam): 129.1° x 102.3°
Lumens (Combined): 20,251
Lumens (Plate): 2735
Lumens (Beam): 23,736
Illuminance (Combined): 605 lux @ 5 m
Illuminance (Plate): 66 lux @ 5 m
Illuminance (Beam): 729 lux @ 5 m
Selectable PWM: 1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz, 64,000 Hz
Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 14.96 x 8.39 x 11.81 in (380 x 213 x 300 mm)
Weight: 19 lbs. (8.7 kg)
Exterior Color: Black
Housing Material: Magnesium alloy

Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM
DMX Channels: 10, 11, 13, 17, 20, 25, 27, 40
Modes/Personalities: 8 personalities (7, 10, 12, 16, 19, 32, 40, 53)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 6 units @ 208 V; 8 units @ 230 V
Power and Current: 329 W, 2.82 A @ 120 V, 60 Hz
Power and Current: 326 W, 1.82 A @ 208 V, 60 Hz
Power and Current: 323 W, 1.48 A @ 230 V, 50 Hz

Certifications / Qualifications

IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

STRIKE Bolt 1C
Stealth Filter
Seetronic Powerkon IP65
Omega bracket with mounting hardware

Optional Accessories

STRIKE Array Flush Bracket
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-08
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
UPLOAD 03 software uploader

ORDERING INFO

Item Code: 03052014

Download Product Specs
