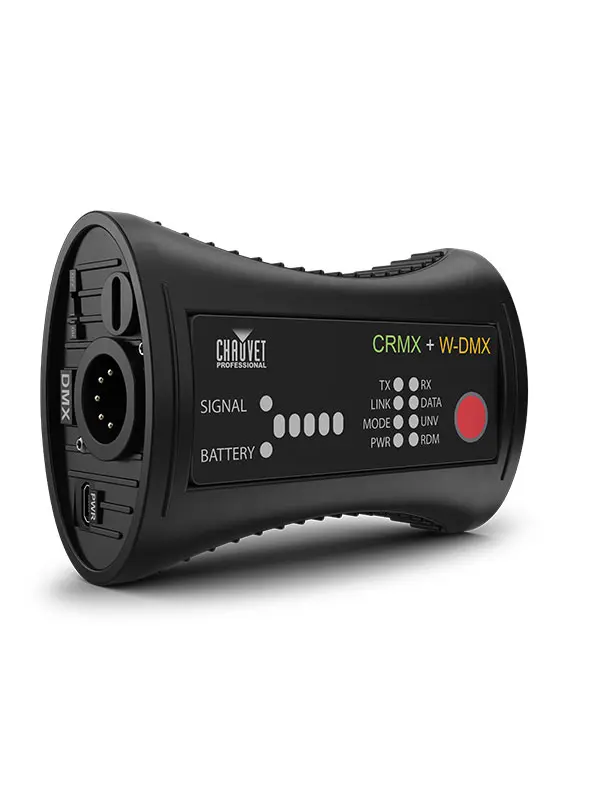

Chauvet WDMX Micro T-1 TRX G6

Wireless Solutions Micro T-1 Transceiver works with W-DMX and CRMX enabled fixtures to generate a wireless control signal for DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX or CRMX signals to make any fixture or rig wireless. Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.

$ 1,352.00 1352.0 AUD $ 1,352.00 Tax Included

$ 1,352.00 Tax Included

This combination does not exist.

Add to cart

Terms and Conditions

At a Glance

Transmit and receive 1 universe of W-DMX, CRMX and RDM protocols
Supports the W-DMX Configurator app over Bluetooth (downloadable from app store)
Backward compatibility with G3, G4, G4S, and G5 series
Can operate both W-DMX and CRMX enabled products in G4S Mode
Supports active frequency hopping
Power with included 5V USB power supply or (4) AAA batteries (not included)
Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode
Built in indicator lights for signal and battery strength, as well as operation modes
Can be used directly with any Maverick or WELL fixtures
Can be used to make any lighting system wireless for data

Construction / Physical

Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)
Weight: 1.67 lb (800 g)
Exterior Color: dark gray
Housing Material: High-impact flame-retardant polymer

Connections

Power Connection: 5V micro USB connector (micro B) to wall wart adapter
Data Connectors: 5-pin XLR

Control

Control Protocol: W-DMX, CRMX, RDM
Frequency (operating): # 2.4 GHz
Universes per device: 1
Number of DMX channels: 512
DMX Latency: <5 ms
Max universe in coexistence: 16
Error correction: yes
DMX Fidelity: yes
Adaptive Frequency Hopping: Yes
W-DMX G3, G4, G4S, and G5 compatibility: Yes
Standard range: up to 650 ft (200 m)
Internal antenna: Yes
Sensitivity (0.1% PER): -97 dBm
Modulation method: GFSK

Electrical

Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)

Battery

Battery type: AAA
Rechargeable: No
Battery Life: 8 hours in receiver mode, 4 hours in transceiver mode

Certifications / Qualifications

CE, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

W-DMX Micro T-1 TRX G6
Micro USB to wall wart adapter
User Manual
Velcro attachment strap

ORDERING INFO

Item Code: 99112032

Download Product Specs

W-DMX Micro T-1 TRX G6 User Manual
