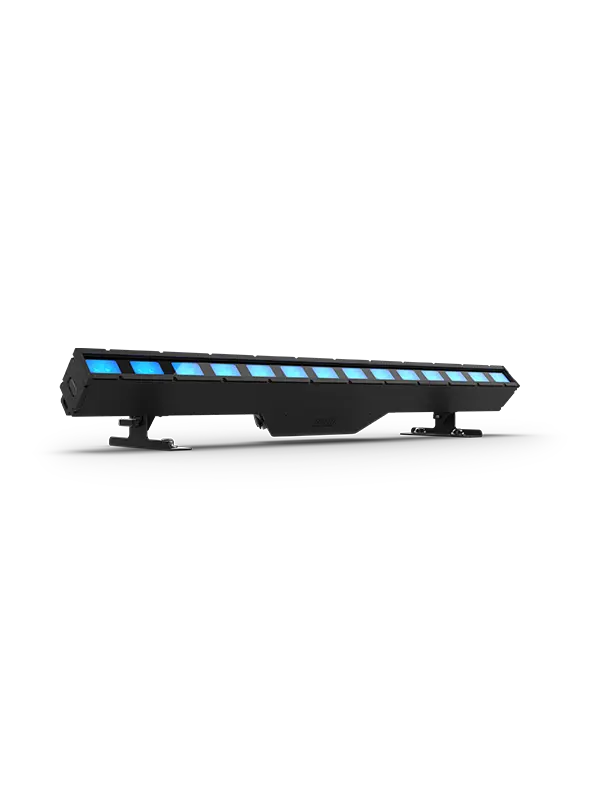

Chauvet Well Batten 14

Chauvet Well Batten 14

https://odoo.showtools.com.au/web/image/product.template/1830/image_1920?unique=ff18fa6
WELL BATTEN 14 delivers 14 zones of control for pixel-mapping effects and a preprogrammed library of looks similar to our popular WELL STX. Up to 18 hours of battery life from a batten engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.

$ 19,506.00 19506.0 AUD $ 19,506.00 Tax Included

$ 19,506.00 Tax Included

Not Available For Sale

This combination does not exist.

Battens Panels
Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • A fully realized kit of (4) battery-operated black IP65-rated batten style fixtures, with (28) RGB warm white LEDs in (14) sections of control and a beam angle of 16 degrees.
  • Charging case designed to charge with the lid closed to save warehouse space
  • 14 individual zones of control for pixel mapping effects
  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
  • Built-in battery charger allows fixture to operate while charging
  • Built-in IP65 5-pin DMX in/out allows for wired data
  • Built-in Seetronic IP65 PowerKon input/output
  • Control over RDM, DMX, CRMX, or RF
  • Easy connection to WELL CONNECT box for ConnectFX app control
  • USB-C port for convenient software updates
  • Pressure equalizing M6 Gore valve
  • Built-in safety cable attachment point
  • Easy-to-read OLED display
  • Built-in theft alarm (audio and visual notification)
  • Built-in PWM Adjustment
  • Included RF remote
  • Included 4 pack charging case
  • Included (2) glare shields

Optical

  • Light Source: 28 LEDs (RGBW) 13.2W, (516mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2600 to 10,000K
  • Beam Angle: 16°
  • Field Angle: 33.8°
  • Cutoff Angle: 64.1°
  • Lumens: 3854 lm (AC power)
  • Illuminance: 1050 lux @ 5 m (AC power) Lumens:
  • Lumens: 2210 lm (OFF battery setting)
  • Illuminance: 601 lux @ 5 m (OFF battery setting)
  • Lumens: 2319 lm (5-hour battery setting)
  • Illuminance: 631 lux @ 5 m (5-hour battery setting)
  • Lumens: 1437 lm (8-hour battery setting)
  • Illuminance: 392 lux @ 5 m (8-hour battery setting)
  • Lumens: 890 lm (12-hour battery setting)
  • Illuminance: 243 lux @ 5 m (12-hour battery setting)
  • Lumens: 548 lm (18-hour battery setting)
  • Illuminance: 148 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 1000 Hz, 2000 Hz, 3000Hz, 4000Hz, 6000Hz, 25kHz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No



Construction / Physical

  • Dimensions: 39.4 x 7.9 x 6.4 in (1001 x 200 x 163 mm)
  • Weight: 16.4 lb (7.4 kg)
  • Weight (shipping weight): 186.3 lb (84.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum diecast



Connections

  • Power Connection: Edison (local) plug to Seetronic PowerKon IP65
  • Power Input (fixture and charging case): Seetronic PowerKon IP65
  • Power Output (fixture and charging case): Seetronic PowerKon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB-C

Control

  • Control Protocol: DMX, RDM, CRMX, NFC, RF
  • DMX Channels: 5,8,15,66,85
  • Modes/Personalities: 6 personalities (5ch,8ch,15ch,66ch,85ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX



Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Single unit
    • Power Linking: 17 units @ 120 V; 30 units @ 208 V; 32 units @ 230 V
    • Power and Current: 84 W, 0.70 A @ 120 V, 60 Hz
    • Power and Current: 82 W, 0.40 A @ 208 V, 60 Hz
    • Power and Current: 83 W, 0.37 A @ 230 V, 50 Hz
  • 4 Pack case
    • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
    • Power and Current: 348 W, 2.90 A @ 120 V, 60 Hz
    • Power and Current: 343 W, 1.68 A @ 208 V, 60 Hz
    • Power and Current: 344 W, 1.53 A @ 230 V, 50 Hz



Battery

  • Battery type: Lithium Nickel Cobalt AL (Li) (NiCoAL)
  • Rechargeable: Yes
  • Battery Charge Time: 7 hours
  • Battery Life: selectable: off, 5, 8, 12, 18 hrs



Certifications / Qualifications

  • CE, UKCA, FCC, ROHS
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



What's Included

  • (4) WELL BATTEN 14
  • (1) 4 slot charging case
  • (1) basic RF controller
  • (4) Seetronic PowerKon IP65 power cords
  • (8) Omega Brackets
  • (8) glare shields
  • (1) QRG
