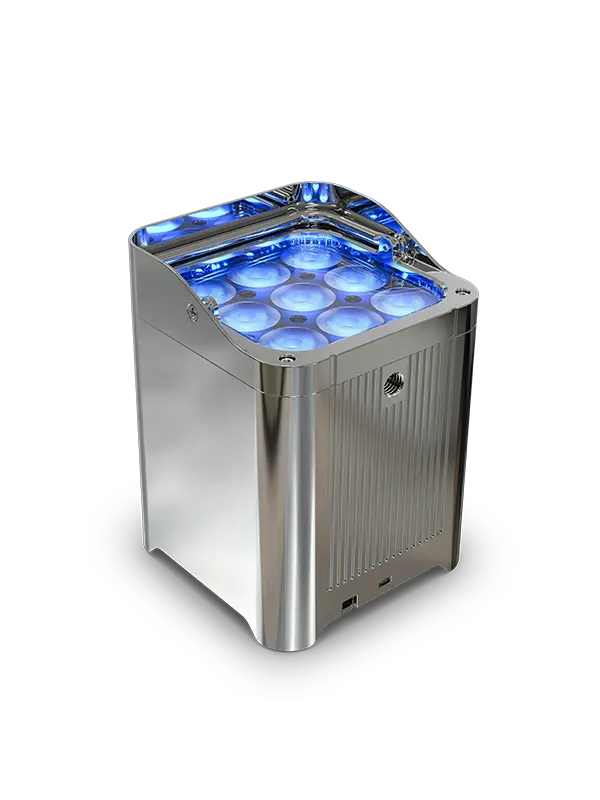

Chauvet Well Fit x

Chauvet Well Fit x

https://odoo.showtools.com.au/web/image/product.template/1842/image_1920?unique=1eed320
The leading workhorse uplight in its class gets a host of upgrades that improve color mixing, size, weight and functionality.  WELL FIT X offers increased lumen output, additional LEDs with improved optics and outstanding beam collimation, a filter pack for beam shaping, and a white metal slip cover for more décor matching possibilities. Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

$ 13,641.00 13641.0 AUD $ 13,641.00 Tax Included

$ 13,641.00 Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Social Media

At a Glance

  • A fully realized kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees
  • Charging case designed to charge with the lid closed to save warehouse space
  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
  • Built-in battery charger allows fixture to operate while charging (Single charging cable sold separately)
  • Control over RDM, CRMX, or RF
  • Easy connection to WELL CONNECT box and ConnectFX app
  • USB-C port for convenient software updates
  • Pressure equalizing M6 Gore valve
  • Adjustable front foot for adjusting fixture angle
  • Kensington lock position
  • Built-in safety cable attachment point
  • Easy-to-read OLED display
  • Built-in theft alarm (audio and visual notification)
  • Built-in PWM adjustment
  • Included RF remote
  • Included 6 pack charging case

Optical

  • Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2600 to 10,000K
  • Beam Angle: 11.5°
  • Field Angle: 21.1°
  • Lumens: 1762 lm (OFF battery setting)
  • Illuminance: 1087 lux @ 5 m (OFF battery setting)
  • Lumens: 1944 lm (5-hour battery setting)
  • Illuminance: 1205 lux @ 5 m (5-hour battery setting)
  • Lumens: 1233 lm (8-hour battery setting)
  • Illuminance: 764 lux @ 5 m (8-hour battery setting)
  • Lumens: 821 lm (12-hour battery setting)
  • Illuminance: 507 lux @ 5 m (12-hour battery setting)
  • Lumens: 550 lm (18-hour battery setting)
  • Illuminance: 339 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz



Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No



Construction / Physical

  • Dimensions - Fixture: 4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
  • Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
  • Weight (single unit) 7.0 LB (3.2 kg)
  • Weight (shipping weight): 98.3 lbs (44.6 kg)
  • Exterior Color: Chrome
  • Housing Material: Aluminum diecast



Connections

  • Power Connection: 5.5mm right-angle barrel jack
  • Cable Length (charger): 8.5 ft (2.6m) (sold separately)
  • Power Input (charging case): Seetronic TRUE1 IP65
  • Power Output (charging case): Seetronic TRUE1 IP65
  • Software Connection: USB-C



Control

  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 5, 8, or 12
  • Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Single unit
    • Power and Current (single unit charging): 43 W, 0.74 A @ 100 V, 60 Hz
    • Power and Current (single unit charging): 42 W, 0.64 A @ 120 V, 60 Hz
    • Power and Current (single unit charging): 42 W, 0.52 A @ 208 V, 60 Hz
    • Power and Current (single unit charging): 42 W, 0.47 A @ 230 V, 50 Hz
    • Power and Current (single unit charging): 42 W, 0.47 A @ 240 V, 50 Hz
  • 6 Pack case
    • 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
    • Power and Current:239W, 3.94A @ 100V
    • Power and Current: 238W, 3.44A @ 120V
    • Power and Current: 235W, 2.48A @ 208V
    • Power and Current: 235W, 2.32A @ 230V
    • Power and Current: 235W, 2.27A @ 240V



Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 1.6 hours
  • Battery Life: 3hr, 5hr, 8hr, 12hr
  • Battery Power: 25.9 V, 4.4 Ah



Certifications / Qualifications

  • CE, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/ wet use (fixture)
  • IP Rating: IP20 (case)
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)



What's Included

  • (6) WELL FIT X
  • (1) 6 slot charging case
  • (1) basic RF controller
  • (1) True 1 power cable
  • (1) QRG



Optional Accessories
